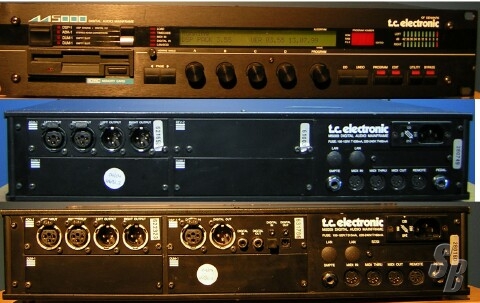

TC ELECTRONIC M5000 (96?) (S#: #280160 #280749) GOOD (7-8)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on January 16, 2017 - Viewed 191 times

M5000 - DIGITAL AUDIOMAINFRAME... THE ULTIMATE AUDIO PROCESSING PLATFORM

THE M5000 DIGITAL AUDIO MAINFRAME IS UNLIKE ANY OTHER EFFECTS PROCESSOR YOU HAVE EVER SEEN. BY COMBINING TC DARC™ TECHNOLOGY WITH THE SKILLS OF THE BEST SIGNAL PROCESSING SOFTWARE ENGINEERS AROUND THE WORLD, WE HAVE CREATED THE PERFECT MIX OF EFFECTS YOU HAVE ACCESS TO IN THE M5000 TODAY.

WHAT YOU SEE IS NOT WHAT YOU GET - YOU GET MORE! THE UNIQUE DESIGN OF THE M5000 HARDWARE PLATFORM ALLOWS FOR FUTURE UPGRADING OF BOTH THE SOFTWARE AND HARDWARE ASPECTS. IT WILL FAR OUTLAST ANY OTHER SIGNAL PROCESSOR YOU OWN OR CAN BUY TODAY.

OPERATING THE M5000 IS A BREEZE AND UPGRADING IT COULDN'T BE SIMPLER. ALL M5000 OWNERS RECEIVE REGULAR, EASY TO INSTALL, SOFTWARE UPGRADES -FEATURING THE VERY LATEST STATE-OF-THE-ART EFFECTS. ADD TO THIS HARDWARE UPGRADES LIKE THE IMPRESSIVE ATAC REMOTE CONTROLLER AND YOU HAVE A PACKAGE THAT IS UNBEATABLE.

TO SOME IT MAY LOOK LIKE ANY OTHER EFFECTS PROCESSOR - BUT YOU KNOW BETTER

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS
MAX. INPUT LEVEL

@ -8 DB GAIN, + 21.8 DBU
@ 0 DB GAIN, + 14.8 DBU
@ 12 DB GAIN, + 2.8 DBU

INPUT IMPEDANCE: 20 KOHM, ELECTRONICALLY BALANCED

INPUT GAIN: +/-12 DB

INPUT CMRR: DC - 1 KHZ, > 60´
1 KHZ - 20 KHZ, > 40 DB

MAX. OUTPUT LEVEL: +20,8 DBU

OUTPUT SIGNAL BALANCE: > 40 DB @ 1 KHZ (BBC METHOD)

OUTPUT IMPEDANCE: 100 OHM, ELECTRONICALLY BALANCED

OUTPUT GAIN: -18 DB TO + 12 DB

FREQUENCY RESPONSE: 10-22 KHZ, +0 -1 DB, FS=48.0KHZ

THD: < 0.01% @ 1 KHZ, + 10 DBU

IMD: < 0.01% @ 1 KHz, + 10 dBu

Dynamic Range: > 100 DB (ADA-2)
> 98 DB (ADA-1)

CROSSTALK: < -80 DB @ 1 KHZ

GROUP DELAY LINEARITY: < 5 ΜS

PHASE LINEARITY: BETTER THAN 5

A TO D CONVERSION

DELTA SIGMA 20 BIT 64X OVERSAMPLING
18BIT (ADA-1) 64X OVERSAMPLING
18BIT (ADA-1) 64X OVERSAMPLING

D TO A CONVERSION: LINEAR 20BIT 8X OVERSAMPLING

SAMPLING RATE: 48.0 KHZ, 44.1 KHZ, 32.0 KHZ

ENVIRONMENT

OPERATING, 0° C TO +50° C
STORAGE, -20° C TO +60°

POWER REQUIREMENTS: SELECTABLE 100/120/220/240V
50-60HZ, 20 TO 50 WATTS
50-60HZ, 20 TO 50 WATTS

DIMENSIONS: 3 1/2 X 19 X 12 INCHES

FINISH: BLACK ANODIZED ALUMINUM FACE PLATE
PAINTED AND PLATED STEEL CHASSIS

NET WEIGHT: 19 LBS. (8.6KG)
