YAMAHA AD8HR (2005) (S#: TBD) SUPERB (8-9)
[PRICED PER UNIT - 5 AVAILABLE AT TIME OF LISTING]
Listing last update on June 11, 2007 - Viewed 88 times

DESCRIPTION: YAMAHA AD8HR (2005) (S#: TBD) SUPERB (8-9)

FEATURES: PRISTINE REMOTE-CONTROLLABLE 24 BIT/96KHZ PREAMPLIFIERS AND A/D CONVERTERS. THESE UNITS ARE FULLY COMPATIBLE WITH THE YAMAHA PM5D, DM2000 AND DM1000.

YAMAHA CHOSE THE SAME PREAMPS USED IN THE STATE-OF-THE-ART PM5000 ANALOG MIXING CONSOLE FOR THE AD8HR'S EIGHT MICROPHONE PREAMPLIFIERS. ONLY THE FINEST PARTS AVAILABLE HAVE BEEN SELECTED AND IMPLEMENTED TO ACHIEVE IMMACULATE REPRODUCTION BACKED UP BY 96-KHZ DIGITAL PROCESSING.

PACKAGED IN A SPACE-SAVING 1U UNIT, THE AD8HR BOASTS A FULL RANGE OF ANALOG AND DIGITAL I/O CONNECTIONS. AND WITH INTEGRATED HIGH-PASS FILTERS AND PHANTOM POWER SUPPLIES THIS AD CONVERTER FEATURES ALL THE FUNCTIONALITY REQUIRED FOR EFFECTIVE, FLEXIBLE LIVE MIXING. THE FRONT PANEL AND CONTROLS HAVE BEEN DESIGNED FOR SPEEDY OPERATION AND INSTANT IDENTIFICATION THAT CAN BE CRITICAL IN LIVE SITUATIONS. EACH OF THE REAR PANEL'S EIGHT INPUTS FEATURES AN XLR CONNECTOR, AND A PAIR OF D-SUB 25-PIN AES/EBU DIGITAL OUTPUT TERMINALS ARE STANDARD. BNC TERMINALS PROVIDE WORD CLOCK INPUT AND OUTPUT. THE AD8HR COVERS EVERY BASE IN TERMS OF DIGITAL CONNECTIVITY. INPUT SIGNALS CAN BE SEPARATED INTO TWO PARALLEL OUTPUT LINES USING THE TWO D-SUB 25-PIN AES/EBU DIGITAL OUTPUT TERMINALS, ALLOWING ONE TO BE USED FOR FOH AND THE OTHER FOR MONITORING OR RECORDING. IN ADDITION, REMOTE CONTROL CAN BE IMPLEMENTED VIA RS422 OR SWITCHABLE PC/RS422 NINE-PIN TERMINALS.

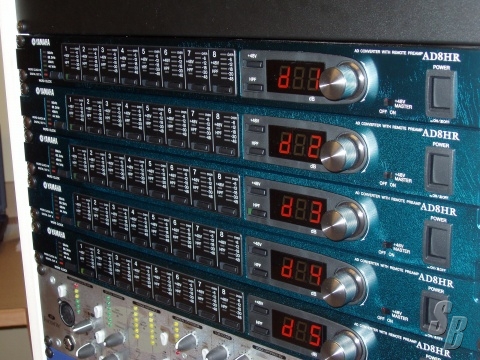

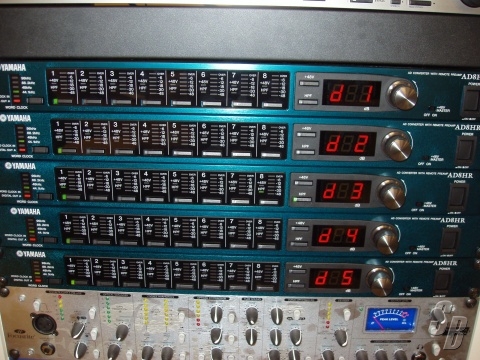

THESE UNITS WERE INSTALLED IN A CHURCH IN 2005 AND HAVE NEVER BEEN MOVED FROM THE RACK INSTALLATION.

EXTRAS: EACH COMES WITH YAMAHA DB25 DIGITAL AES/EBU CABLE.

MODIFICATIONS: THERE HAVE BEEN NO MODIFICATIONS TO THESE UNITS.

HISTORY: THESE HAVE BEEN USED IN A CHURCH FOR RECORDING AND WERE NEVER TOURED OR USED OUTDOORS.

COMMENTS: ALL OF THESE YAMAHA AD8HR'S WORK FLAWLESSLY.

THIS UNIT WAS NEVER TOURED
