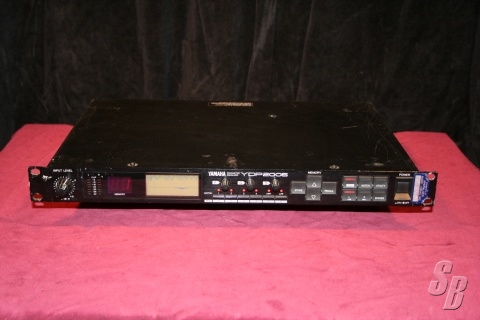

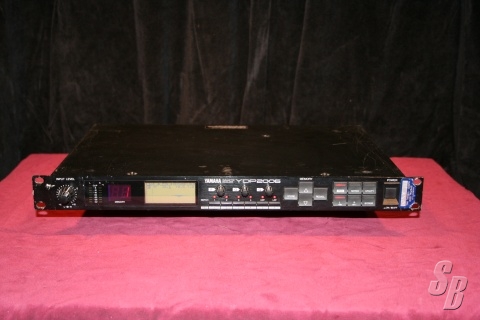

YAMAHA YDP2006 (?) (S#: TBD) GOOD (7-8)
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on August 31, 2010 - Viewed 139 times

YAMAHA YDP2006 (?) (S#: TBD) GOOD (7-8)

FEATURES: PRODUCT INFORMATION FOR MODEL: YDP2006. DESCRIPTION: DIGITAL PARAMETRIC EQUALIZER

20-BIT DIGITAL PARAMETRIC EQUALIZER WITH GRAPHICAL INTERFACE AND OUTSTANDING PERFORMANCE.

MIDI INTERFACE - A MIDI INTERFACE THAT ALLOWS EQ PROGRAMS TO BE RECALLED AND PARAMETER CHANGES TO BE MADE FROM A MIDI SEQUENCER, COMPUTER OR SIMILAR DEVICE. THE MIDI INTERFACE ALSO FEATURES A BULK DUMP FUNCTION THAT ALLOWS THE CONTENTS OF THE MEMORY TO BE TRANSFERRED TO ANY MIDI DEVICE CAPABLE OF RECORDING BULK DATA.

UNMATCHED AUDIO QUALITY - 110DB DYNAMIC RANGE, PRECISE RESPONSE FROM 20 HZ TO 20,000 HZ, AND TOTAL HARMONIC DISTORTION LESS THAN 0.007% (EMPHASIS ON) 20-BIT A/D AND D/A CONVERTORS SAMPLING AT 44.1 KHZ.

A CHOICE OF EQ MODES - THERE IS A CHOICE OF TWO EQ MODES. IN THE STEREO MODE IT OFFERS 2-CHANNELS OF 6-BAND PARAMETRIC EQ WHILE IN THE MONO MODE YOU GET A SINGLE CHANNEL OF 12-BAND PARAMETRIC EQUALIZATION. IN EITHER MODE YOU HAVE +/-12 DB GAIN CONTROL IN EACH BAND, PLUS Q CONTROL RANGING FROM 0.5 TO 10.

LPF, HPF, AND MULTIPLE NOTCH FILTERS - IN THE STEREO EQ MODE, INDEPENDENTLY PROGRAMMABLE HIGH-PASS AND LOW-PASS FILTERS AS WELL AS A GROUP OF FOUR NOTCH FILTERS WITH VARIABLE FREQUENCY AND BANDWIDTH. IN THE MONO MODE THE YDP2006 PROVIDES THE SAME HIGH-PASS AND LOW-PASS FILTERS WITH NO LESS THAN EIGHT PROGRAMMABLE NOTCH FILTERS.

40-PROGRAM MEMORY - THE YDP2006 STORES AND RECALLS UP TO 40 DIFFERENT EQ PROGRAMS AS REQUIRED. YOU CAN RECALL VIA THE FRONT-PANEL KEYS OR THE MIDI INTERFACE OR Y-485 BUS.

INDEPENDENTLY PROGRAMMABLE CHANNEL DELAYS - FOR PHASE ALIGNMENT AND SPEAKER DISTANCE COMPENSATION, EACH CHANNEL PROVIDES A VARIABLE DELAY PARAMETER THAT CAN BE SET ANYWHERE FROM 0 TO 714 MILLISECONDS IN SUB-MILLISECOND STEPS.

EASY PROGRAMMING INTERFACE - A GRAPHIC LCD PANEL IS A GRAPHIC REPRESENTATION OF EQ CURVES, SIMULTANEOUS DISPLAY OF RELATED PARAMETERS, AND COMPREHENSIVE DISPLAY LAYOUTS. ANOTHER FEATURE IS THE PROVISION OF THREE ROTARY ENCODERS FOR DATA ENTRY. IN ADDITION IT HAS A PARAMETER COPY FUNCTION THAT ALLOWS PARAMETERS TO BE COPIED FROM AN EXISTING PROGRAM AND THEN EDITED AS REQUIRED.

RELIABLE BALANCED ANALOG INPUTS AND OUTPUTS - ELECTRONICALLY BALANCED INPUT AND OUTPUTS WITH XLR-TYPE CONNECTORS. VERSATILITY IS PROVIDED BY INDEPENDENT -20/+4 DB LEVEL SELECTORS FOR THE INPUTS AND OUTPUTS.

MULTI-EQUALIZER NETWORK CAPABILITY - UP TO 31 YDP2006 UNITS CAN BE INCLUDED IN THE NETWORK. ALL PARAMETERS CAN BE REMOTELY ACCESSED AND CONTROLLED FROM A SINGLE MASTER YDP2006 UNIT OR A COMPUTER RUNNING YAMAHA QS1 DIGITAL EQUALIZER CONTROL SOFTWARE.

INPUT ATTENUATOR OF DIGITAL DOMAIN

EMPHASIS ON/OFF CONTROL


EXTRAS: NO EXTRAS

MODIFICATIONS: NO MODIFICATIONS

HISTORY: USED IN A VARIETY OF SETTINGS FROM CORPORATE EVENTS TO TOURS

COMMENTS: NO KNOWN PROBLEMS


THIS UNIT WAS TOURED
