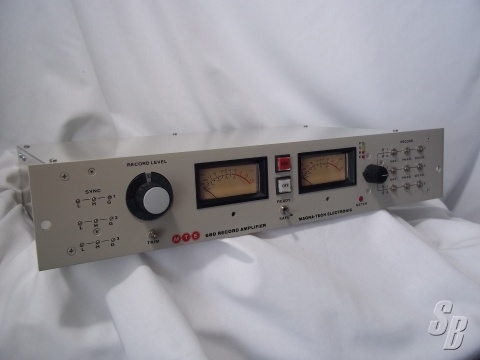

MTE MAGNA-TECH 68D RECORD AMPLIFIER FOR MTE 2000, 4000 AND 10,000 SERIES DUBBERS
[PRICED PER UNIT - 6 AVAILABLE AT TIME OF LISTING]
Listing last update on April 01, 2011 - Viewed 541 times

MAGNATECH 68D (YOM: ?) (S#: 22008-22013) LIKE NEW (9-10)

FEATURES: THE MAGNA TECH 68D RECORD AMPLIFIER PROVIDES MAGNA-TECH RECORDERS WITH OUTSTANDING SETUP SPEED, STABILITY, AND AUDIO PERFORMANCE.

MTE PRODUCTS ARE KNOWN FOR THEIR PURSUIT OF THE HIGHEST QUALITY AUDIO PRODUCTS. MTE MANUFACTURES THE 68D FOR UN-COMPROMISED RECORDING PERFORMANCE APPROACHING THEORETICAL LIMITS. FOR EXAMPLE, THE RECORD HEAD ITSELF IS PART OF A TRUE CONSTANT CURRENT SERVO LOOP, RESULTING IN A RULER FLAT FREQUENCY RESPONSE AND TRULY OUTSTANDING TRANSIENT RESPONSE. THE DESIGN MAXIMIZES HEADROOM AND MINIMIZES NOISE AND DISTORTION FOR EXTREMELY WIDE DYNAMIC RANGE. WHEN COMBINED WITH OUR HIGH PERFORMANCE 69D ELECTRONICS UPGRADE, AND USED WITH DOLBY SR, OVERALL SONIC QUALITY RIVALS OR EXCEEDS THE MOST EXPENSIVE DIGITAL SYSTEMS. THE SOUND IS EXCEPTIONALLY CLEAN AND CLEAR.

MTE SERIES 2000, 4000 & 10,000 SPECIFICATIONS

ELECTRONIC PERFORMANCE

FREQUENCY RESPONSE -3D AT 0.6HZ AND 100KHZ

AUDIO DISTORTION <0.02% THD AT +20DB RE 185NW/M

HEADROOM +26DB

NOISE: 15DB BELOW TAPE NOISE

HF EQUALIZATION VARIABLE FROM –2DB TO +13DB AT 10KHZ

LF EQUALIZATION FLAT, +3DB QT 50HZ, OR 3DB AT 100HZ,INTENAL

JUMPER SELECTABLE

BIAS: 100KHZ WITH <0.01% THD

MTE "BIAS SYNC" VIA REMOTE CONNECTOR

BIAS STABILITY/REPEATABILITY +/-0.1DB MAX OVER 70 DEGREES F TO 100 DEGREES F

RECORD HEAD: MTE LONG LIFE HEAD

ERASE HEAD: MTE LONG LIFE HEAD

TIMING STABILITY/REPEATABILITY +/- 0.001 MAX OVER 70 DEGREES F TO 100 DEGREES AMBIENT

POWER REQUIREMENT: 28+/-0.5 VDC AT 350 MA MAXIMUM (220M/A IDLE OR 400M/A MAXIMUM (280MA IDLE) FOR 68D/S





PHYSICAL DATA

OVERALL DIMENSIONS 3.5" H X 19" W X 12.5" D

(8.9 X 48 X 32 CM)

RACK MOUNTS VIA SINGLE SCREW EACH SIDE

WEIGHT 14 LBS. (6.4 KG)

EXTRAS: NO

MODIFICATIONS: NO

HISTORY: WDW FEATURE ANIMATION STUDIOS. USED IN RECORDING FEATURE ANIMATIONS ON THE MTE SERIES FILM DUBBERS.

COMMENTS: PULLED FROM A WORKING MTE DUBBING ARRAY.

THIS UNIT WAS NEVER TOURED
