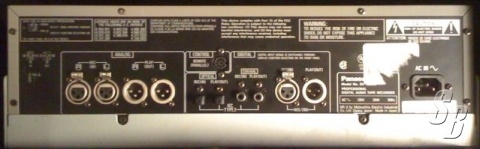

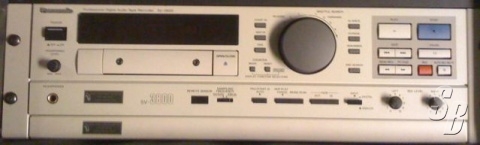

PANASONIC SV-3800 DAT
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on January 24, 2013 - Viewed 248 times

PANASONIC SV-3800 (YOM: ?) (S#: C8TA00097) SUPERB (8-9)

FEATURES: FEATURES:
FRONT PANEL SHUTTLE WHEEL
0.5–15X SPEED RANGE
IR REMOTE CONTROL
4-STAGE, 1-BIT DELTA-SIGMA A-TO-D CONVERTERS
20-BIT EQUIVALENT D-TO-A CONVERTERS
PROGRAM, ABSOLUTE AND TIME-REMAINING DISPLAYS
PUSHBUTTON SELECTION OF 44.1KHZ/48KHZ SAMPLING RATES VIA EITHER ANALOG OR DIGITAL INPUTS
PUSHBUTTON FADE-IN AND FADE-OUT FUNCTIONS
BALANCED INPUTS AND OUTPUTS VIA XL-TYPE CONNECTOR WITH CHOICE OF -10DBU OR +4DBM OUTPUT LEVELS
UP TO 400X FAST FORWARD/REWIND AND SEARCH SPEEDS TO PROVIDE HIGH-SPEED ACCESS TO ANY POINT ON A 2-HOUR DAT TAPE WITHIN 27 SECONDS
SINGLE PROGRAM AND SKIP PLAY FEATURE IS HANDY FOR POST-PRODUCTION WORK
AUTOMATICALLY CLOCKS TO INCOMING FREQUENCIES OF 32KHZ, 44.1KHZ OR 48KHZ

EXTRAS: IEC, RACK MOUNT CHASSIS

MODIFICATIONS: NONE

HISTORY: TAPE DUPLICATIONS, AND TRANSFERS

COMMENTS: FRONT-PANEL SHUTTLE WHEEL; 0.5-15X SPEED RANGE; IR REMOTE CONTROL; 4 STAGE, 1-BIT DELTA-SIGMA A-TO-D CONVERTERS; 20-BIT EQUIVALENT D-TO-A CONVERTERS; PROGRAM, ABSOLUTE AND TIME-REMAINING DISPLAYS; PUSHBUTTON SELECTION OF 44.1KHZ/48KHZ SAMPLING RATES VIA EITHER ANALOG OR DIGITAL INPUTS; PUSHBUTTON FADE-IN AND FADE-OUT FUNCTIONS; BALANCED INPUTS AND OUTPUTS VIA XL TYPE; CONNECTOR WITH CHOICE OF -10DBU OR +4DBM OUTPUT LEVELS; UP TO 400X FAST FORWARD/REWIND AND SEARCH SPEEDS TO PROVIDE HIGH-SPEED ACCESS TO ANY POINT ON A 2-HOUR DAT TAPE WITHIN 27 SECONDS; SINGLE PROGRAM AND SKIP PLAY FEATURE IS HANDY FOR POST PRODUCTION WORK; THE SV-3800 AUTOMATICALLY CLOCKS TO INCOMING FREQUENCIES OF 32KHZ, 44.1KHZ OR 48KHZ.

THIS UNIT WAS NEVER TOURED
