AVIOM A-16II 16-CHANNEL PERSONAL MIXER (6) , AN-16I MODULE FULL SYSTEM
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on February 12, 2013 - Viewed 384 times

AVIOM AVIOM (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: THIS IS FOR A COMPLETE 6 PERSON AVIOM PERSONAL MONITORING SYSTEM, WHICH INCLUDES THE PERSONAL ON-STAGE MIXERS, THE AN-16I DIGITAL RACKED MODULE, AND POWER UP CABLES. EACH PERSONAL MIXER DAISY-CHAINS VIA NETWORK CABLE TO DISTRIBUTE POWER, SO CAT5 CABLES WILL BE INCLUDED IF REQUESTED.

16-CHANNEL STEREO MIXER WITH FULLY ADJUSTABLE PAN PER CHANNEL
SIXTEEN PRESET LOCATIONS FOR STORING CUSTOM MIXES
CHANNEL SOLO, MUTE, AND GROUP FUNCTIONS
GLOBAL TRIM FOR REDUCING ALL CHANNEL VOLUMES
INTUITIVE INTERFACE WITH NO MENUS OR SCREENS TO NAVIGATE
MOUNTS EASILY ON A MIC STAND WITH THE OPTIONAL MT-1 MIC STAND MOUNT

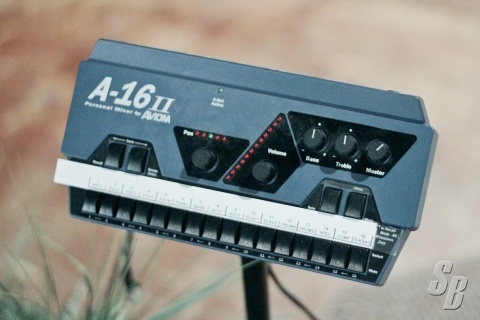

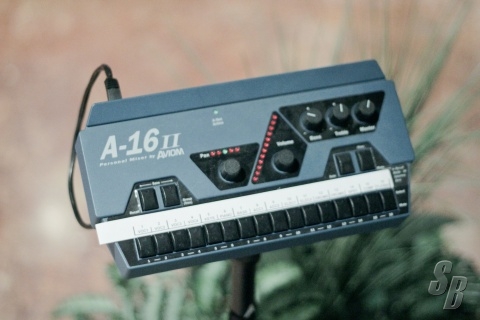

THE A-16II ALLOWS INDIVIDUAL PERFORMERS TO CREATE CUSTOM MONITOR MIXES TAILORED TO THEIR INDIVIDUAL NEEDS. DESIGNED FOR USE IN LIVE PERFORMANCE OR IN THE STUDIO, THE A-16II PERSONAL MIXER GIVES EACH PERFORMER CONTROL OVER CHANNEL VOLUME, GROUPING, PAN, STEREO SPREAD, AND MASTER VOLUME AND TONE. EVERY PERSONAL MIXER IN A SYSTEM CAN CREATE A UNIQUE MONITOR MIX FOR A PERFORMER. USERS CAN SAVE AND RECALL UP TO SIXTEEN CUSTOM MIXES AS PRESETS IN THEIR PERSONAL MIXER.

STEREO OUTPUT FOR WIRED OR WIRELESS
THE STEREO OUTPUT FROM THE A-16II CAN BE USED TO DRIVE WIRED OR WIRELESS IN-THE-EAR MONITORS, HEADPHONES, POWERED FLOOR WEDGES, AN AMPLIFIER, OR SPOT MONITORS.

THE A-16II PERSONAL MIXER IS FULLY COMPATIBLE WITH ALL PRO16® SERIES PRODUCTS, INCLUDING AVIOM'S DIGITAL INTERFACE CARD FOR YAMAHA® DIGITAL MIXING CONSOLES. SUPPORT FOR AVIOM MONITOR MIXING IS AVAILABLE IN THE FORM OF CONSOLE INTERFACE CARDS FROM AN EVER- INCREASING LIST OF DIGITAL CONSOLE MANUFACTURERS INCLUDING DIGIDESIGN®, SOUNDCRAFT®, INNOVASON®, ETC. LOOK FOR THE A-NET ACTIVE™ LOGO, AND SEE OUR PARTNERS PAGE FOR ADDITIONAL INFORMATION.

DAISY-CHAIN AND POWER
MIXERS CAN BE DAISY-CHAINED OR CONNECTED IN PARALLEL USING AN A-NET DISTRIBUTOR. PARALLEL CONNECTIONS ALSO ALLOW POWER TO BE SUPPLIED TO THE MIXERS OVER THE CAT-5E CABLE. AS WITH ALL PRO16 SERIES PRODUCTS, CAT-5E CABLE RUNS OF UP TO 500 FEET (150 METERS) ARE POSSIBLE BETWEEN DEVICES, AND THERE IS NO LIMIT TO THE NUMBER OF MIXERS IN A SYSTEM.

AN16/IINPUT MODULE

SIXTEEN BALANCED AUDIO INPUTS (1/4-IN TRS CONNECTORS)
SIXTEEN BALANCED THRU CONNECTORS (TRS)
A-NET OUT AND A-NET EXPANSION NETWORK CONNECTIONS (RJ45)
STEREO LINK SWITCHES FOR EACH CHANNEL PAIR
FOUR-POSITION GAIN SWITCHES (+22, +4, 0, -10DB)
SIGNAL PRESENT AND CLIP LEDS PER CHANNEL

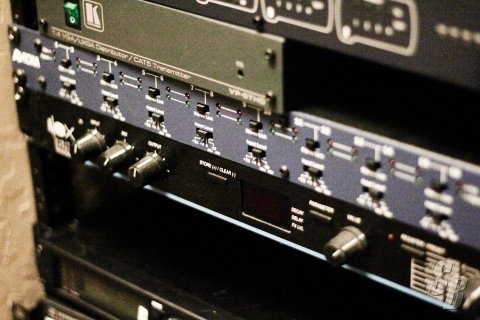

THE AN-16/I PROVIDES 16 BALANCED LINE-LEVEL INPUTS INTO A PRO16® SYSTEM. AUDIO IS CONVERTED TO DIGITAL AND TRANSMITTED VIA A-NET®, UP TO 500FT/150M OVER CAT-5E. A DEDICATED AUDIO THRU IS AVAILABLE FOR EACH INPUT CHANNEL, ALLOWING THE AN-16/I TO BE SEAMLESSLY INSERTED INTO AN EXISTING AUDIO SIGNAL PATH.

MONITOR SYSTEM BUILDING BLOCKS
PLACED AT A FRONT-OF-HOUSE OR MONITOR CONSOLE, THE AN-16/I CAN BE USED AS A HEAD-END FOR A PRO16 MONITOR MIXING SYSTEM. AUDIO FROM THE CONSOLE—ANY COMBINATION OF CHANNEL INSERTS, DIRECT OUTS, SUBMIXES, AUXES, OR GROUPS—IS CONNECTED TO THE TRS INPUT CHANNELS ON THE AN-16/I. THE A-NET OUT ON THE AN-16/I IS CONNECTED TO THE A-NET IN OF A PRO16 PERSONAL MIXER OR A-NET DISTRIBUTOR.

DIGITAL SNAKES AND AUDIO NETWORKS
USED IN CONJUNCTION WITH THE AN-16/O OUTPUT MODULE, THE AN-16/I CAN ALSO BE USED IN A DIGITAL SNAKE AS AN INPUT PATH FOR MAIN RETURN SIGNALS FROM FRONT-OF- HOUSE. THE BUILT-IN A-NET EXPANSION JACK ALLOWS TWO 16-CHANNEL A-NET STREAMS TO BE COMBINED ONTO A SINGLE CABLE (32X0 OR 16X16), AND THE AN-16SBR SYSTEM BRIDGE CAN BE USED TO COMBINE UP TO FOUR 16-CHANNEL STREAMS ONTO A SINGLE CABLE IN A VARIETY OF BIDIRECTIONAL CONFIGURATIONS.

THE FLEXIBILITY AND SIMPLICITY OF THE PRO16 SERIES ALLOWS COMPLEX AUDIO DISTRIBUTION SYSTEMS AND SNAKES TO BE CREATED QUICKLY AND COST-EFFECTIVELY.



EXTRAS: CAT5 CABLES (IF REQUESTED) AND POWER CABLE FOR AN16/I.

MODIFICATIONS: N/A

HISTORY: IN A STATIC CHURCH ENVIRONMENT, USED FOR A FEW MONTHS AND HAVE WORKED OUT GREAT! MOVING TO DIGITAL CONSOLE SO WE NO LONGER NEED THESE.

COMMENTS: NONE, IN GREAT SHAPE, HAVE ALWAYS FUNCTIONED PERFECTLY.

THIS UNIT WAS NEVER TOURED
