For Sale: MC7.1 - SURROUND MONITOR CONTROLLER
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on September 12, 2018 - Viewed 201 times

MC7.1 - 20 INPUT SOURCE 7.1/5.1 CONTROLLER

MULTIPLE SOURCE STUDIO MONITOR CONTROLLER FOR 7.1/5.1 SURROUND & STEREO APPLICATIONS

DESCRIPTION:

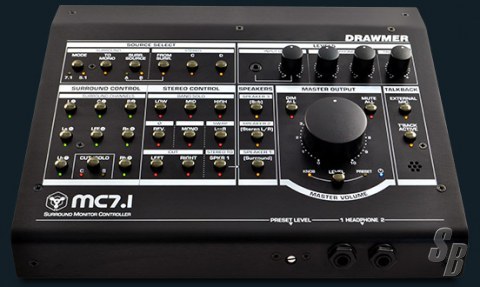

THE DRAWMER MC7.1 SURROUND MONITOR CONTROLLER IS A COMBINED 7.1/5.1 AND STEREO MONITOR CONTROLLER. DESIGNED TO PROVIDE ALL THE MIX CHECKING FEATURES REQUIRED FOR SURROUND RECORDINGS WITHOUT COMPROMISING ON THOSE USED IN STEREO MONITORING. IT HAS THE SAME PRISTINE & TRANSPARENT DESIGN AS OTHERS FROM THE DRAWMER MONITOR CONTROLLER PEDIGREE, WITH A RUGGED DESK TOP "WEDGE" FORM FACTOR AS USED IN THE POPULAR MC3.1.

FEATURES:

• PRISTINE, ULTRA LOW NOISE & TRANSPARENT CIRCUIT DESIGN GIVES YOU AN ACCURATE REPRESENTATION OF YOUR MIX WHETHER IT BE SURROUND OR STEREO.

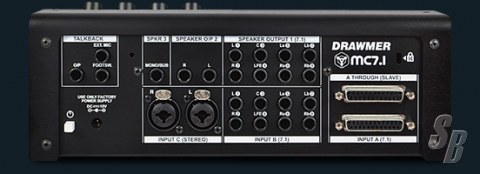

• THERE ARE A TOTAL OF 20 INPUT SOURCES. THESE INCLUDE TWO SEPARATE 7.1 INPUTS (ONE VIA BALANCED JACKS AND ONE VIA 25 PIN D-SUB) WITH A THROUGH OUTPUT TO SEND TO A MULTITRACK RECORDER, FOR EXAMPLE. A STEREO INPUT VIA NEUTRIK COMBIJACKS, AND A TOP PANEL 3.5MM AUX INPUT & LEVEL CONTROL FOR CONNECTING MP3 PLAYERS, SMARTPHONES OR TABLETS ETC.
• 3X SETS OF SPEAKER OUTPUTS. ONE 7.1 (OR 8 SPEAKERS IN ANY CONFIGURATION), ONE STEREO LEFT/RIGHT PAIR, AND ONE MONO/SUB. EACH CAN BE SWITCHED INDIVIDUALLY & SIMULTANEOUSLY OR GIVE A/B COMPARISONS. ALL ELEVEN OUTPUTS HAVE LEVEL TRIMS TO PROVIDE PRECISE CHANNEL MATCHING AND EASE OF CALIBRATION.
• EACH OF THE EIGHT 7.1 SPEAKERS CAN BE CUT OR SOLOED INDIVIDUALLY.
• 7.1 CHANNELS CAN BE MIXED DOWN TO 5.1, STEREO AND MONO, THOUGH ANY CONFIGURATION OF UP TO 8 MONITORS SHOULD BE POSSIBLE DEPENDING ON THE SOURCE AND THE SPEAKER LAYOUT.
• STEREO OUTPUTS (INCLUDING THOSE MIXED DOWN FROM SURROUND) CAN BE MONITORED VIA THE MAIN STEREO SPEAKER OUTPUTS OR THE FL AND FR FROM THE SURROUND SPEAKERS.
• WHEN IN STEREO OPERATION COMPREHENSIVE MIX CHECKING FACILITIES INCLUDING LOW, MID, HIGH SOLO; DIM; L/R MUTE; PHASE REVERSE AND MORE, HELP CHECK EVERY ASPECT OF YOUR MIX & PROVIDE ULTIMATE CONTROL.
• VOLUME CAN BE SET VIA THE VARIABLE FRONT PANEL KNOB OR A PRESET CONTROL. EACH HAS EXCELLENT CHANNEL MATCHING AND SMOOTH FEEL.
• 2X HEADPHONE AMPLIFIERS WITH INDIVIDUAL LEVEL CONTROL.
• BUILT IN TALKBACK WITH LEVEL CONTROL, INTERNAL OR EXTERNAL MICROPHONE, SWITCHING VIA DESKTOP OR FOOTSWITCH, & INTERNAL ROUTING TO HEADPHONES AND ALSO A MONO OUTPUT JACK.
• THE MC7.1 IS ALL ANALOGUE SO WON’T NEED TO BE REBOOTED DUE TO SOFTWARE CRASHES, AND DOESN’T REQUIRE FIRMWARE UPDATES.
• DESKTOP 'WEDGE' FORM FACTOR WITH A RUGGED STEEL CHASSIS AND A KENSINGTON SECURITY SLOT FOR ADDED PROTECTION.
