WESTLAKE BBSM-10 STUDIO MONITOR PAIR
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on November 15, 2011 - Viewed 604 times

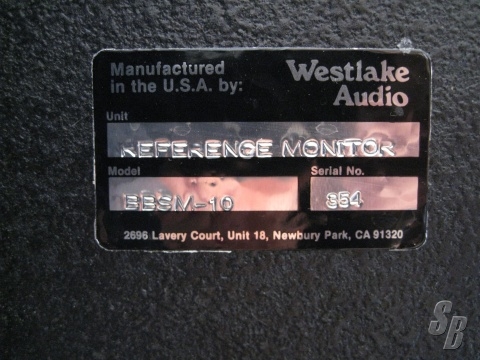

WESTLAKE BBSM-10 (YOM: ?) (S#: 353/354) GOOD (7-8)

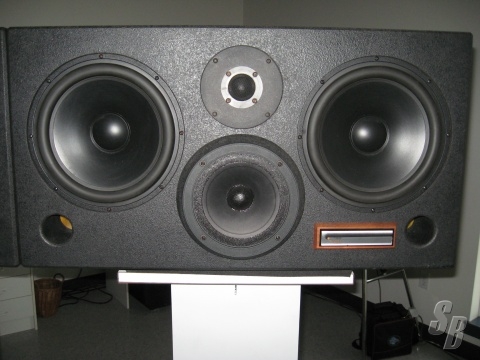

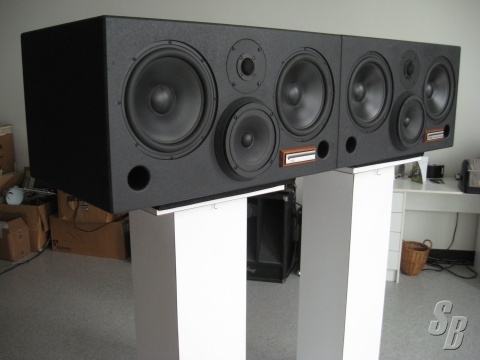

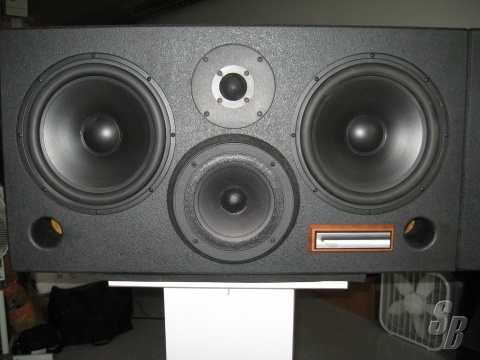

FEATURES: THE BBSM-10 IS A 3-WAY, MEDIUM POWER, PHASE COHERENT MONITOR WITH AN INTERNAL HIGH LEVEL
CROSSOVER. GREAT DETAIL COMBINED WITH LOW DISTORTION MAKES THIS THE PERFECT CHOICE.
THESE USED UNITS ARE SAID TO BE THE MODEL PREFERRED BY BRUCE SWEDIEN FOR HIS PRODUCTION WORK. UTILITY BLACK FINISH, 2

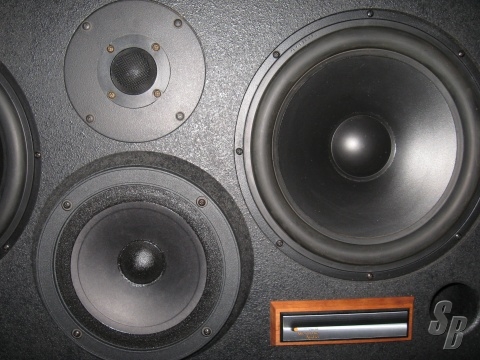

TEN INCH WOOFERS, 6.5 INCH MIDRANGE, 1.25 INCH SOFT DOME TWEETER. UNITS ARE TIME ALIGNED IN A HEAVILY
CONSTRUCTED AND DAMPED ENCLOSURE. WIRING PERMITS BIAMPING. THEY ARE DESIGNED FOR A HORIZONTAL
ORIENTATION AS MID FIELD STUDIO MONITORS. HAND MADE IN THE L.A. AREA. I SUGGEST 100W RMS PER CHANNEL MINIMUM
AMP WITH THESE. CAN BE USED WITH 250 W RMS PER CHANNEL AMP.

SPECIFICATIONS
BBSM-10 3-WAY MIDFIELD / MAIN MONITOR
WOOFER 2 X 10"
MIDRANGE 1 X 6.5"
TWEETER 1 X 1.25"
FREQUENCY RESPONSE ( +/- 3DB ) 45HZ-20KHZ
POWER IEC SHORT/LONG 115W/360W
SENSITIVITY @ 1M/2.83V 92DB
CROSSOVER FREQUENCY 600HZ / 4KHZ
IMPEDANCE NOMINAL/MINIMUM 4/2
INPUTS HEAVY DUTY BARRIER STRIP
DIMENSIONS: H X W X D (INCH) 16 X 30 X 21.5
DIMENSIONS: H X W X D (CM) 40.6 X 76.2 X 54.6
WEIGHT: LBS. / KG. 150 LBS. / 68 KGS.
FINISH BLACK UTILITY PAINT

EXTRAS: ORIGINAL BARRIER STRIPS CONNECTORS INCLUDED

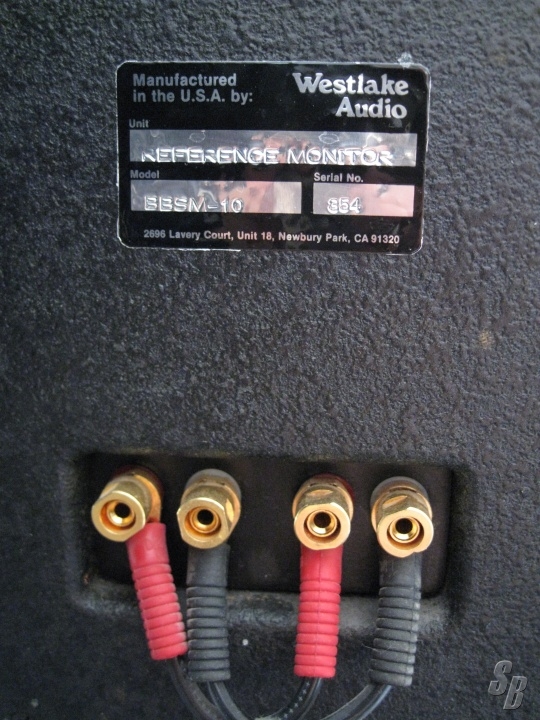

MODIFICATIONS: ORIGINAL BARRIER STRIPS UPGRADED WITH GOLD PLATED BANANA LUG CONNECTOR ARRAY. MIDRANGE DRIVERS REPLACED IN APRIL. THESE SHOULD BE CHECKED AND POSSIBLY REPLACED EVERY FIVE YEARS. (FOAM SURROUND HAS LIMITED LIFESPAN)

HISTORY: USED IN A RECORDING STUDIO AS RECORDING AND MIXING MONITORS IN A NON-SMOKING ENVIRONMENT.

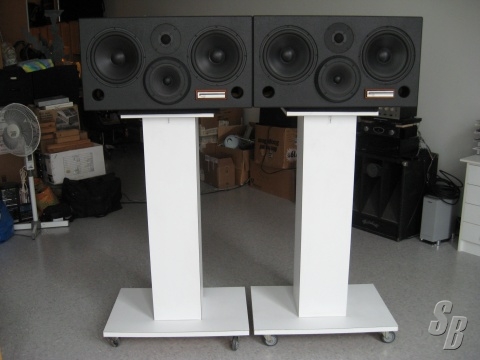

COMMENTS: SPEAKER STANDS ARE NOT INCLUDED. IF YOU ARE INTERESTED IN THESE, I MAY CONSIDER SELLING THEM FOR AN ADDITIONAL $250. FOR BOTH. THESE WERE CUSTOM MADE OF HEAVY FLOORING PLYWOOD WITH LAMINATE AND CASTERS. WEIGH NEAR 100 LBS EACH, SO SHIPPING MAY BE HIGH VS WORTH OF STANDS.

THIS UNIT WAS NEVER TOURED
