For Sale: ADC 48 POINT PATCH PANELS PPA3-18MKIINO: LOT OF 15 PANELS
[PRICED PER UNIT - 15 AVAILABLE AT TIME OF LISTING]
Listing last update on October 12, 2018 - Viewed 305 times

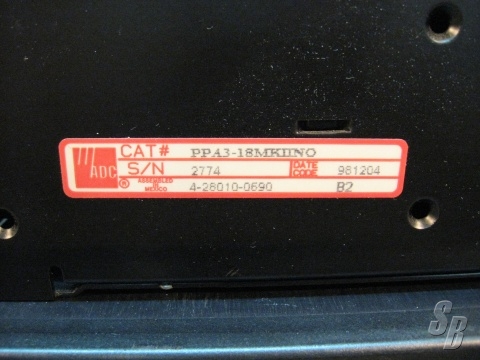

ADC PPA3-18MKIINO (YOM: ?) (S#: 2774, OTHERS) GOOD (7-8)

FEATURES: THE ADC MODEL PPA3-18MKIINO , THESE ARE DESIGNED FOR PROFESSIONAL STUDIOS USING BALANCED (OR UNBALANCED) WIRING. THE PANELS TERMINATE IN ADC PUNCH DOWN PANELS WITH ALL OF THE NORMALS BROUGHT OUT. THIS ALLOWS FOR ANY TYPE OF NORMALLING REQUIRED; FULL, HALF, NONE OR WIRED MULTS AT ANY POSITION ALONG THE PANEL. GROUNDS ARE ISOLATED ON THESE PANELS.

THESE PANELS HAVE BEEN CAREFULLY REMOVED FROM SERVICE OR IN SOME CASES, STORAGE, AND ARE IN VERY GOOD PHYSICAL AND COSMETIC CONDITION. IT'S EASY TO DAMAGE THE PUNCH DOWN TERMINALS BY JUST CARELESSLY RIPPING THE OLD WIRING OFF.

THESE PANELS LIST FOR MORE THAN $995. SAVE A BUNDLE ON YOUR STUDIO OR REMOTE TRUCK INSTALLATION WITH THESE PANELS.

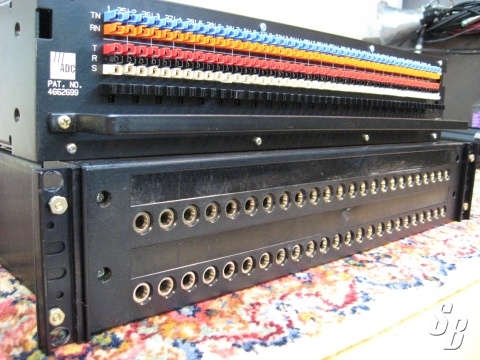

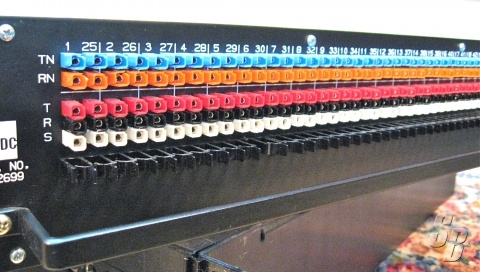

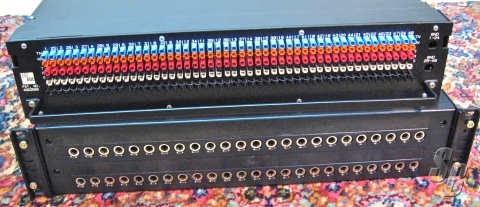

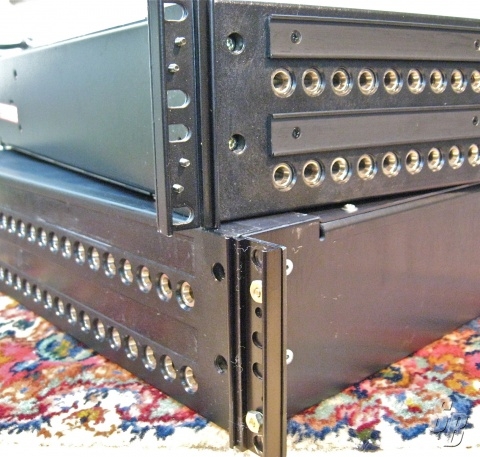

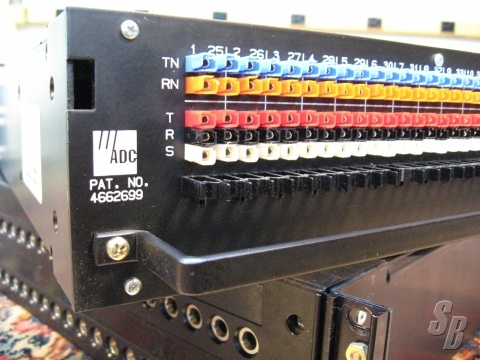

THE PANELS ARE 2 RACK UNITS HIGH, WITH A TOTAL OF 48 JACKS IN 2 ROWS OF 24. THE PUNCH PANELS ARE ON THE REAR OF AN 18 INCH DEEP CLOSED BLACK METAL CASE. THIS PROTECTS THE JACK FIELD AND WIRING FROM DUST AND PHYSICAL DAMAGE. ALL NORMALS ARE BROUGHT OUT ON QCP TERMINALS WITH A TIE BAR.

EXTRAS: NO

MODIFICATIONS: GREAT CARE IN REMOVING ANY PUNCHDOWN PANEL IS IMPORTANT IN ORDER TO PREVENT ANY DAMAGE TO THE QCP TERMINALS. THESE PANELS WERE INSTALLED AND REMOVED BY PROFESSIONAL AUDIO ENGINEERS WITH DECADES IN THE BUSINESS.

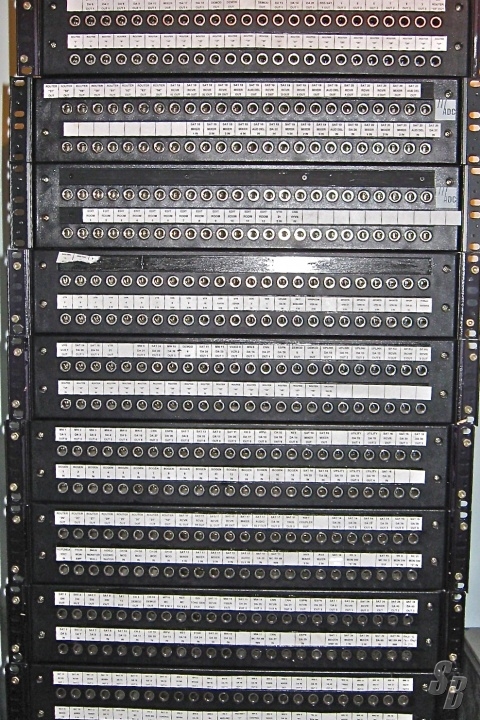

HISTORY: THESE PANELS WERE REMOVED FROM SEVERAL FIXED INSTALLATIONS: 2 CORPORATE TV STUDIOS, A SMALL COLLEGE VOICE OVER STUDIO AND A TV EDIT SUITE. NONE HAVE EVER TRAVELED TO THE BEST OF OUR KNOWLEDGE.

COMMENTS: ALTHOUGH WE DON'T GUARANTEE PATCH PANELS, WE KNOW THE HISTORY OF THIS LOT AND HAVE HAD NO PROBLEMS WITH ANY OF THE PANELS SOLD TO DATE. THERE MAY BE A FEW TERMINALS WITH DISTORTED PLASTIC SLEEVES, BUT THE METAL PORTIONS OF THE TERMINALS ARE IN VERY GOOD CONDITION.

THIS UNIT WAS NEVER TOURED
