MEDIAMATRIX CAB 16O
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on November 05, 2012 - Viewed 509 times

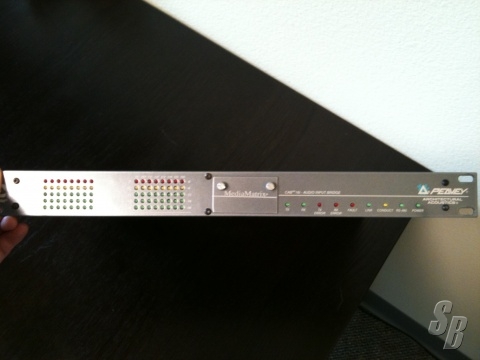

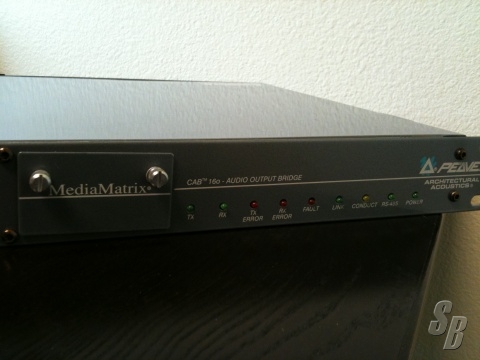

MEDIAMATRIX CAB 16O INPUT MODULE W/COBRANET (YOM:2009?)- SERIAL#S 51751182, 51741444

THE CAB 16I AND CAB16O, RESPECTIVELY, ARE SIXTEEN LINE-LEVEL INPUT AND OUTPUT MEDIAMATRIXï½® GATEWAYS ONTO AND OFF OF A 100BASET ETHERNET NETWORK EMPLOYING COBRANET PROPRIETARY PROTOCOL TO ENSURE SEAMLESS, ERROR-FREE TRANSMISSION OF HIGH-QUALITY REAL-TIME AUDIO WITHOUT DROPOUTS OR LOSSY COMPRESSION. THE CAB 16O DOWNLOADS AND RECONSTRUCTS AUDIO DATA FROM THE COBRANET ETHERNET NETWORK 16 LINE-LEVEL CHANNEL OUTPUTS. MAXIMUM OUTPUT LEVELS OF +6, +12, +18, AND +24 DBU AND VOLUME FROM ZERO TO FULL-SCALE IN 1/2 DB STEPS ARE SOFTWARE CONTROLLABLE THROUGH THE MEDIAMATRIX.

PRODUCT FEATURES
FOUR 16-POSITION FRONT PANEL ROTARY SWITCHES FOR UNIT ID
FRONT PANEL LEVEL METER FOR EACH CHANNEL
24-BIT QUANTIZATION 64X OVERSAMPLING
48 KHZ SAMPLE-RATE
EIGHT 0-10 VDC CONTROL VOLTAGE INPUTS (CAB 8 SERIES)
EIGHT 5 V TTL OUTPUTS (CAB 8 SERIES)
EIGHT N/O-N/C RELAY (CAB 8 SERIES)
SUPPORTS RS-485 BRIDGING
WORD CLOCK FOR SYSTEM REDUNDANCY 釘UDDY LINK
ADVANCED AUDIO ROUTING WHEN INTEGRATED WITH MEDIAMATRIX
UNIVERSAL POWER SUPPLY (100-240V 50-60 HZ)

PRODUCT SPECIFICATIONS
SIXTEEN CHANNELS OF LINE-LEVEL AUDIO TRANSMITTED FROM AN ETHERNET NETWORK USING COBRANET PROTOCOL SAMPLED AT 48 KHZ
D/A CONVERTERS ARE 24-BIT, 128 TIMES OVERSAMPLING, USING DELTA-SIGMA MODULATION
LOW NOISE/WIDE DYNAMIC RANGE 110 DB TYPICAL (CAB 16O).
A NON-ETHERNET RS-485 CONTROL PORT WITH TWO MULTI-DROP CONNECTIONS.
TWO WORD CLOCK LINKING CONNECTORS THAT ENABLE AUTO-SWITCH-OVER TO A SECOND UNIT, SHOULD ONE UNIT FAIL.
ONE RACK-UNIT (1-3/4")
FAN-COOLEDCHASSIS.
