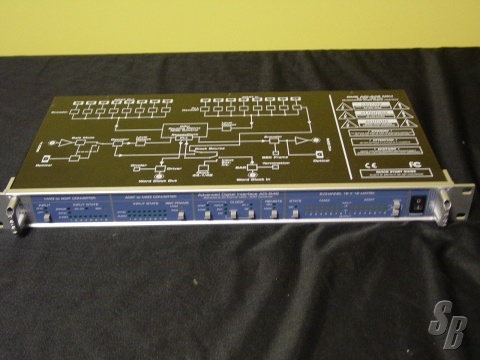

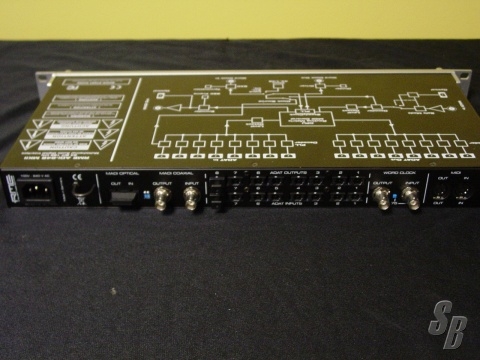

RME ADI648 (YOM: 2008) (S#: TBD) LIKE NEW (9-10)

Listing last update on November 15, 2011 - Viewed 399 times

RME ADI648 (YOM: 2008) (S#: TBD) LIKE NEW (9-10)

FEATURES: THIS MULTICHANNEL AUDIO DIGITAL INTERFACE OFFERS FORMAT CONVERSION FROM MADI TO ADAT AND VICE-VERSA. THE ADI-648 THUS COMBINES THE WORLD'S MOST SUCCESSFUL MULTI-CHANNEL INTERFACE WITH THE PROFESSIONALS' EXCLUSIVE HIGH-END INTERFACE. MADI OFFERS 64 CHANNELS OF 24 BIT AUDIO AT UP TO 48 KHZ SAMPLE RATE, AND 32 CHANNELS AT UP TO 96 KHZ. TRANSMISSION HAPPENS OVER A SINGLE LINE, EITHER COAXIAL (BNC) OR FIBER OPTIC (NETWORK). IN BOTH CASES THE CABLE LENGTH CAN BE MORE THAN 100 METERS.

THE MADI CHANNELS ARE TRANSFERRED FROM AND TO 8 ADAT OPTICAL INPUTS AND 8 OUTPUTS VIA TOSLINK. FURTHERMORE, THE ADI-648 CONTAINS AN EASY-CONFIGURABLE 8-CHANNEL 16X16 MATRIX ROUTER. ANY OF THE OUTPUTS, WHICH ARE DIVIDED INTO 8-CHANNEL BLOCKS, CAN BE FED FROM ANY 8-CHANNEL INPUT BLOCK, BOTH ON THE ADAT AND THE MADI SIDE. WITH THIS, THERE IS NOT ONLY FREE ROUTING WITHIN THE M-A AND THE A-M CONVERSION, BUT ALSO SPLITTING AND ROUTING WITHIN THE SAME FORMAT. AN 8-CHANNEL INPUT BLOCK CAN BE ROUTED TO ANY NUMBER OF OUTPUT BLOCKS IN PARALLEL. SOME APPLICATION EXAMPLES:

MANAGING LONG DISTANCES WITH A SINGLE CABLE
ADAT BREAKOUT BOX FOR DEVICES WITH MADI INTERFACE
CONNECTING MADI-BASED EQUIPMENT TO RME'S HAMMERFALL SERIES
ADAT OPTICAL PATCHBAY AND ROUTER
MADI COAXIAL / OPTICAL OR VICE-VERSA CONVERTER AND SPLITTER
MADI REDISTRIBUTOR, PATCHBAY AND ROUTER

EXTRAS: IEC

MODIFICATIONS: N/A

HISTORY: USED FOR 6 MONTHS IN CHURCH FOH RACK AND CONTROL ROOM. UNITS WORK GREAT WE JUST SWITCHED CONSOLES AND THEREFORE SWITCHED TO ETHERSOUND

COMMENTS: WORKS GREAT

THIS UNIT WAS NEVER TOURED
