48 CHANNEL / 3-WAY SPLITTER
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on July 18, 2012 - Viewed 504 times

I HAVE A 48 CHANNEL / 3-WAY SNAKE SPLITTER I WOULD LIKE TO PART WITH.

THIS SPLITTER WAS PURCHASED IN A MUCH LARGER CORPORATE TOUR RACK. 95% IS WHIRLWIND SO I SUSPECT IT WAS A CUSTOM SHOP CREATION.
FOR SIZE CONCERNS, I INSTALLED THE 6 SPLITTER MODULES IN A EWI 12U RACK CASE.

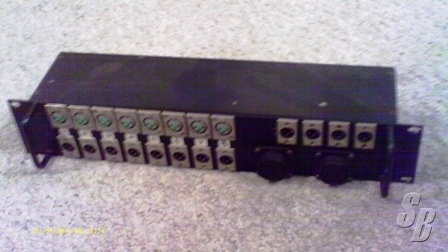

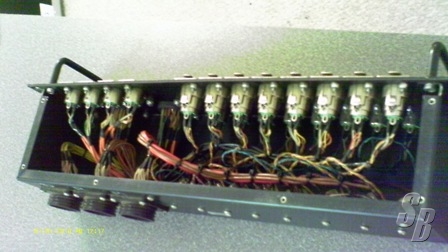

THIS UNIT IS COMPRISED OF SIX 8 X 4 RACK MODULES, CONTAINING EIGHT 3 WAY ISO/ TRANSFORMERS WIRED TO THREE WHIRLWIND DT12CM CONNECTORS IN EACH. THESE SOCKETS ARE MATED WITH THREE WHIRLWIND DT12CF 37 PIN CHASSIS FEMALE SOCKETS WITH LOCKING RINGS, WHICH ARE HARDWIRED VIA COLOR-CODED SNAKESKIN/WHRILWIND CABLE TO THREE W4176 MULTIPIN DOGHOUSE TYPE CHASSIS CONNECTORS. (FOH, MONITOR, RECORDING)

THE CONFIGURATION I CHOSE WAS 40 INPUT (5 MODULES), AND 8 SENDS USING A MODULE FOR SENDS ONLY.

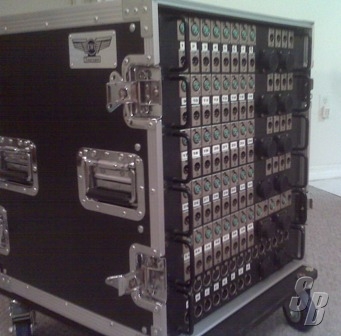

THE FRONT PANEL INPUTS ARE ALSO SPLIT IN THE FRONT VIA XLRM JACK FOR EACH XLRFM. ALSO, SEPARATE XLRM SENDS ON THE FRONT PANEL WIRED TO THE THREE W4176, ACCESSABLE WITH INDIVIDUAL CABLES IN THE REAR. ALSO TWO MORE W1 CONNECTORS IN FRONT FOR DROP SNAKES.


48 XLRFM INPUTS
48 XLRM OUTPUTS

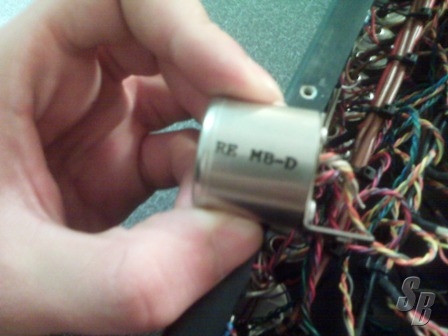

48 3 WAY MIC SPLITTER TRANSFORMERS (EACH TRANSFORMER MARKED RE MB-D / SELLER ASSUMES THIS IS RADIAL ENGINEERING?)
22 ADDITONAL XLRM OUTPUTS WIRED TO PATCH CABLES IN BACK.
12 WHIRLWIND DT12 MULTIPIN CONNECTORS ON FRONT FOR DROP SNAKES.
18 WHIRLWIND DT12CM MULTIPIN CONNECTORS FOR 3 SPLITS ON BACK.

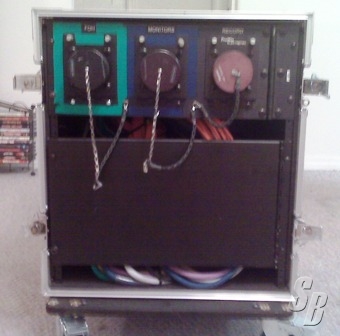

3 WHIRLWIND W4 176 DOGHOUSE CHASSIS DISCONNECTS FOR FOH, RECORDING, AND MONITOR SPLIT TRUNKS.

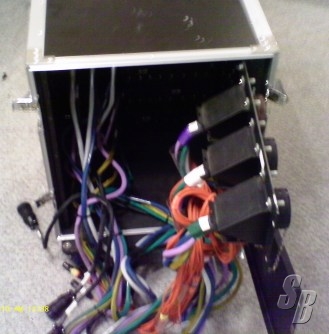

18 COLOR CODED WHIRLWIND SNAKESKIN COVERED PATCH CABLES FOR EASY CONNECT/DISCONNECT BETWEEN MODULES AND W4'S.

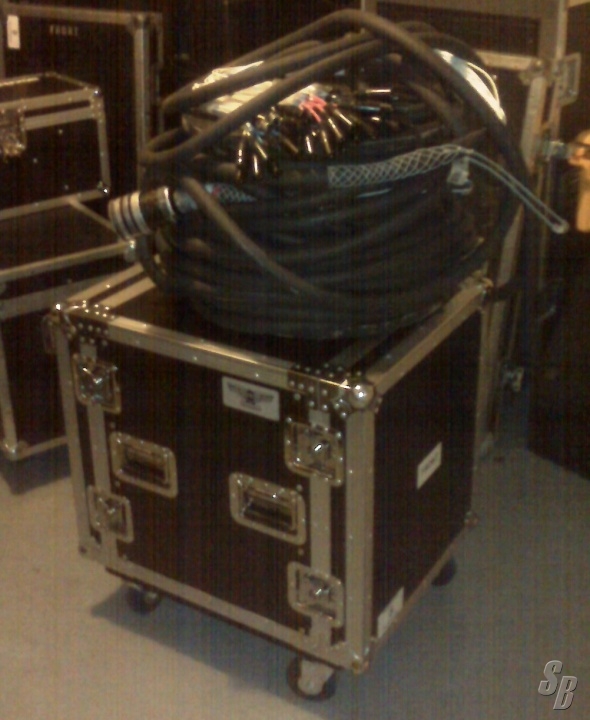

200' HORIZON 48 PAIR CABLE WITH WHIRLWIND W4 OUTPUT TO 40 XLRM, 8 XLRFM FANOUT. (TRUNK ONLY USED FOUR TIMES)
25' MONITOR SPLIT WITH W4 OUTPUT TO 16 XLRM FANOUT.

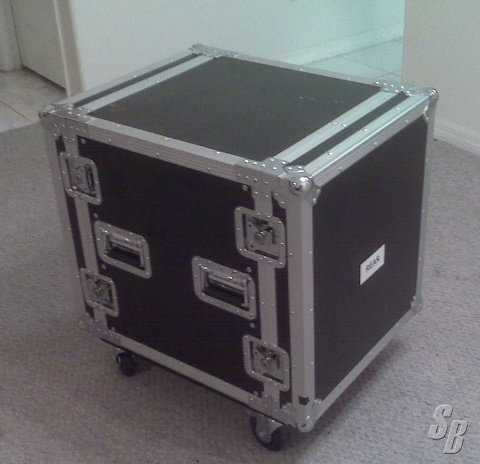

EWI 12U TOURCASE (18.5" D)
***I WILL INCLUDE A DMC M22520/2-01 AFM8 CRIMPER WITH A K13-3 POSITIONER FOR WHIRLWIND MASS.

THIS SNAKE HAS BEEN A WORK IN PROGRESS; WORKS 100% NO MODIFICATIONS HAVE BEEN DONE TO THE SPLIT MODULES OR TRANSFORMERS. SNAKE TRUNKS WERE WIRED BY ME TO STANDARD W4 CONFIGURATION.
