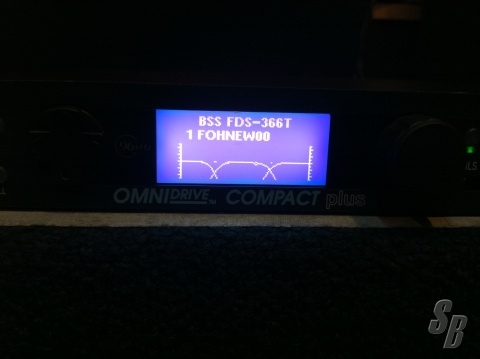

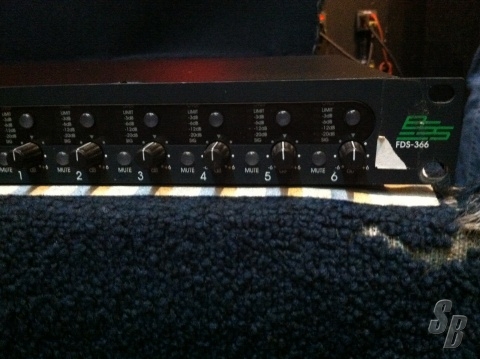

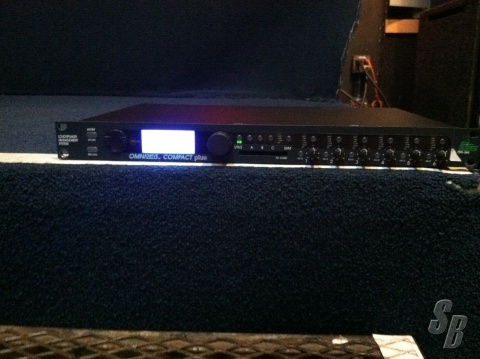

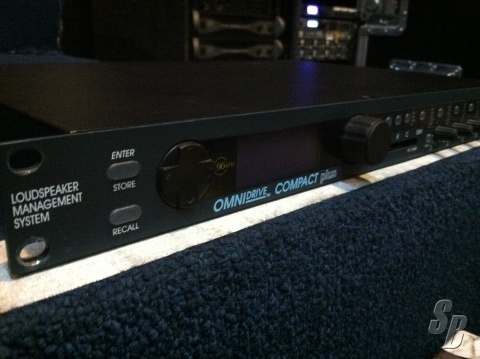

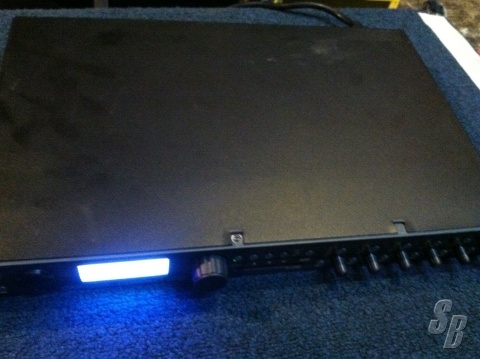

BSS FDS-366 OMNIDRIVE COMPACT PLUS
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on October 31, 2013 - Viewed 271 times

BSS OMNIDRIVE COMPACT PLUS (YOM: 2000) (S#: Z-FDS366 1002665) SUPERB (8-9)

FEATURES: INPUT SECTION
INPUT IMPEDANCE 10KOHM, ELECTRONICALLY BALANCED

MAXIMUM INPUT LEVEL +20DBU

CMRR BETTER THAN 50DB (30HZ-20KHZ)

INPUT GAIN +/-15DB VARIABLE IN 0.1DB STEPS

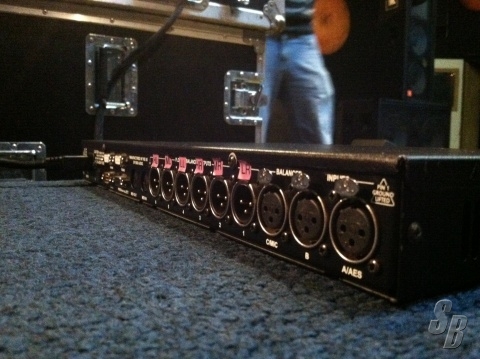

INPUT CONNECTOR XLR-3F OR EQUIVALENT
PIN 1 FLOATING (NO CONNECTION)
PIN 2 SIGNAL +VE (HOT)
PIN 3 SIGNAL -VE (COLD)
AES/EBU INTERFACE ON INPUT A

INPUT SAMPLE RATE 44.1KHZ, 48KHZ, 88.2KHZ, 96KHZ

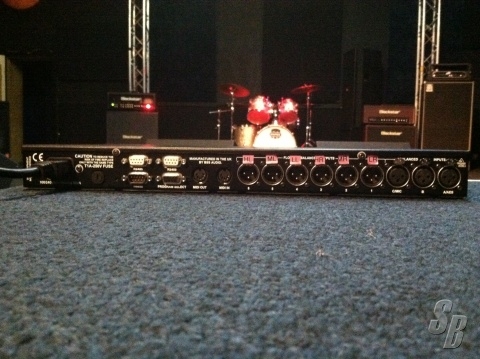

OUTPUT SECTION
OUTPUT IMPEDANCE <50 Ohms, electronically balanced & floating

Maximum Output Level +20dBu into 600 Ohms or greater

Output Gain +/-21dB, variable in 0.1dB steps

Output Connector XLR-3M or equivalent
Pin 1 Ground
Pin 2 Signal +ve (Hot)
Pin 3 Signal -ve (Cold)
Transformer Balancing optional
Crossover Filters
Slopes 6, 12, 18, 24, 26, 48 or 52dB per octave (Filter type dependant)
Type Bessel, Butterworth, Linkwitz-Riley or WHISEWORKS - NTM™

Delays Available on Inputs A, B, and C
Outputs 1, 2, 3, 4, 5, 6

Delay Step 11 microseconds minimum

Max Delay time 2.6 seconds
EQ
Maximum number of EQ filters 60 (depending on crossover slopes). Nine filters are assigned to Dynamic EQ.

EQ Type Parametric, Bell or shelving on any filter

EQ Gain +/-15dB, variable in 0.2dB steps

Q (bandwidth) 0.05 to 3 octaves, variable in 0.05 steps

EQ freq 15Hz to 20kHz

Dynamic slope 2:1 to 20:1 (dynamic EQs only)
General Performance (filters out)
Frequency response 15Hz - 20kHz, +/-0.25dB
15Hz - 40kHz, +/-3dB

Dynamic range >112DB, UNWEIGHTED 22HZ TO 22KHZ, >117DB USING AES INPUT

CHANNEL SEPARATION >80DB, 30HZ TO 20KHZ

DISTORTION (THD) <0.005%, 20HZ - 20KHZ @+10DBU OUTPUT
INPUT HEADROOM METERING -20DB, -12DB, -6DB, -3DB, CLIP
RELATIVE TO CLIP POINT (+20DBU)
OUTPUT METERING SIG (-40DB), -20DB, -12DB, -6DB, -3DB, 0DB, OVER (+6DB)
RELATIVE TO LIMITER THRESHOLD SETTING
GENERAL
DIMENSIONS 19" X 1.75" X 11.5" (483MM X 45MM X 292MM)

WEIGHT 8.4LBS (3.8KGS), UNPACKED

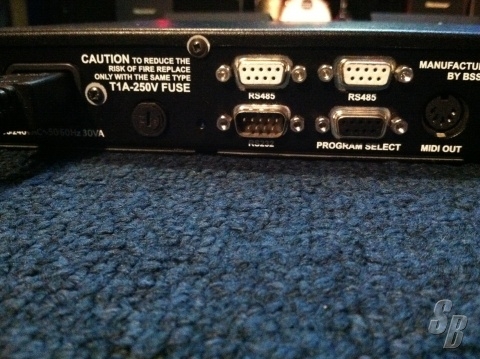

AC POWER 90V-264V AC, 50/60HZ, 30VA
OPTIONS
OUTPUT TRANSFORMERS


EXTRAS: 1 IEC

1 USER MANUAL

MODIFICATIONS: THE CROSSOVER HAS BEEN SENT TO BSS TO HAVE THE SCREEN REPLACED AND ALL COMPONENTS CHECKED.

HISTORY: BSS FDS-366 CROSSOVERS HAS BEEN USED IN A SMOKE FREE REHEARSAL ROOMS FOR OVER 9 YEARS AT SWING HOUSE REHEARSAL AND RECORDING.

COMMENTS: JUST SENT IN TO BE CHECKED.

THIS UNIT WAS NEVER TOURED
