DYNACORD COBRA4
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on October 14, 2014 - Viewed 629 times

DYNACORD COBRA 4 (YOM: 2009???) (S#: TBD)
CONTAINS:

(2) DX244 PROCESSORS
(3) DYNACORD L2400 AMPLIFIERS
(1) EV P3000 AMPLIFIER
(2) FAR TOP BOXES
(4) TOP BOXES
(8) SINGLE 18" SUBS

SPECS: THE ACTIVE 4-WAY COBRA-4 SYSTEM IS DESIGNED TO PROJECT OVER DISTANCES OF UP TO 80 METRES IN MEDIUM-SIZED MARQUEES, HALLS AND OPEN-AIR VENUES AND PRODUCES SPLS AT THE FOH POSITION, 30 METRES FROM THE STAGE, OF 110 DB IN THE MEDIUM-AND HIGH-FREQUENCY RANGES AND UP TO 120 DB IN THE BASS.

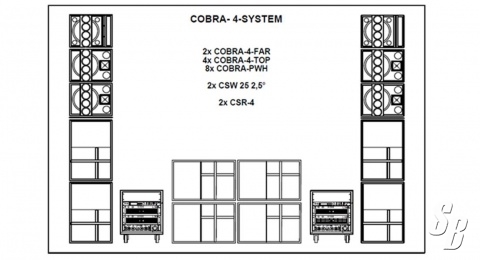

THROUGH THE USE OF TWO COBRA-4 TOPS AND A COBRA-4 FAR, OPTIMAL LINE-ARRAY PERFORMANCE CAN BE ACHIEVED WITHOUT TIME CONSUMING TINKERING. WITH THE COBRA-4 SYSTEM, IN THE VICINITY OF THE PA, THE VERTICAL COVERAGE ANGLE IN THE HIGH FREQUENCY RANGE IS PARTICULARLY WIDE, TO COVER THE AREAS DIRECTLY IN FRONT OF THE STAGE. TO PROJECT OVER LONG DISTANCES,A COBRA-4 FAR, WHICH HAS A COVERAGE PATTERN OF 90 X 176; IN THE HIGH FREQUENCY RANGE, IS POSITIONED AT THE TOP OF THE ARRAY.

FOR THE LOW FREQUENCY RANGE AND THE MIDRANGE, THE SAME COMPONENTS ARE USED AS IN THE COBRA-4 TOP, SO THE LOW AND MID RANGE LINE ARRAY CONTINUES IN AN UNBROKEN LINE.

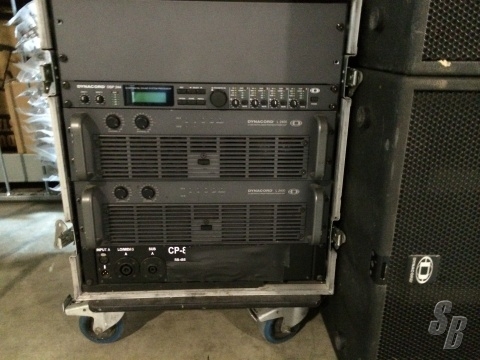

IN ALL, EIGHT COBRA PWH BASS HORNS ARE USED TO GENERATE THE SOUND PRESSURE LEVELS AND PROJECTION TYPICALLY REQUIRED BY TOP FORTY BANDS AND THESE CAN BE STACKED OR ARRAYED AS DICTATED BY THE ARCHITECTURE OF THE ROOM. THE COBRA-4 SYSTEM IS DRIVEN BY TWO READY-CABLED AND PROGRAMMED CSR-4 AMP RACKS WITH A DSP 244 CONTROLLER, TWO L 2400 POWER AMPLIFIERS AND A CP-84 CONNECTOR PANEL.

EXTRAS: ALL SPEAKERS AND CABLES COME IN ROAD CASES !

MODIFICATIONS: NO

HISTORY:

COMMENTS:
