ID # 94691    CURRENT CATEGORY - SPEAKERS

EAW AVALON CLUB SERIES SOUND SYSTEM, 1X UX8800 DSP + 4X CLUB.TWO SPEAKERS + 6X SUB.TWO SUBWOOFERS
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on January 05, 2017 - Viewed 359 times

Click on thumbnail to enlarge

EAW AVALON CLUB SERIES SOUND SYSTEM, 1X UX8800 DSP + 4X CLUB.TWO SPEAKERS + 6X SUB.TWO SUBWOOFERS
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]



EAW UX8800, AVALON CLUB.TWO, AVALON SUB.TWO (YOM: ?) (S#: 001865000AVFG0301, 433140, 433141, 433150, 433151, 433121, 433124, 433125, 433123, 433122, 433120) SUPERB (8-9)

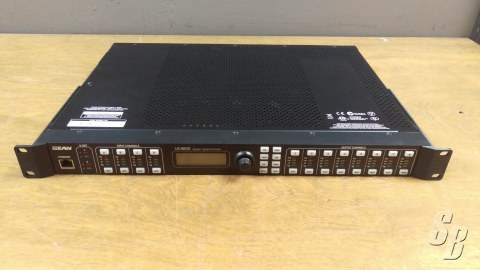

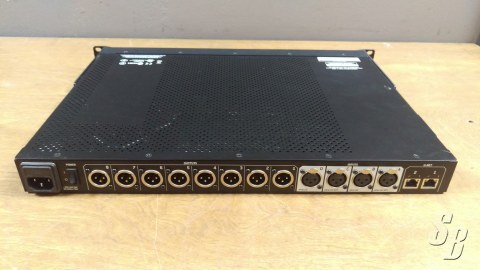

FEATURES: EAW AVALON CLUB SERIES SOUND SYSTEM PACKAGE INCLUDING 1X UX8800 DSP, 4X CLUB.TWO SPEAKERS, & 6X SUB.TWO SUBWOOFERS IN BLACK/SILVER.

PULLED FROM A WORKING INSTALLATION, NEVER BEEN USED FOR TOURING! ALL SPEAKERS IN GREAT WORKING CONDITION! SOME SUB.TWOS HAVE MINOR COSMETIC DAMAGE, EVERYTHING ELSE IS IN GREAT COSMETIC CONDITION!

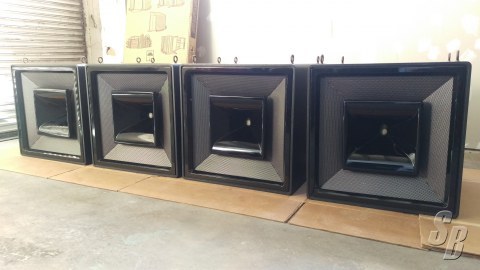

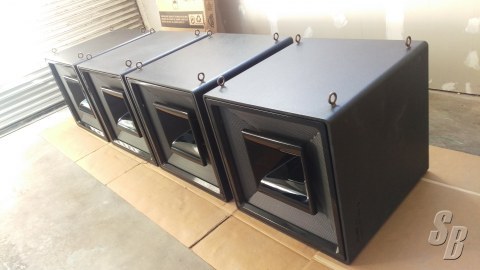

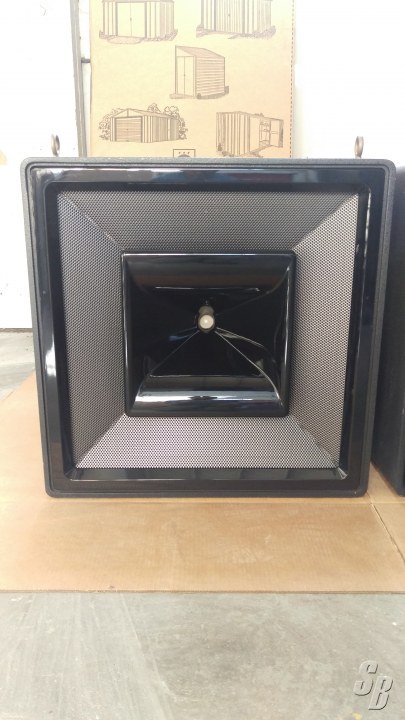

EAW AVALON CLUB.TWO

OPERATING RANGE (-10 DB, DB SPL)
40 TO 20K
AXIAL SENSITIVITY (1W @ 1M, DB SPL)
LF: 102
PASSIVE MF/HF: 109
POWER HANDLING/IMPEDANCE (WATTS @ OHMS)
LF (SINGLE AMP): 2000 @ 2
LF (PARALLEL): 1000 @ 4 (2X)
PASSIVE MF/HF: 150 @ 8
CALC. MAX. OUTPUT PEAK (DB SPL)
LF: 141
PASSIVE MF/HF: 137
CALC. MAX. OUTPUT LONG TERM (DB SPL)
LF: 135
PASSIVE MF/HF: 131
NOMINAL COVERAGE (DEGREES)
HORIZONTAL: 90
VERTICAL: 60

THE CURRENT FLAGSHIP, THE CLUB.TWO OFFERS SUPERIOR OUTPUT AND CONTROL IN AN ENCLOSURE THAT CAN ONLY BE AVALON BY EAW™. A HIGHLY DIRECTIONAL ACOUSTICAL DESIGN CREATES CRUSHING SOUND LEVELS ON THE DANCE FLOOR WHILE MINIMIZING SPILL ONTO WALLS AND CEILINGS. THE CLUB.TWO IS IDEAL AS MAINS FOR THE LARGEST CLUBS.

EVEN THE BEST LOUDSPEAKER DESIGNERS STRUGGLE TO MEET THE DEMANDS OF THE DANCE CLUB WORLD. AND NOBODY IN THE DANCE CLUB WORLD HAS THE SCIENTIFIC BACKGROUND OR THE TECHNICAL FACILITIES NECESSARY TO DESIGN A TOP-QUALITY LOUDSPEAKER SYSTEM. BUT AVALON BY EAW IS DIFFERENT FROM EVERYTHING ELSE. THESE AMAZING LOUDSPEAKERS RESULT FROM A UNIQUE PARTNERSHIP BETWEEN A DANCE CLUB DESIGNER AND A LOUDSPEAKER DESIGNER. BY COMBINING THEIR SKILLS, THEY PRODUCED THE MOST REMARKABLE LOUDSPEAKER TECHNOLOGY EVER APPLIED TO THE DANCE CLUB WORLD.

THE WORD HERE IS “EFFICIENCY”. EAW ENGINEERS HAVE SPECIFIED A COAXIAL MID/HIGH COMPRESSION WITH SUCH HIGH SENSITIVITY THAT IT PRODUCES PEAK OUTPUT OF AROUND 136 DB USING ONLY 150 WATTS OF AMPLIFIER POWER. THIS COMPRESSION DRIVER, USED IN BOTH THE CLUB.TWO AND THE CLUB.THREE, IS THEN LOADED WITH 90 (H) BY 60 (V) AND 90 BY 90 HORNS, RESPECTIVELY.
THE ACOUSTICAL CHALLENGE IN THE MID/HIGH REGION HAS ALWAYS COME FROM PHYSICALLY ALIGNING THE MID AND HIGH FREQUENCY SECTIONS TO SUM COHERENTLY, WITHOUT ANOMALIES IN THE CROSSOVER REGION. BECAUSE THE AVALON BY EAW USES A SINGLE, COAXIAL MID/HIGH DRIVER, EAW ENGINEERS HAVE ELIMINATED THIS PROBLEM ENTIRELY.

EXCEPT IN RARE CIRCUMSTANCES, EAW ENGINEERS PREFER TO USE SMALLER LOW FREQUENCY CONES TO AVOID A LOOSE, SLOPPY BASS SOUND. TO GET THE RIGHT AMOUNT OF OUTPUT, THEY USE MANY OF THEM TOGETHER. THE EXCEPTION, OF COURSE, COMES WHEN THEY FIND A LARGER CONE DRIVER THAT HAS THE SPEED REQUIRED TO WORK ON ITS OWN. IN AVALON, THEY’VE USED BOTH APPROACHES.
CLUB.TWO. USES FOUR 12-IN LF CONES ARRANGED IN A SYMMETRICAL PATTERN BEHIND THE MID/HIGH SECTION. THESE DRIVERS SUM TO PRODUCE THE OUTPUT OF LARGER DRIVERS WITHOUT SUFFERING FROM THE SLOW RESPONSE USUALLY ASSOCIATED WITH BIG CONES.

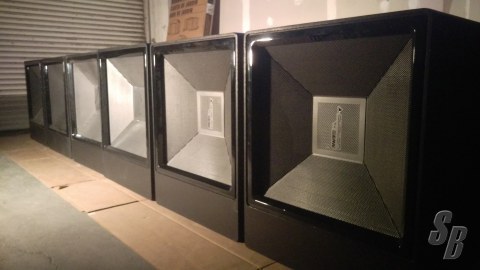

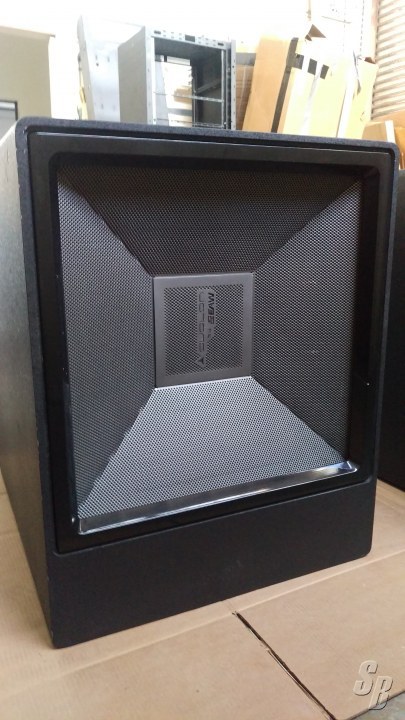

SUB.TWO

OPERATING RANGE (-10 DB, DB SPL)
VLF1 (-10 DB) 35 – 250
VLF2 (-10 DB) 20 – 190
AXIAL SENSITIVITY (1W @ 1M, DB SPL)
VLF1 (WHOLE SPACE/HALF SPACE) 101/107
VLF2 (WHOLE SPACE/HALF SPACE) 92/98
POWER HANDLING/IMPEDANCE (WATTS @ OHMS)
VLF 1 1000 @ 4
VLF2 1800 @ 4
MAXIMUM OUTPUT (DB SPL @ 1M, PEAK/LONG TERM)
VLF 1 (WHOLE SPACE) 137/131
VLF1 (HALF SPACE) 140/134
VLF2 (WHOLE SPACE) 131/125
VLF2 (HALF SPACE) 138/132

THE SUB.TWO IS TRULY THE WORLD’S FIRST HYBRID SUBWOOFER, DELIVERING BOTH THE EXTREME EXTENSION AND THE MASSIVE PHYSICAL IMPACT REQUIRED FOR THE MOST DEMANDING DANCE APPLICATIONS FROM A SINGLE ENCLOSURE.
EVEN THE BEST LOUDSPEAKER DESIGNERS STRUGGLE TO MEET THE DEMANDS OF THE DANCE CLUB WORLD. AND NOBODY IN THE DANCE CLUB WORLD HAS THE SCIENTIFIC BACKGROUND OR THE TECHNICAL FACILITIES NECESSARY TO DESIGN A TOP-QUALITY LOUDSPEAKER SYSTEM. BUT AVALON BY EAW IS DIFFERENT FROM EVERYTHING ELSE. THESE AMAZING LOUDSPEAKERS RESULT FROM A UNIQUE PARTNERSHIP BETWEEN A DANCE CLUB DESIGNER AND A LOUDSPEAKER DESIGNER. BY COMBINING THEIR SKILLS, THEY PRODUCED THE MOST REMARKABLE LOUDSPEAKER TECHNOLOGY EVER APPLIED TO THE DANCE CLUB WORLD.

AVALON BY EAW SUB BASS TECHNOLOGY REPRESENTS AN ENTIRELY NEW PLATFORM DESIGNED EXCLUSIVELY FOR THE DANCE CLUB COMMUNITY.
THE ALL-NEW HYBRID SUBWOOFER TECHNOLOGY™ IN THE SUB.TWO COMBINES THE BEST PART OF THE TWO MOST COMMON TYPES OF SUBWOOFER: DIRECT RADIATORS AND BASS HORNS. DIRECT RADIATORS EMPLOY LARGE CONES IN LARGE ENCLOSURES TO GENERATE WARM, DEEP BASS IN THE LOWEST OCTAVE. BASS HORNS LOAD SMALLER DRIVERS ON LONG, “BENT” HORNS TO GENERATE THE PUNCHY SOUND SO PRIZED IN THE DANCE CLUB WORLD.
SUB.TWO LOADS DUAL 12-IN CONES ON A BENT HORN, BUT THEN INSTALLS A POWERFUL 21-IN CONE AT THE END OF THE FLARE. THIS REVOLUTIONARY APPROACH DELIVERS BOTH WARM, RICH, ULTRA-LOW BASS AND A CONCUSSIVE, PHYSICAL PUNCH.
BECAUSE IT USES TWO SEPARATE SUBSYSTEMS, THIS ALLOWS EAW ENGINEERS TO WORK WITH VENUE DESIGNERS AND DJS TO CUSTOM CRAFT PROCESSOR SETTINGS TO MEET THEIR SPECIFIC TASTES.


EXTRAS: 1X UX8800 DSP, 4X CLUB.TWO SPEAKERS , & 6X SUB.TWO SUBWOOFERS

MODIFICATIONS: N/A

HISTORY: SPEAKERS ARE IN GREAT CONDITION! PULLED FROM A WORKING INSTALLATION, NEVER USED FOR TOURING USE.

COMMENTS: MINOR COSMETIC DAMAGES TO SUB.TWOS. EVERYTHING ELSE IN GREAT CONDITION!

THIS UNIT WAS NEVER TOURED

Additional Details
ID#: 94691
Listing Type:
Standard
Model: UX8800, AVALON CLUB.TWO, AVALON SUB.TWO
Manufacturer: EAW (Eastern Acoustics Works)
Condition: SUPERB (8-9)
Shipping Info: 2540.00 lbs.,
Seller's Location: CA, USA
Updated: January 05, 2017
M.S.R.P.: $0.00
Asking Price: SOLD
