EAW KF 940 SUBWOOFER
[PRICED PER UNIT - 4 AVAILABLE AT TIME OF LISTING]
Listing last update on April 28, 2007 - Viewed 198 times

EAW KF 940 (?) (S#: TBD) SUPERB (8-9)

4 EA. EAW KF 940 SUBWOOFERS WITH BUILT IN WHEELS (2000?A) HAVE BEEN USED LESS THAN 10 TIMES.

EXCELLENT CONDITION!!!

HTTP://EAW.COM/PRODUCTS/KF940.HTML

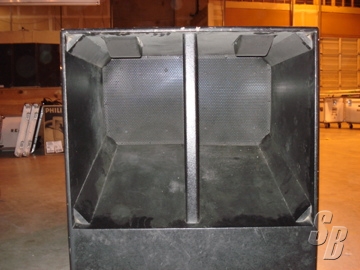

BENT BASS HORN SUBWOOFER
(2) 12 IN HEAVY DUTY WOOFERS
ï½±3 DB 24 - 300 HZ
PEAK OUTPUT: 145 DB SPL
FOR PORTABLE USE ONLY
DESCRIPTION
THE KF940 PORTABLE HORN-LOADED SUBWOOFER SYSTEM, OTHERWISE KNOWN AS THE "SUPER-SUB," HAS CREATED A NEW LEVEL OF SUB BASS PERFORMANCE BY LOADING TWO SPECIALLY DESIGNED 12 IN WOOFERS WITH A HORN WITH AN EXPONENTIALLY EXPANDING THROAT THAT IS OVER 13 FT LONG. GREAT CARE HAS BEEN TAKEN TO CREATE WOOFER CONES THAT COULD WITHSTAND THE FORCE OF BEING LOADED WITH SUCH A LARGE HORN. AS AN IMPEDANCE MATCHING DEVICE, THE HORN BRINGS THE 1 WATT @ 1 METER SENSITIVITY OF THE SYSTEM AT 100 HZ TO 113 DB SPL.

THE KF940'S HORN USES A CONSTRUCTION TECHNIQUE THAT ALLOWS US TO CREATE HORNS WITH THE NECESSARY COMPLEX EXPANSION RATES. THE COMPLEX FLARES ARE CONSTRUCTED FROM A 3 MM VENEER OF BIRCH PLYWOOD THAT IS FIT INTO SLOTS CUT BY OUR COMPUTER-NUMERIC-CONTROLLED ROUTER. THE BIRCH VENEER IS THEN BACKED WITH A PROPRIETARY ANTI-RESONANCE, HIGH-DAMPING POLYURETHANE FOAM, MAKING THE HORN ACOUSTICALLY OPAQUE.


APPLICATIONS
THE KF940 PROVIDES EXTREMELY HIGH LEVELS OF TIGHT, PUNCHY BASS TO THE LOWEST OCTAVE OF HUMAN HEARING. IT IS ENGINEERED FOR USE IN ARRAYS OF FOUR OR MORE MODULES. THE HORNS OF MULTIPLE ENCLOSURES COUPLE ACOUSTICALLY TO CREATE A SINGLE, LARGER HORN THAT INCREASES OUTPUT AND PROVIDES DIRECTIVITY TO VERY LOW FREQUENCIES.

PHYSICAL
SYSTEM CONFIGURATION SUBWOOFER
PRODUCT GROUP S
LF SUBSYSTEM & LOADING TWO 12 IN WOOFERS, BENT HORN
ENCLOSURE MATERIAL EXTERIOR GRADE BALTIC BIRCH PLYWOOD
FINISH WEAR RESISTANT TEXTURED BLACK PAINT

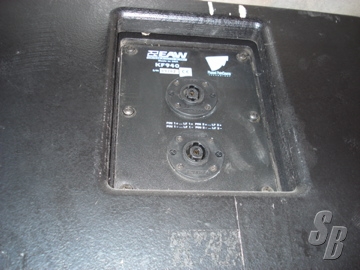

CONNECTOR TWO NEUTRIK NL4 SPEAKON
GRILLE POWDER COATED PERFORATED STEEL

DIMENSIONS (ï½±0.13 IN / ï½±3 MM)
HEIGHT 32.00 / 813
WIDTH 36.00 / 914
DEPTH 52.00 / 1321

WEIGHTS (POUNDS / KILOGRAMS)
SHIPPING WEIGHT 315.0 / 143.2

PERFORMANCE
FREQUENCY RESPONSE
ï½±3 DB 24 HZ TO 300 HZ
-10 DB 21 HZ
RECOMMENDED HIGH-PASS FREQUENCY 25 HZ, 12 DB / OCTAVE BUTTERWORTH

AXIAL SENSITIVITY (DB SPL, 1 WATT @ 1 M)
LF 109

NOMINAL INPUT IMPEDANCE (OHMS)
SUBBASS DRIVER 1: 8
DRIVER 2: 8
PARALLEL: 4

POWER HANDLING (WATTS, CONTINUOUS)
SUBBASS (W/ 25 HZ, 12 DB/OCT HPF)
DRIVER 1: 800
DRIVER 2: 800
PARALLEL: 1600

CALCULATED SPL LIMIT (REFERENCED TO 1 M)
SUBBASS PEAK 145.0
SUBBASS LONG TERM 139.0

NO MODIFICATIONS MADE. SUBWOOFER IN GREAT CONDITION.

THESE SUBWOOFERS WERE USED FOR TWO CONCERTS. THEY HAVE MINOR PHYSICAL BLEMISHES BUT ARE OTHERWISE LIKE NEW!

IN GREAT CONDITION!!!!

THIS UNIT WAS NEVER TOURED
