EAW MK 5364/5364
[PRICED PER UNIT - 3 AVAILABLE AT TIME OF LISTING]
Listing last update on June 10, 2016 - Viewed 196 times

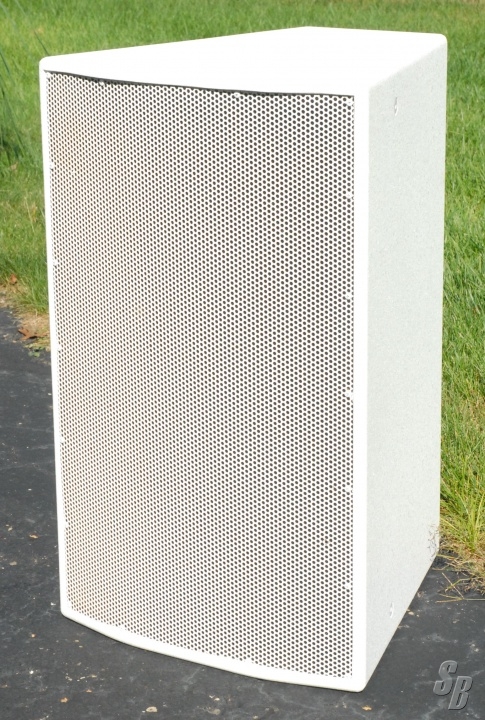

EAW MK 5364 / 5366 (YOM: 2010) (S#: TBD) LIKE NEW (9-10)

FEATURES:
EAW MK 5364 (QNTY 2)
EAW MK 5366 (QNTY 1)

SPEAKERS SOLD SEPERATLY.


THE MK5300 SERIES OF 2-WAY, HIGH-OUTPUT, TRAPEZOIDAL LOUDSPEAKERS ARE DESIGNED AS MAIN PA FOR SMALLER VENUES, INCLUDING HOUSES OF WORSHIP, AUDITORIUMS/THEATERS, A/V SYSTEMS, HOTEL BALLROOMS, AND MEETING ROOMS. THE SERIES IS ALSO IDEAL FOR DISTRIBUTED OR FILL PURPOSES IN LARGER VENUES, INCLUDING HOUSES OF WORSHIP, AUDITORIUM/THEATERS, ARENAS, STADIUMS, NIGHTCLUBS, AND THEMED-ENTERTAINMENT COMPLEXES.
TO MEET THE DESIGN GOALS FOR THE INTENDED APPLICATIONS, EAW ENGINEERS DEVELOPED A NEW, HIGH PERFORMANCE, 3" VOICE COIL, COMPRESSION DRIVER. THE HORNS ARE AS LARGE AS THE ENCLOSURE, ALLOWING CONSISTENT DIRECTIVITY THROUGHOUT THE HF PASSBAND. A 3" VOICE COIL, 15" LF DRIVER, WAS DESIGNED TO COMPLEMENT THE SONIC CHARACTER AND OUTPUT OF THE HF DRIVER. ALL MK5300 MODELS ARE CAREFULLY VOICED TO SOUND FAMILIAR, PERMITTING DIVERSE HORN PATTERNS TO BE MIXED THROUGHOUT AN INSTALLATION WHILE MAINTAINING THE SAME SONIC QUALITY. THE RESULTS ARE CLEANER, USABLE, HIGH-FIDELITY OUTPUT TO SIGNIFICANTLY HIGHER LEVELS THAN IS NORMALLY EXPECTED FROM LOUDSPEAKERS OF THIS SIZE AND PRICE.

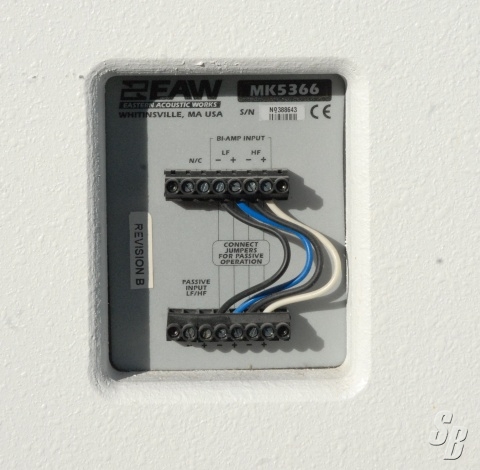

SINGLE-AMP AND BI-AMP OPERATING MODES ARE USER-SELECTABLE. IN SINGLE-AMP MODE, THE BEAMWIDTH-MATCHING PASSIVE CROSSOVER IS DESIGNED FOR EVEN POWER RESPONSE THROUGH CROSSOVER, LOW POWER LOSSES, AND HIGH POWER HANDLING. IN BI-AMP MODE A DIGITAL SIGNAL PROCESSOR (DSP) IS REQUIRED, PROVIDING SOPHISTICATED PROCESSING TO MAXIMIZE PERFORMANCE.
FOAM-BACKED GRILLES HIDE THE DRIVERS FROM VIEW FOR PLEASING AESTHETICS. THIRTEEN MOUNTING POINTS ALLOW ENCLOSURES TO BE MOUNTED IN VIRTUALLY ANY CONFIGURATION. ADDITIONAL MOUNTING POINTS MATE WITH OMNIMOUNT 120.0 SERIES OR SIMILAR BRACKETS.
THE MK5300 ARE THE LARGER COMPANIONS TO THE MK2300 SERIES LOUDSPEAKERS. ENCLOSURES FOR BOTH SERIES ARE THE SAME HEIGHT FACILITATING INSTALLATION WHERE MORE THAN ONE HORN PATTERN AND/OR TYPE OF LOUDSPEAKER CAPABILITY IS NEEDED. SIX YEAR WARRANTY.
SPECIFICATIONS
SUBSYSTEM: LF - 1 X 15" CONE, VENTED; HF - 1 X 1.4" EXIT, 3" VOICE COILCOMPRESSION DRIVER, HORN-LOADED
OPERATING MODE: SINGLE-AMP - LF/HF; BI-AMP - LF, HF
EXTERNAL SIGNAL PROCESSING: SINGLE-AMP - HIGH PASS FILTER; BI-AMP -DSP W/2-WAY FILTERS
OPERATING RANGE: 62 HZ TO 20 KHZ
5364 NOMINAL BEAMWIDTH (ROTATABLE): 60° H X 45° V
INPUT IMPEDANCE: 8 OHMS
HIGH PASS FILTER: =>50HZ, 12DB/OCTAVE BUTTERWORTH
ACCELERATED LIFE TEST: LF/HF, 80V - 800W @ 8 OHM; LF, 80V - 800W @ 8 OHM;HF 35V - 150W @ 8 OHM
CALCULATED AXIAL OUTPUT LIMIT (WHOLE SPACE SPL, LF/HF): 126DB AVERAGE,132DB PEAK
DIMENSIONS (H X W X D): 30" X 18.71" X 19.73"

MK5366 ( ONE)
SAME AS ABOVE, BUT WITH A NOMINAL BEAMWIDTH (ROTATABLE): 60° H X 60° V

EXTRAS: FLYWARE INCLUDED

MODIFICATIONS: NONE

HISTORY: SMALL 800 SEAT NON-SMOKING THEATER.

COMMENTS: NO ISSUES - PERFECT PHYSICAL AND WORKING CONDITION

THIS UNIT WAS NEVER TOURED


PLEASE NOTE: THE SELLER'S ASKING PRICE MAKES THIS LISTING ELIGIBLE FOR OUR VIP-LOYALTY CLUB, DIRECT SALES PROGRAM. IN ORDER TO SAVE YOU MONEY, THIS ITEM CAN ONLY BE PURCHASED AS A VIP MEMBER DIRECTLY FROM THE SELLER.

$ 975.00 EACH IS THE EXACT AMOUNT THE SELLER IS ASKING.
