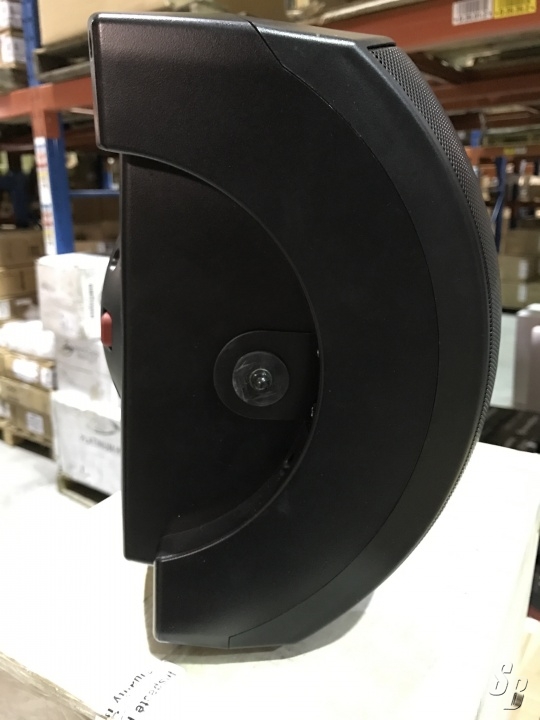

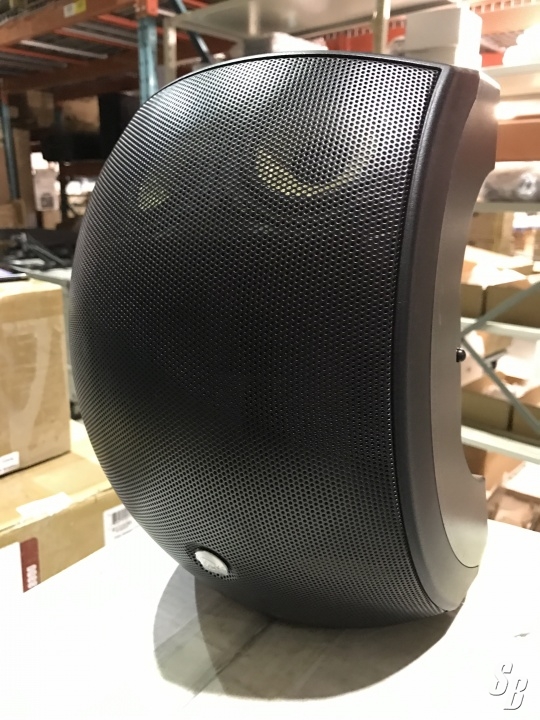

EAW SMS2124 2 WAY SURFACE-MOUNT SPEAKER -4X3/2X1 -120X40 -BLACK
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on November 15, 2016 - Viewed 257 times

EAW SMS2124 (YOM: ?) (S#: TBD) LIKE NEW (9-10)

FEATURES: THE SMS2124 SIGNIFICANTLY ADVANCES SMALL LOUDSPEAKER TECHNOLOGY IN PROVIDING SUPERIOR VOICE INTELLIGIBILITY, COHERENCE AND PATTERN CONTROL, COMBINED WITH CONVENIENT, FLEXIBLE MOUNT CAPABILITIES.

THE TWO-WAY SMS2124 (4 X 3-INCH LF, 2 X 2-INCH HF ARRAY, 120-DEGREE BY 40-DEGREE COVERAGE PATTERN) INCORPORATES PROPRIETARY THETA TECHNOLOGY, WITH THE LF DRIVERS CONFIGURED IN A PRECISE ARRANGEMENT TO PROVIDE EXCELLENT PATTERN CONTROL AND COHERENCY BELOW THE LF/HF CROSSOVER. THE LF DRIVERS ALSO COUPLE AT LOWER FREQUENCIES, PROVIDING LF OUTPUT OF A MUCH LARGER DRIVER WITHOUT SACRIFICING SOUND QUALITY THROUGH THE CROSSOVER REGION. THE CUSTOM HIGH-POWER HF DRIVER COMPLEMENTS THE LF SUBSYSTEM THROUGHOUT THE CRITICAL SPEECH RANGE.

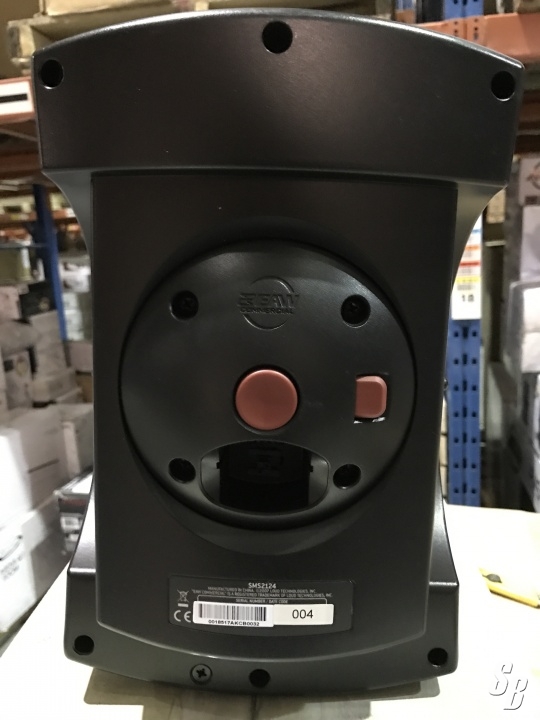

THE SMS2124 IS DESIGNED FOR SURFACE MOUNTING USING THE PROPRIETARY CLIP-FIT SYSTEM. ALL CONNECTIONS FOR THE LOUDSPEAKER ARE CONTAINED WITHIN THE CLIP-FIT WALL-MOUNT UNIT VIA A SINGLE MOLEX CONNECTOR, WITH THE WALL-MOUNT UNIT PRE-MOUNTED AT THE PREFERRED POSITION ON A WALL. THE INSTALLER THEN JUST 'CLIPS' THE LOUDSPEAKERS ONTO THE CLIP-FIT ARM, AND IN ONE MOTION, THE AUDIO CONNECTION IS TERMINATED AND THE LOUDSPEAKER IS LIVE. THE WALL-MOUNT UNIT OFFERS A PAN/TILT POSITIONING RANGE FOR PRECISE AIMING. FOR BASIC INSTALLATIONS, SMS LOUDSPEAKERS ARE ALSO PROVIDED WITH U-BRACKETS.

EXTRAS: NO

MODIFICATIONS: NONE

HISTORY: DEMO'D

COMMENTS: N/A

THIS UNIT WAS NEVER TOURED
