ID # 14985 CURRENT CATEGORY - SPEAKERS
ELECTRO VOICE MANIFOLD PA CABINETS - 4 X MTH-1 CABINETS FOR MIDS/HIGHS - 10
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on July 30, 2003 - Viewed 141 times
Asking Price:
SOLD
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
ELECTRO VOICE MANIFOLD PA CABINETS

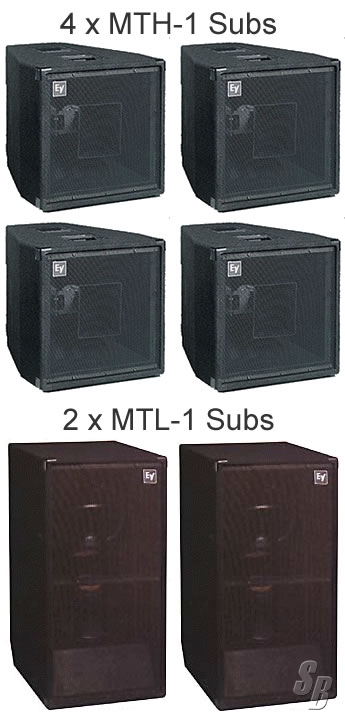

- 4 X MTH-1 CABINETS FOR MIDS/HIGHS - 10" DH2T DRIVER WITH CD HORN(SEE BELOW FOR DETAILED SPECS) - 2 X MTL-1 CABINETS FOR LOWS - DUAL DL18MT SUBS(SEE BELOW FOR DETAILED SPECS)
MTH-1 CABINETS SPECS - TWO-WAY HORN LOADED MF/HF SYSTEM - HIGH OUTPUT AND EXCELLENT DIRECTIONAL CONTROL FROM 160 HZ THANKS TO CONSTANT-DIRECTIVITY HORN LOADING - DH2T LARGE-FORMAT DRIVER IS COUPLED TO A 60ï½° X 40ï½° CONSTANT-DIRECTIVITY HORN FOR EXCELLENT CLARITY AND INTELLIGIBILITY. DL10X-10 10-INCH MIDRANGE DRIVER HAS SMOOTH RESPONSE AND HIGH OUTPUT - THE BUILT-IN CROSSOVER ALLOWS THE MTH-1 TO BE USED FROM 160 HZ OR BIAMPED. EXTREMELY HIGH 105-DB (1-WATT/1-METER) SENSITIVITY AND 350-WATT LONG-TERM, 1,400-WATT SHORT-TERM POWER HANDLING FOR 135-DB PEAK OUTPUT - 95 LBS - 23" X 22" X 29" - 10"/1"(COAX) - HORNLOADED - 350W/8 OHM - 60ï½°X40ï½° CD HORN - BIAMP ABLE (LF:300W/8OHM, HF: 60W) - BLACK CARPET PURCHASE - SPK IN/OUT - 5 YEARS WARRANTY - NOTE: 160HZ/18DB-HP RECOMMENDED
MTL-1 CABINETS SPECS - SUBWOOFER FOR AUGMENTING THE LOW-FREQUENCY PERFORMANCE OF THE MTH-1 MID/HIGH MODULE, AND OTHER STAGE SYSTEMS - TWO DL18MT WOOFERS FOR RELIABLE, EXTENDED LOW-FREQUENCY OUTPUT - 800-WATT LONG-TERM POWER CAPACITY - HORN LOADING PROVIDES INCREASED THROW - RUGGED, ROAD-READY CABINET; METAL GRILLE; BLACK CARPET FINISH - NEUTRIK SPEAKON ï½® INPUTS - REAR CASTERS FOR IMPROVED PORTABILITY - FREQUENCY RESPONSE 50-160 HZ - LONG-TERM AVERAGE POWER-HANDLING 800 WATTS - SENSITIVITY 100 DB - BOX TUNING FREQUENCY 38 HZ - RECOMMENDED CROSSOVER FREQUENCY 160 HZ - CROSSOVER SLOPES 24 DB PER OCTAVE - IMPEDANCE NOMINAL: 4 OHMS MINIMUM: 3 OHMS - INPUT CONNECTIONS: TWO PARALLELED NEUTRIK SPEAKON ï½® CONNECTORS - ENCLOSURE BLACK, CARPET-COVERED 3/4-IN. VOID-FREE PLYWOOD - ENCLOSURE DIMENSIONS: H X W X D - 1.16 M X 572 MM X 758 MM - NET WEIGHT 70.3 KG (155 LB) - SHIPPING WEIGHT 81.6 KG (180 LB)
| Additional Details | |
| ID#: | 14985 |
| Listing Type: |
Standard
|
| Model: | MANIFOLD PA CABINETS |
| Manufacturer: | EV (ELECTROVOICE) |
| Condition: | GOOD (7-8) |
| Shipping Info: | 690.00 lbs., |
| Seller's Location: | IL, USA |
| Updated: | July 30, 2003 |
| M.S.R.P.: | $0.00 |
| Asking Price: | SOLD |
