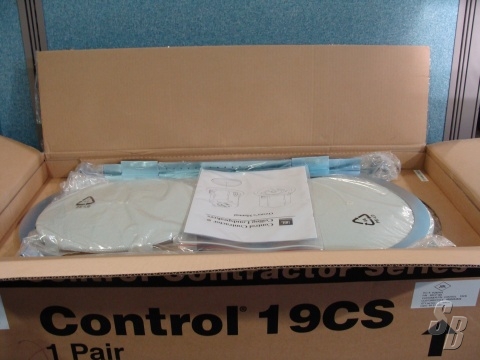

JBL CONTROL 19CS (YOM: ?) (S#: TBD) UNOPENED BOX - NEVER USED (10)
[PRICED PER UNIT - 14 AVAILABLE AT TIME OF LISTING]
Listing last update on February 28, 2013 - Viewed 127 times

JBL CONTROL 19CS (YOM: ?) (S#: TBD) UNOPENED BOX - NEVER USED (10)

FEATURES: FREQUENCY RANGE : 42 HZ - 200 HZ

POWER CAPACITY : 200 W CONTINUOUS
PROGRAM POWER

NOMINAL SENSITIVITY : 95 DB SPL, 1W @
1 M (3.3 FT) IN CEILING
NEAR CORNER (Π/2) 89 DB
SPL, 1W @ 1 M (3.3 FT)
IN CENTER OF CEILING (2 Π)

NOMINAL COVERAGE ANGLE : 180° CONICAL COVERAGE

RATED MAXIMUM SPL : 115 DB @ 1 M (3.3 FT) IN CEILING NEAR CORNER ( Π/2)

NOMINAL IMPEDANCE : 8 OHMS

LOW FREQUENCY : 200 MM (8.0 IN) POLYPROPELENE CONE.
38 MM (1.5 IN) COIL ON ALUMINUM FORMER

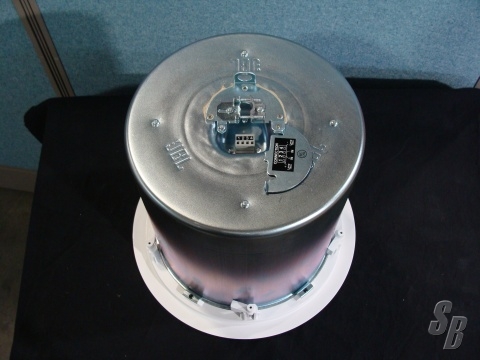

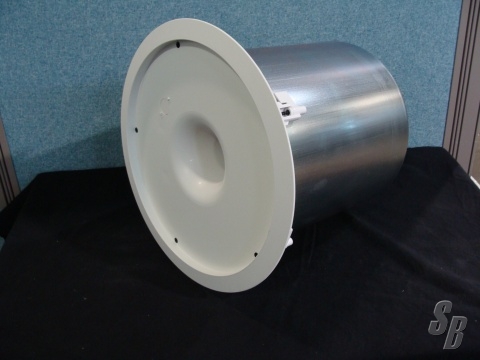

ENCLOSURE MATERIAL : BACKCAN: FORMED STEEL BAFFLE/RIM: MEDIUM IMPACT POLYSTYRENE, FIRE RATED UL94V-0

OVERLOAD PROTECTION : FULL-RANGE POWER LIMITING TO PROTECT NETWORK AND TRANSDUCERS. (ON CONTROL 19CS, NOT ON CONTROL 19CST)

TERMINATIONS : REMOVABLE LOCKING CONNECTOR WITH SCREW-DOWN TERMINALS. 2 INPUT TERMINALS AND 2 LOOP-THRU OUTPUT TERMINALS. MAX. WIRE SIZE 12 AWG (2.5 MM2)

SAFETY AGENCY RATING : IN ACCORDANCE WITH IEC60849 / EN60849. SUITABLE FOR USE IN AIR HANDLING SPACES, PER U.L.-2043, U.L.-1480, NFPA90, NFPA70A.

OUTSIDE DIMENSIONS (H X DIA) : 345 X 345 MM (13.6 X 13.6 IN) 318 MM (12.5 IN) FRONT OF CEILING TILE TO BACK OF BACKCAN

CUTOUT SIZE (H X W) : 305 MM (12.0 IN)

NET WEIGHT (EA) : 5.5 KG (12 LB

SHIPPING WEIGHT (PAIR) : CONTROL 19CS: T12.7 KG (28 LB)
CONTROL 19CST: 14.3 KG (32 LB)

INCLUDED ACCESSORIES : C-SHAPED SUPPORT BACKING PLATE 2 TILE SUPPORT RAILS (FITS BOTH 2 X 4 FT OR 600 X 1200 MM TILES) CUTOUT TEMPLATE PAINT SHIELD REMOVABLE LOCKING WIRING CONNECTOR




EXTRAS: NO EXTRA'S

MODIFICATIONS: NO MODIFICATIONS

HISTORY: NEW!!

COMMENTS: NEW!!

THIS UNIT WAS NEVER TOURED
