JBL SOUND SYSTEM 5 SPEAKERS PD5322-95, PD5322-64, PD5125CR-SOUND-SYSTEM-5-SPEAKERS-PD5322-95-PD5322-64-PD5125
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on November 26, 2014 - Viewed 153 times

JBL PD5322 (YOM: ?) (S#: MULTIPLE) GOOD (7-8)

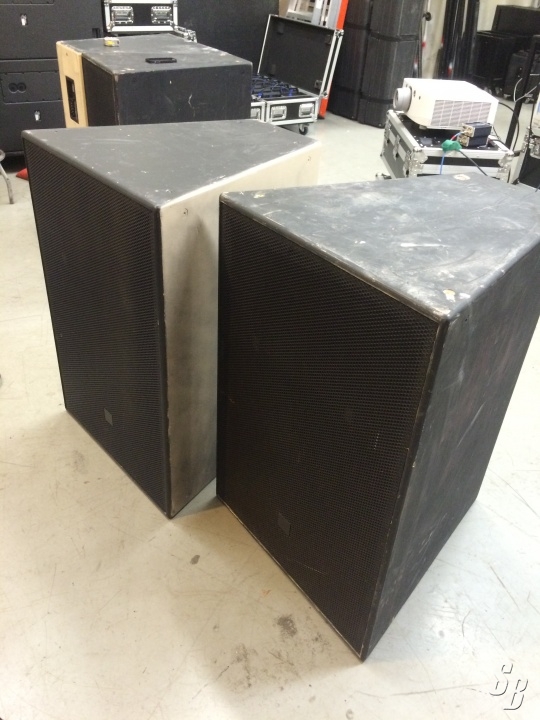

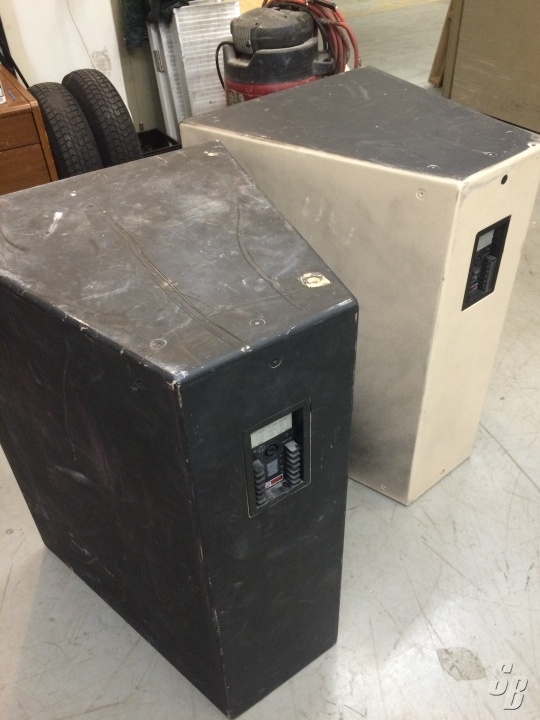

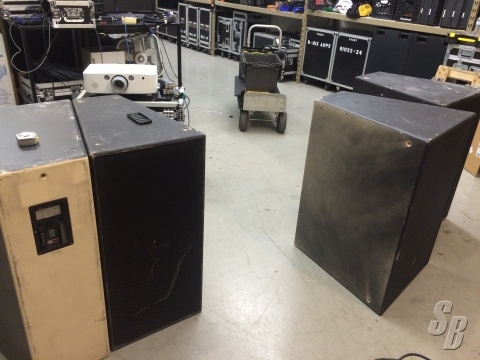

FEATURES: AUCTION INCLUDES:

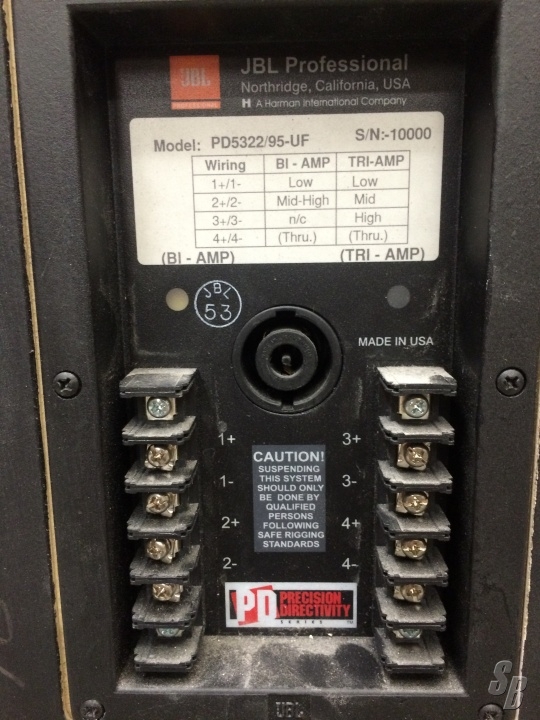

2X JBL PD5322/95-UF - (90X50DEG HORN)
(WERE USED AS L & R MAINS)

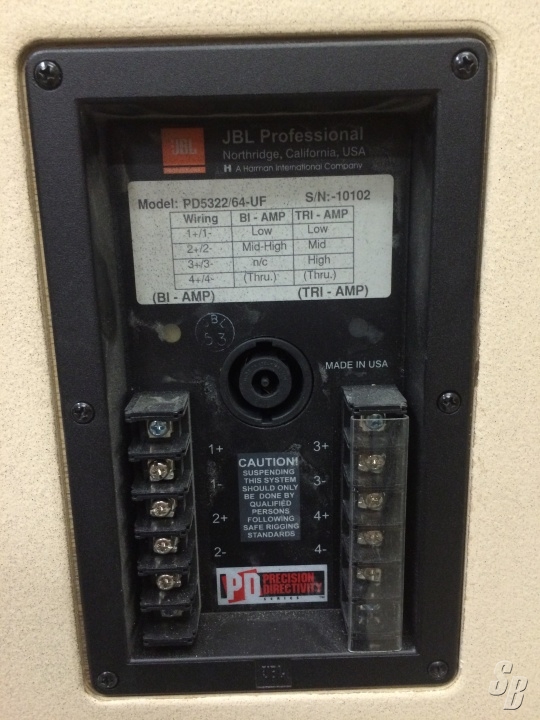

2X JBL PD5322/64-UF - (60X40DEG HORN)
(WERE USED AS CENTER CLUSTER)

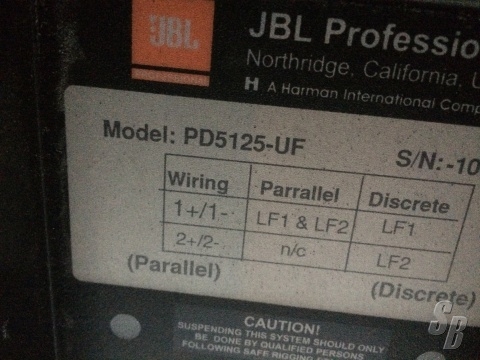

1X JBL PD5125-UF - (DUAL 15" SUB)
(WAS USED AS SUB ABOVE CENTER CLUSTER)

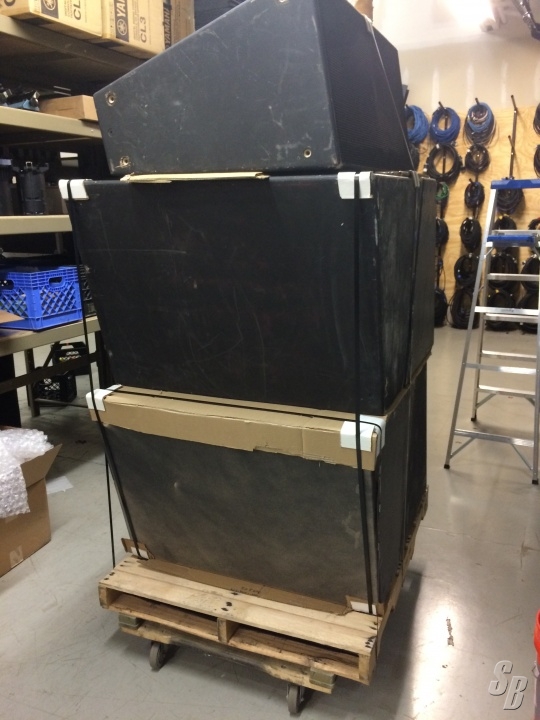

FREE FREIGHT TO THE CONTINENTAL USA.

INFO FROM MANUFACTURER :

(PD5322/95-UF & PD5322/95-UF) - ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• NOMINAL IMPEDANCE: 8 OHMS
• POWER CAPACITY:
L.F. 1600 W (6400 W PEAK), 2 HRS (AES) 1200 W (4800 W PEAK), 100 HRS
M.F. 350 W (1400 W PEAK), 100 HRS.
H.F. 75 W (300 W PEAK), 2 HRS
• FREQUENCY RANGE: 41 HZ – 17 KHZ (–10 DB)
• MAXIMUM SPL: TRI-AMP MODE:
L.F. 128 DB SPL CONT AVG (134 DB PEAK)
M.F. 134 DB SPL CONT AVG (140 DB PEAK)
H.F. 133 DB SPL CONT AVG (139 DB PEAK)
PASSIVE MODE: 134 DB SPL CONT AVG (140 DB PEAK)
• PASSIVE CROSSOVER: 6TH ORDER (36 DB/OCT) LINKWITZ-RILEY HP AND LP, 1.5 KHZ SYSTEM COMPONENTS:
• LOW FREQUENCY 300MM (12 IN.) DRIVER WITH 100MM (4 IN.) TRANSDUCER: VOICE COIL (2206HPL)
• MID FREQUENCY 200MM (8 IN) NEODYMIUM TRANSDUCER: DIFFERENTIAL DRIVE NDD™ DUAL 75MM (3 IN) VOICE COIL (2169H)
• HIGH FREQUENCY 38MM (1.5 IN.) EXIT COMPRESSION TRANSDUCER: DRIVER WITH 100MM (3 IN.) VOICE COIL (2431H)

(PD5125-UF) - ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• NOMINAL IMPEDANCE: 4 OHMS
• POWER CAPACITY:
L.F. 2000 W (8000 W PEAK), 2 HRS (AES) 1200 W (4800 W PEAK), 100 HRS
• FREQUENCY RANGE: 50 HZ – 125 HZ
• MAXIMUM SPL:
L.F. 128 DB SPL CONT AVG (134 DB PEAK)
PASSIVE MODE: 142 DB SPL CONT AVG (141 DB PEAK)
• LOW FREQUENCY 380MM (15 IN.) DRIVER WITH 100MM (4 IN.) TRANSDUCER: VOICE COIL (2226H)

EXTRAS: JUST THE SPEAKERS

MODIFICATIONS: NONE

HISTORY: INSTALLED IN 600 SEAT THEATER.

COMMENTS: GREAT THEATER / CLUB SYSTEM

THIS UNIT WAS NEVER TOURED
