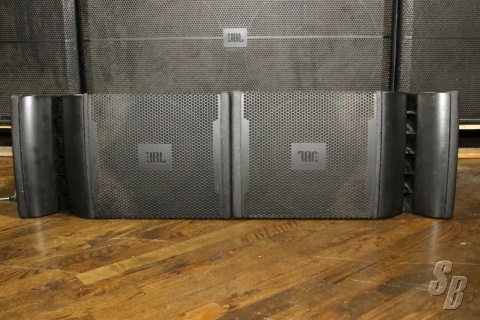

JBL VRX932LA
[PRICED PER UNIT - 4 AVAILABLE AT TIME OF LISTING]
Listing last update on January 06, 2016 - Viewed 289 times

JBL 932LA (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: FREQUENCY RANGE (-10 DB)1
: 57 HZ - 20 KHZ
FREQUENCY RESPONSE (±3 DB)1
: 75 HZ - 20 KHZ
COVERAGE PATTERN: 100° X 15° NOMINAL
CROSSOVER MODES: BI-AMP / PASSIVE, EXTERNALLY SWITCHABLE
CROSSOVER FREQUENCY: 1.2 KHZ
POWER RATING PASSIVE: 800 W / 1600 W / 3200 W
(CONTINUOUS/PROGRAM/PEAK)2
: BI-AMP LF: 800 W / 1600 W / 3200 W
BI-AMP HF: 75 W / 150 W / 300 W
SYSTEM MAXIMUM SPL2
: 130 DB SPL PEAK (PASSIVE MODE)
LF: 130 DB
HF: 139 DB
SYSTEM SENSITIVITY (1W @ 1M): 95 DB SPL (PASSIVE MODE)
LF: 95 DB (BI-AMP MODE)
HF: 114 DB3 (BI-AMP MODE)
LF DRIVER: 1 X JBL 2262H 305 MM (12 IN) DIFFERENTIAL DRIVE® WOOFER WITH
NEODYMIUM MAGNET, DUAL VOICE-COILS, AND DUAL MAGNETIC GAPS.
HF DRIVER: 3 X JBL 2408J, 38 MM (1.5 IN) VOICE-COIL, NEODYMIUM
COMPRESSION DRIVER
NOMINAL IMPEDANCE: PASSIVE: 8 OHM
BI-AMP LF: 8 OHMS
BI-AMP HF: 8 OHMS
ACTIVE TUNINGS: TUNINGS AVAILABLE AT WWW.JBLPRO.COM
ENCLOSURE: 18 MM, 11-PLY BIRCH PLYWOOD.
SUSPENSION / MOUNTING: OPTIONAL VRX-AF LINE ARRAY FRAME KIT; M-10 EYEBOLT KIT
FINISH: BLACK DURAFLEX™ FINISH
GRILLE: POWDER COATED, BLACK, 16-GAUGE PERFORATED STEEL WITH ACOUSTICALLY
TRANSPARENT FOAM
INPUT CONNECTORS: NEUTRIK® SPEAKON® NL-4 (X2)
DIMENSIONS (H X W X D): 349 MM X 597 MM X 381 MM
(13.75 IN X 23.5 IN X 15.0 IN)
NET WEIGHT: 21 KG (46 LB)

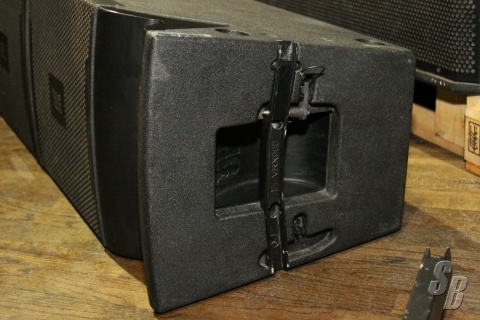

EXTRAS: 4 FLY BARS AVAILABLE BUT SOLD SEPARATELY

MODIFICATIONS: NO MODIFICATIONS

HISTORY: THESE WERE HUNG IN A VENUE FOR ABOUT 5 YEARS, CURRENTLY IN STORAGE.

COMMENTS: MINOR COSMETIC BLEMISHES

THIS UNIT WAS NEVER TOURED
