JBL VS3115 VENUE SERIES PA SPEAKER
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on June 01, 2006 - Viewed 804 times

DESCRIPTION: JBL VS3115 (?) (S#: VS1070-1205) SUPERB (8-9)

FEATURES: JBL VS3115 VENUE SERIES PA SPEAKER
THE MODEL VS3115 IS A TRUE, FULL-RANGE SYSTEM THAT PROVIDES UNPRECEDENTED BANDWIDTH AND MAXIMUM SPL, ALL IN A SINGLE SYSTEM PACKAGE. WITH NOMINAL 60° COVERAGE PATTERN, SYSTEMS CAN BE SPLAYED TOGETHER FOR INCREASED COVERAGE AND/OR SPL REQUIREMENTS. THE POWERFUL 15" VENTED GAP COOLED LF TRANSDUCER PROVIDES BASS WITH USEABLE RESPONSE TO 40 HZ. A NEWLY DESIGNED ROTATABLE, MIDRANGE/HIGH FREQUENCY WAVEGUIDE, USING OPTIMIZED APERTURE PRINCIPLES, COUPLED WITH AN 8" MID-CONE DRIVER AND THE 2426H, DELIVER CLEAR, CONTROLLED HIGHS AND EXTENDED MID-PATTERN CONTROL RESULTING IN EXCEPTIONAL CLARITY AND PROJECTION.
FEATURES
60° X 40° COVERAGE CONTROL DOWN TO 300 HZ
ROTATABLE MID-HIGH WAVEGUIDE ALLOWING FOR HORIZONTAL ENCLOSURE ORIENTATION

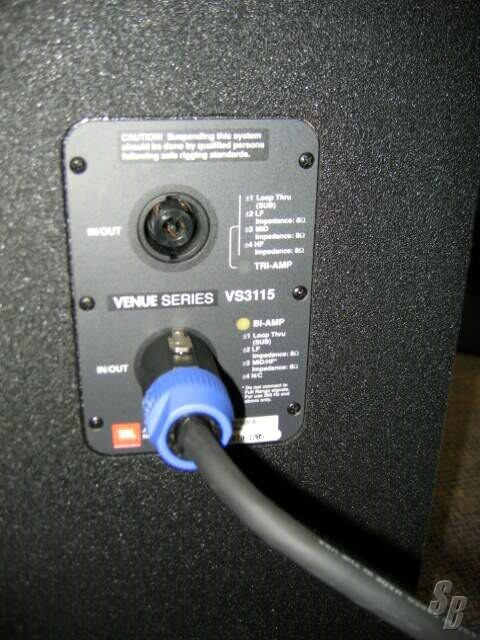

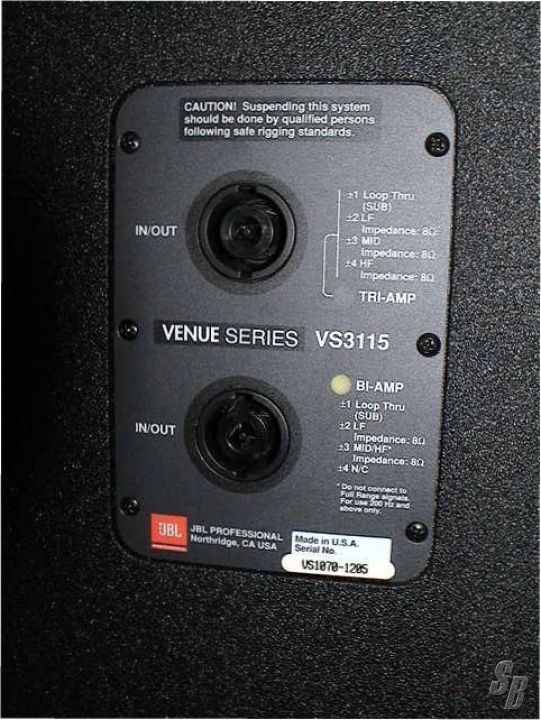

INTERNAL TAMPER RESISTANT SELECTOR ENABLES TRI-AMP OR BI-AMP OPERATION
VENTED GAP COOLED LF TRANSDUCER ALLOWS FULL RANGE USE DOWN TO 40 HZ
TRAPEZOIDAL ENCLOSURE FOR ARRAYING
DURAFLEX FINISH, TOUGH, WEATHER RESISTANT AND PAINTABLE
12 SUSPENSION POINTS (M10 THREAD)

SPECS
WEIGHT : 105 LBS.
WIDTH : 22.5 INCHES
HEIGHT : 36.4 INCHES
DEPTH : 22.5 INCHES


VS3115
THREE-WAY SYSTEM, 1 - 380MM (15"), 1-200MM (8") HORN-LOADED
MID-RANGE AND 44MM (1.75") DIAPHRAGM HF
COMPONENTS: 1-2226H VGC? LF, 1-M209-8A MF AND 1- 2426H COMPRESSION DRIVER.
SPECIFICATIONS:
32 HZ-18 KHZ, 600W AES LF (97DB) SENSITIVITY, 150W MF/HF IN MID/HIGH PASSIVE (BI-AMP) MODE, OR 150W MF (105DB) AND 50W HF (111DB) IN TRI-AMP MODE. FEATURES: 60° X 40° COVERAGE, ROTATABLE WAVEGUIDE ALLOWS HORIZONTAL ORIENTATION, MID-RANGE PATTERN CONTROL VIA LOW DISTORTION OPTIMIZED APERTURE? HORN DESIGN, 12 SUSPENSION POINTS (M10), ADVANCED NETWORK TOPOLOGY, TAMPER-RESISTANT BI-AMP/TRI-AMP SELECTOR, WEATHER RESISTANT.

EXTRAS: MANUALS AND CABLES INCLUDED

MODIFICATIONS: NONE

HISTORY: THIS WAS A PA VENUE SPEAKER USED AT SAUL ZAENTZ FILM CENTER (ONE FLEW OVER THE CUCKOO'S NEST, AMADEUS, THE LORD OF THE RINGS) IN BERKELEY, CA BEFORE IT CLOSED.

COMMENTS: SINCE THIS WEIGHS OVER 100 LBS, BUYER IS RESPONSIBLE FOR FREIGHT CHARGES OR CAN PICK UP SPEAKER IN NORTHERN CALIFORNIA.

THIS UNIT WAS NEVER TOURED
