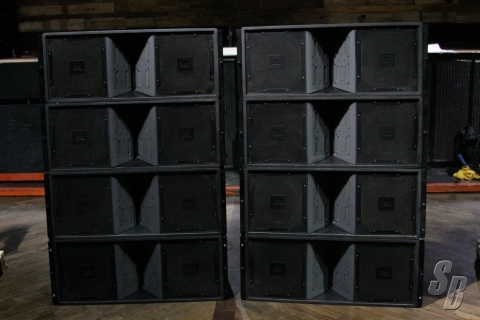

JBL VT4888 LINE ARRAY SPEAKERS
[PRICED PER UNIT - 8 AVAILABLE AT TIME OF LISTING]
Listing last update on January 06, 2016 - Viewed 315 times

JBL VT4888 (YOM: ?) (S#: TBD) GOOD (7-8)

FEATURES: LINE ARRAY ELEMENT
FREQUENCY RANGE (-10 DB): 48 HZ – 18 KHZ
FREQUENCY RESPONSE (±3 DB): 60 HZ – 16 KHZ
HORIZONTAL COVERAGE ANGLE (-6 DB): 90 DEG. NOMINAL (250 HZ – 16 KHZ)
VERTICAL COVERAGE ANGLE (-6 DB): VARIES WITH ARRAY SIZE AND CONFIGURATION
SYSTEM INPUT POWER RATING: LF: 2000 W CONTINUOUS, 8000 W PEAK (AES / 2 HOUR)
MF: 600 W CONTINUOUS, 2400 W PEAK (AES / 2 HOUR)
HF: 150 W CONTINUOUS, 600 W PEAK (AES / 2 HOUR)
MAXIMUM PEAK OUTPUT1
: 136 DB TO 146 DB, 1M (FREQUENCY/BANDPASS DEPENDENT)
RECOMMENDED AMPLIFICATION: LF: 2 X 1000-2000 W INTO 8 OHMS (2 X LF TRANSDUCERS POWERED
INDEPENDENTLY)
MF: 600 - 1200 W INTO 8 OHMS
HF: 300 - 600 W INTO 16 OHMS
RECOMMENDED SIGNAL PROCESSING: DBX® 4800, CROWN® I-TECH, BSS FDS-366T AND OTHER DIGITAL
SYSTEM CONTROLLERS SUPPORTED
TRANSDUCER SECTIONS
LOW FREQUENCY: TWO 2262H, 304 MM (12 IN) DIA., 76 MM (3 IN) DUAL COIL,
NEODYMIUM DIFFERENTIAL DRIVE®, DIRECT COOLED™
BANDPASS NOMINAL IMPEDANCE: 2 X 8 OHMS (LF TRANSDUCERS WIRED INDIVIDUALLY)
INPUT POWER RATING2
: 2 X 1000 W CONTINUOUS, 2 X 4000 W PEAK (AES / 2 HOUR)
2 X 700 W CONTINUOUS, 2 X 2800 W PEAK (100 HOUR)
BANDPASS SENSITIVITY: 98 DB, 1W/1M (2.83 VRMS AT 3.3 FT)
MID FREQUENCY: FOUR 2106HPL 138 MM (5.5 IN) WITH 50 MM (2 IN) DIA. VOICE
COIL
BANDPASS NOMINAL IMPEDANCE: 8 OHM (MF TRANSDUCERS WIRED IN SERIES PARALLEL)
INPUT POWER RATING2
: 600 W CONTINUOUS, 2400 W PEAK (AES / 2 HOUR)
400 W CONTINUOUS, 1600 W PEAK (100 HOUR)
BANDPASS SENSITIVITY: 102 DB, 1W/1M (2.83 VRMS AT 3.3 FT)
HIGH FREQUENCY: TWO 2431H, 76 MM (3 IN) DIAMETER ALUMINUM DIAPHRAGM,
38 MM (1.5 IN) THROAT DIAMETER NEODYMIUM COMPRESSION DRIVERS
BANDPASS NOMINAL IMPEDANCE: 16 OHMS (HF DRIVERS WIRED IN SERIES)
INPUT POWER RATING2
: 150 W CONTINUOUS, 600 W PEAK (AES / 2 HOUR)
BANDPASS SENSITIVITY: 114 DB, 1W/1M (2.83 VRMS AT 3.3 FT)
ENCLOSURE
BOX CONSTRUCTION: WEDGE FRUSTUM 5 DEGREE SIDE ANGLE ENCLOSURE. PLYMAX® ENGINEERED
WOOD COMPOSITE STRUCTURE, DURAFLEX™ FINISH, 6 HANDLES

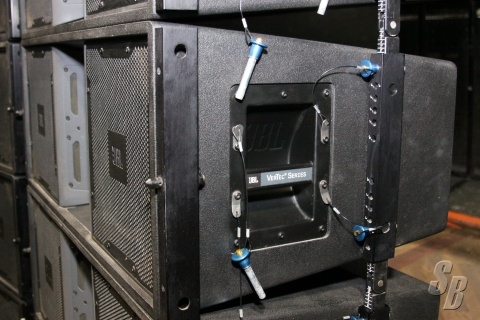

SUSPENSION SYSTEM: S.A.F.E. HARDWARE, INTEGRAL HINGE BARS NEST IN RIGGING TUBES ON
BOX ENDS. QUICK RELEASE PINS WITH RESTRAINING LANYARDS. SET OF
4 HINGE BARS INCLUDED. SUSPEND WITH VT4888-AF OR VT4888-
SF ARRAY FRAME.
GRILLE: SEPARATE LF AND HF, BLACK PERFORATED STEEL, LF GRILLES FOAM
BACKED.
INPUT CONNECTORS: NEUTRIK® SPEAKON® NL-8 (2X) PINS 1 +/- & 2 +/- FOR LOWS, PIN
3+/- FOR MIDS, PIN 4+/- FOR HIGHS
DIMENSIONS (W X H X D): 990.6 MM X 355.6 MM X 508 MM
(39 IN X 14 IN X 20 IN)
NET WEIGHT: 51 KG (113 LB)
SHIPPING WEIGHT: 59 KG (130 LB)

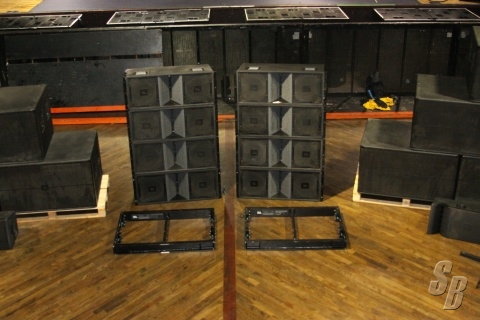

EXTRAS: JUST THE SPEAKER, NO COVER, NO WHEEL CART. THERE ARE 2 SMALL FLY BARS AND ANGLING HARDWARE AVAILABLE.

MODIFICATIONS: NO MODIFICATIONS

HISTORY: THESE WERE HUNG IN A MUSIC VENUE FOR ABOUT 5 YEARS. NEVER TOURED. RECENTLY TESTED AND IN STORAGE.

COMMENTS: SOME DISCOLORATION ON THE GRILL FOAM AND OTHER MINOR BLEMISHES.

THIS UNIT WAS NEVER TOURED
