K-ARRAY KR400S SYSTEM
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on July 16, 2014 - Viewed 325 times

K-ARRAY KR400S SYSTEM (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: FOR SALE:
KR400S SYSTEM

4X KR400 SATELLITE SPEAKER
2X KL21MA SUBWOOFER SPEAKER
4 COUPLING BRACKETS
SHORT COUPLING CABLES

MAXIMUM POWER HANDLING
POWER HANDLING 1500W(SUB) + 2X 720W(SAT) W(AES)
MAXIMUM AMPLIFIER POWER 2500W(SUB) + 2X 1200W(SAT) W(EIAJ)

IMPEDANCE
4Ω(SUB)+6Ω(SAT)

FREQUENCY RESPONSE
30HZ - 19KHZ +/- 3DB (PRESET RELATING)

MAX INPUT SOUND LEVEL (SPL)
132DB CONTINUOUS - 138DB PEAK

CROSSOVER
DSP CONTROLLED
FREQUENCY: 80HZ MINIMUM (PRESET DEPENDENT)

DRIVERS
LOW FREQUENCY: 21" NEODYMIUM SPEAKERS WITH 3" VOICE COIL
HIGH FREQUENCY: 2 X 12 X 3" NEODYMIUM SPEAKERS WITH 1" VOICE COIL

INPUT CONNECTIONS
CONNECTORS MALE + FEMALE PARALLEL 3-PIN BALANCED XLR
WIRING PIN1 = GROUND - PIN2 = HOT - PIN3 = COLD

OUTPUT CONNECTIONS
CONNECTOR 4-PIN FEMALE SPEAKON
WIRING: PIN1+=CH1+ PIN1=CH1- PIN2+=POINTER + PIN2=POINTER

REMOTE INPUT
2 X FEMALE 8 POLES RJ45

POWER INPUT
2 X POWERCON IN/OUT

AMPLIFIERS
TYPE: 1 MODULES CLASS D - DSP CONTROLLED
SUBWOOFER POWER: 1800 WATT
SATELLITE POWER OUTPUT: 1800 WATT
PROTECTION: DYNAMIC LIMITER, OVER CURRENT, OVER TEMP, SHORT CIRCUITS

AC POWER
OPERATING RANGE: 85 - 270 VAC 50-60HZ (AUTORANGE)
P.NOM: 900VAC
MAX OPERATING RANGE: 400VAC
MIN OPERATING VOLTAGE: 70VAC

DIMENSIONS
KL21MA: 21.85 X 21.85 X 30.59" (55.5 X 55.5 X 77.7CM)
KR400: 3.56 X 39.57 X 4.53" (8.8 X 100.5 X 11.5CM)

WEIGHT
KL21MA: 85.98 LBS (39KG)
KR400: 19.84 LBS (9KG) X2


EXTRAS: 4 COUPLING BRACKETS AND SHORT COUPLING CABLES

MODIFICATIONS: NONE

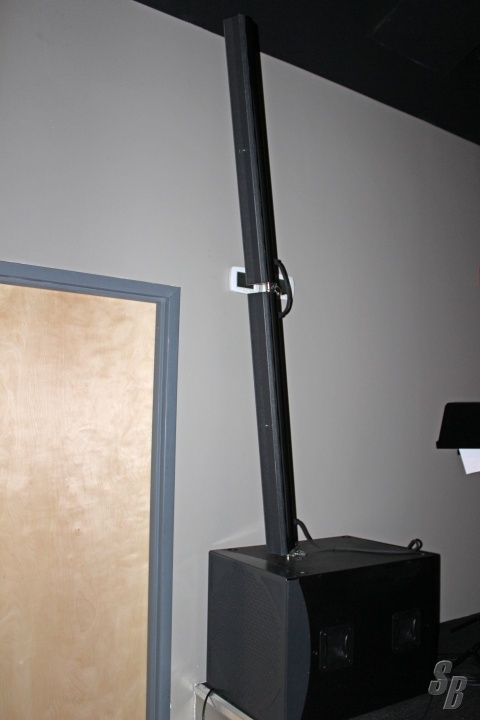

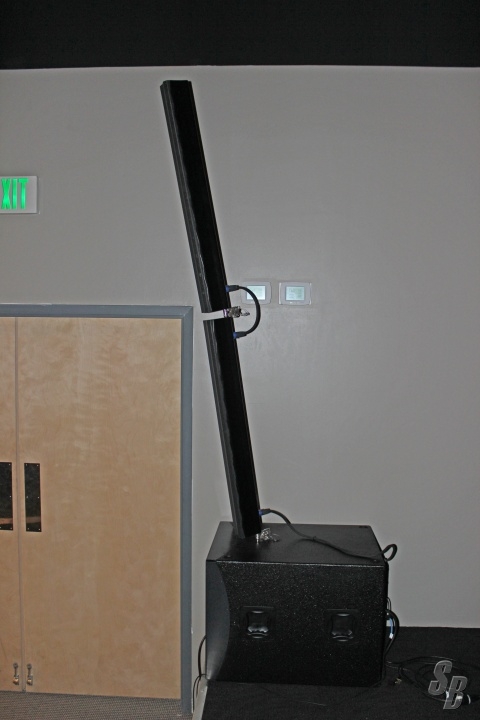

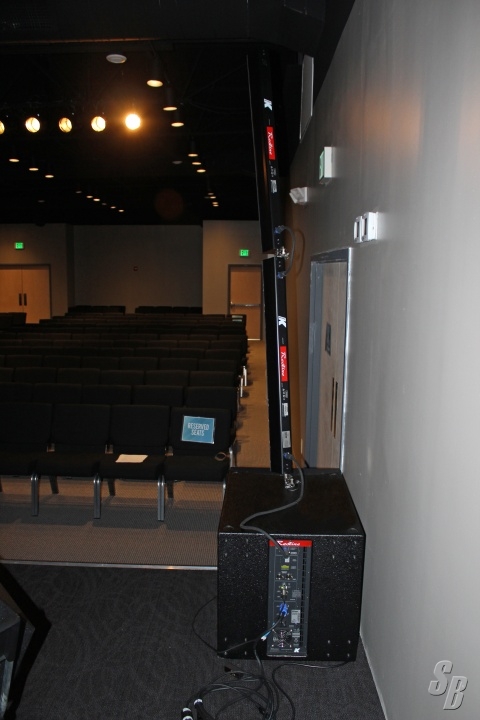

HISTORY: THIS SYSTEM HAS BEEN USED CONSERVATIVELY IN A SMALL CHURCH FOR SOUND REINFORCEMENT. IT WAS CONFIGURED FOR OUR SANCTUARY BY A PROFESSIONAL SOUND ENGINEER FROM A LOCAL AUDIOVISUAL COMPANY, AND IS USUALLY OPERATED BY THAT SOUND ENGINEER -OR BY SOMEONE HE HAS PERSONALLY TRAINED. IT HAS PERFORMED VERY WELL FOR US FOR BOTH VOICE AMPLIFICATION AND LIVE MUSIC FROM A 9 PIECE CONTEMPORARY WORSHIP BAND. WITH RECENT RELOCATION TO A NEW BUILDING (WE ARE GROWING), WE HAVE A NEED TO UPGRADE TO A LITTLE BIT LARGER SOUND SYSTEM, AND NEED TO SELL THIS ONE QUICKLY. THIS SYSTEM LISTS ON SOME WEBSITES FOR OVER $14,000. WE HAVE OWNED IT FOR A LITTLE LESS THAN A YEAR, AND HAVE TAKEN VERY GOOD CARE OF IT.


COMMENTS: LOCAL DEMO AVAILABLE BY APPOINTMENT AT OUR FACILITY

THIS UNIT WAS NEVER TOURED
