L ACOUSTIC ARC FOR SALE
[PRICED PER UNIT - 4 AVAILABLE AT TIME OF LISTING]
Listing last update on February 24, 2022 - Viewed 393 times

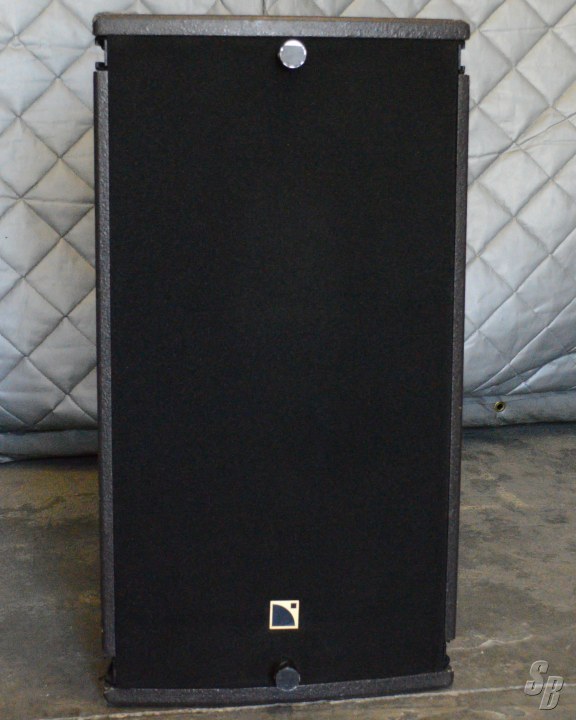

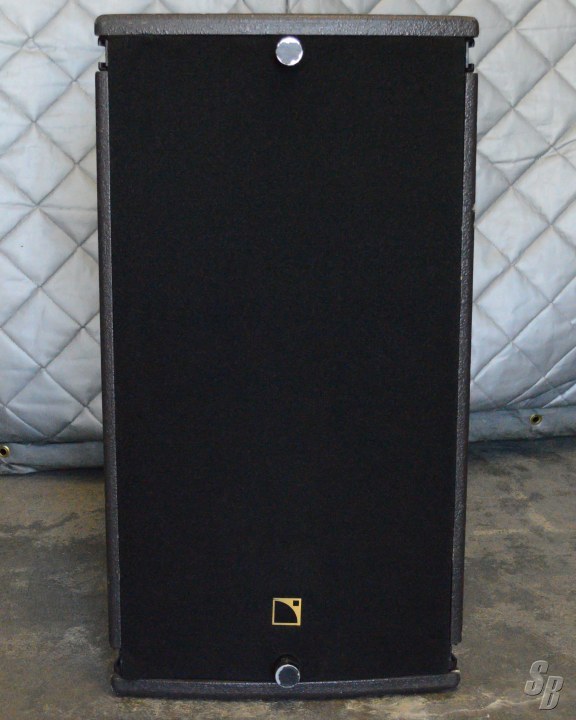

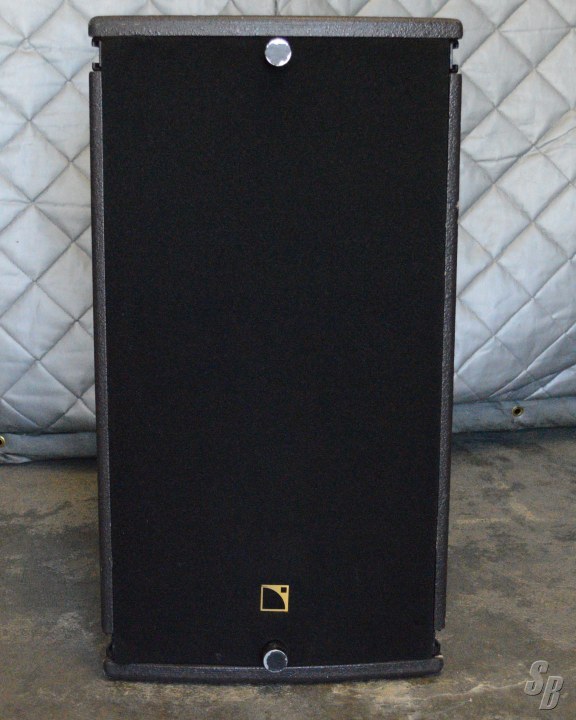

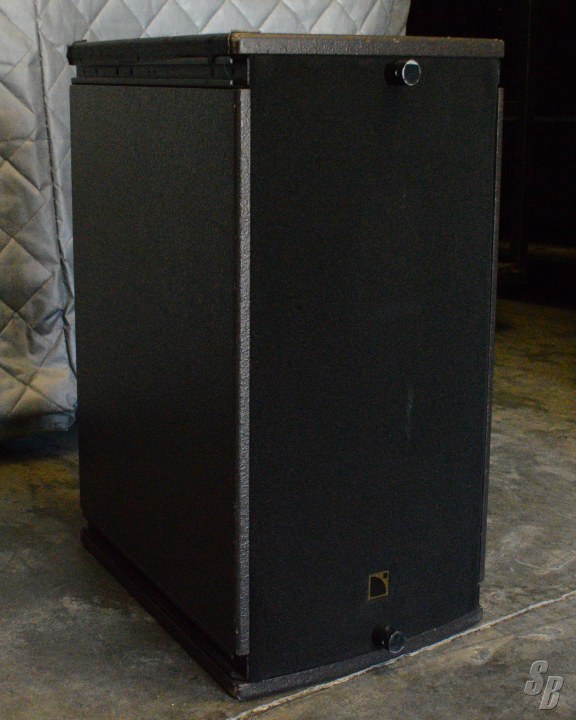

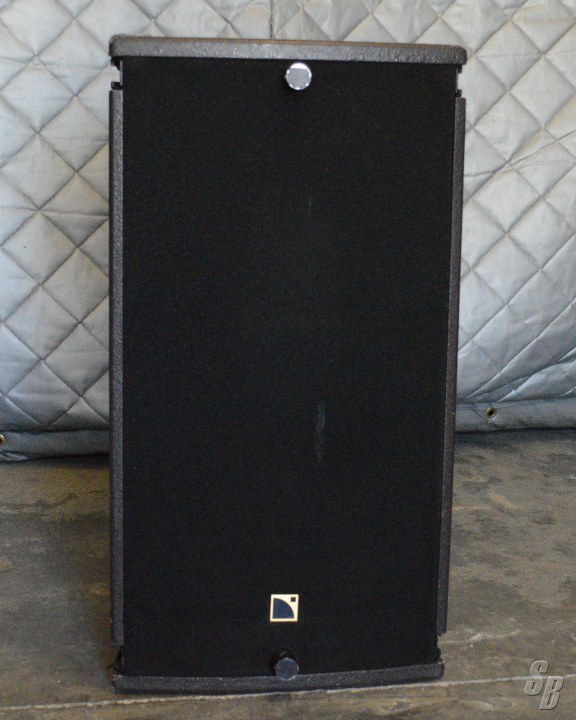

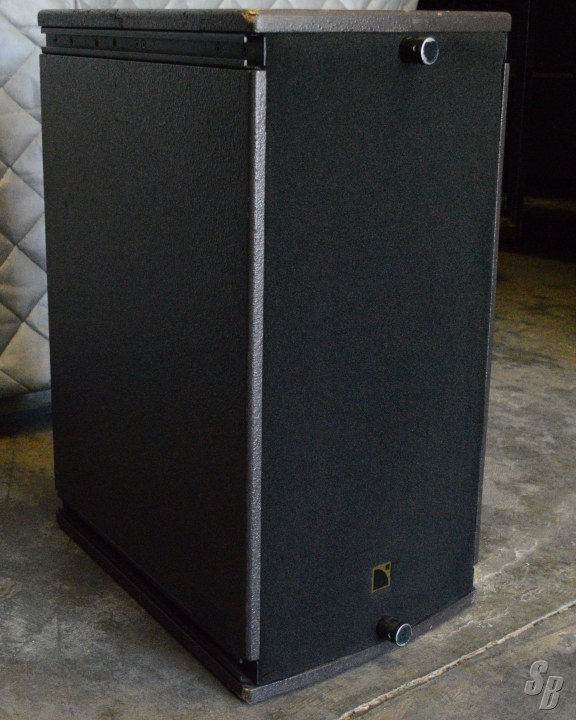

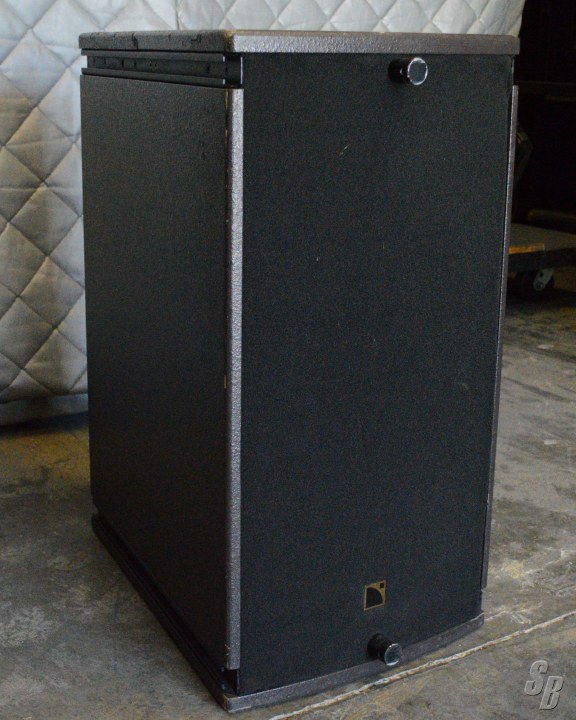

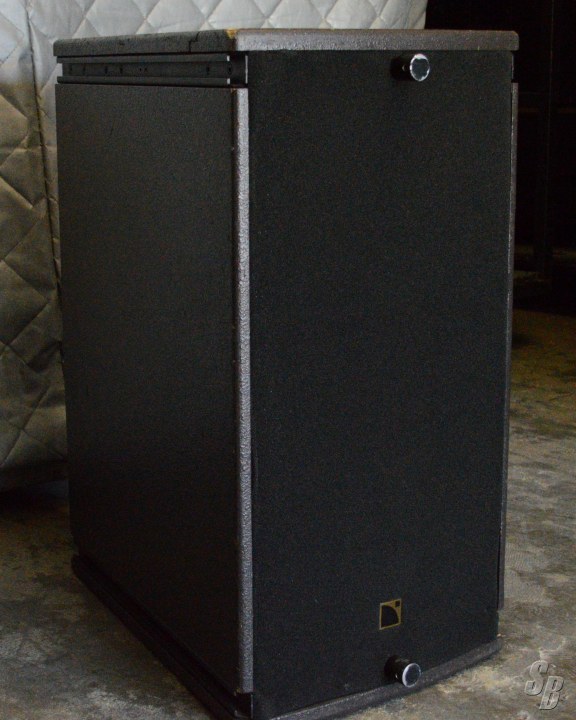

L ACOUSTIC ARC (YOM: 2010) (S#: 8861, 8860, 8859, 8858) GOOD (7-8) FEATURES:

L ACOUSTIC ARC FOR SALE.

EXTRAS:

SPEAKER COVER AND WHEEL BOARD INCLUDED

MODIFICATIONS:

NONE

HISTORY:

• THIS ITEM TOURED FROM 2010-2015
• HAS SINCE BEEN USED MINIMALLY

COMMENTS:

THIS UNIT WAS TOURED

MANUFACTURER DESCRIPTION:

AS A FULL RANGE, TWO-WAY SYSTEM ARCS CAN BE USED FOR FRONT-OF-HOUSE (FOH) SOUND REINFORCEMENT IN CORPORATE, TELEVISION OR THEATRICAL APPLICATIONS. DUE TO ITS OPTIMUM SPEECH REPRODUCTION AND SMALL PHYSICAL FOOTPRINT, ARCS IS ALSO HIGHLY EFFECTIVE AS A FLOWN CENTER CLUSTER FOR THEATRICAL INSTALLATIONS. FOR LARGE-SCALE FIXED INSTALLATION, DISTRIBUTED ARRAYS CAN BE EMPLOYED FOR STADIUM AND ARENA SOUND REINFORCEMENT. IN THESE APPLICATIONS, ARCS CAN BE INSTALLED EITHER SINGLE OR ARRAYED, VERTICALLY OR HORIZONTALLY, AND THE PRECISE, MODULAR 22.5° HORIZONTAL DIRECTIVITY COMBINED WITH THE GENEROUS 60° VERTICAL COVERAGE ALLOWS FOR COST-EFFECTIVE COVERAGE.

THE ENCLOSURE SHALL BE AN ACTIVE, 2-WAY LOUDSPEAKER CONTAINING ONE DIRECT RADIATING, BASS REFLEX-LOADED 15-INCH LOW FREQUENCY TRANSDUCER AND ONE 1.4'' EXIT, TITANIUM DIAPHRAGM COMPRESSION DRIVER THAT IS COUPLED TO A WAVEGUIDE WHICH IS THEN LOADED BY A CYLINDRICAL HORN THAT PROVIDES AN ASYMMETRICAL VERTICAL COVERAGE ANGLE OF +40°, -20° (-6 DB POINTS). AS A FULL RANGE SYSTEM, THE FREQUENCY RESPONSE SHALL BE 63 HZ TO 18 KHZ WITH LESS THAN ± 3 DB VARIATION AND THE USABLE BANDWIDTH SHALL BE 50 HZ TO 20 KHZ (-10 DB).
