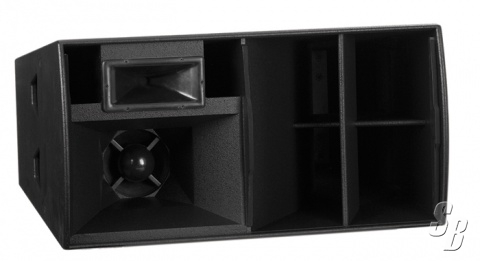

MARTIN H3H+ BLACKLINE THREE-WAY BI-AMP TRAPEZOID HYBRID FULLY HORN LOADED
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on January 05, 2016 - Viewed 159 times

MARTIN H3H+ BLACKLINE THREE-WAY BI-AMP TRAPEZOID HYBRID FULLY HORN LOADED

THE BLACKLINE H3H+ IS A VERY HIGH PERFORMANCE, ALL-HORN, THREE-WAY SYSTEM IN A SINGLE, HORIZONTALLY FORMATTED, WIDE-BANDWIDTH PACKAGE. NEW DRIVERS HAVE BEEN DEVELOPED FOR IMPROVED PERFORMANCE IN ALL BANDS. THE HYBRID® LOW FREQUENCY SECTION COMPRISES A HORN-LOADED 15” (380MM)/4” (100MM) VOICE COIL DRIVER THAT IS REFLEX LOADED TO EXTEND THE LF OUTPUT TO BELOW THE NATURAL CUT-OFF POINT OF THE HORN. THE NEW LF DRIVER FEATURES A WATER RESISTANT CONE AND TRIPLE ROLL SURROUND FOR INCREASED EXCURSION.

THE MID-HORN OF THE H3H+ HAS A UNIQUE ‘PHASE-BALL’ LOADING DEVICE WHICH MAINTAINS THE CONSTANT DIRECTIVITY CHARACTERISTICS OF THE HORN AT THE UPPER END OF ITS RANGE. IT IS DRIVEN BY A NEW 10” (250MM) MIDRANGE DRIVER WITH AN ALUMINIUM DEMODULATING RING FOR IMPROVED HIGH-MID CLARITY AND REDUCED DISTORTION WHEN DRIVEN HARD. THE 70° X 40° HF SECTION OF THE H3H+ FEATURES A NEODYMIUM 1” (25MM) EXIT COMPRESSION DRIVER WITH A KAPTON DIAPHRAGM FOR HIGH SENSITIVITY AND EXTENDED HF PERFORMANCE. THE INTERNAL MID/HIGH PASSIVE CROSSOVER ALLOWS THIS THREE-WAY SYSTEM TO BE DRIVEN IN A BI-AMP CONFIGURATION.

A MARTIN AUDIO M3+ OR DX1.5 ELECTRONIC CONTROLLER IS AVAILABLE TO PROVIDE H3H+ CROSSOVER AND LIMITER FACILITIES.

MANUFACTURERS A STOCK

BRAND NEW WITH FULL WARRANTY
