MARTIN XD15 VERY HIGH-OUTPUT TWO-WAY SYSTEM
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on January 05, 2016 - Viewed 114 times

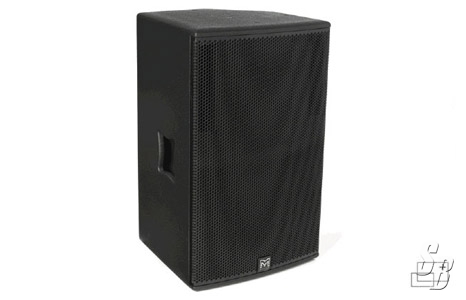

XD15 VERY HIGH-OUTPUT TWO-WAY SYSTEM

THE XD15 IS A VERY HIGH-OUTPUT, WIDE-BANDWIDTH, TWOWAY SYSTEM EQUALLY SUITED TO PORTABLE LIVE SOUND APPLICATIONS, THEATRE SOUND AND FIXED INSTALLATIONS. IT FEATURES A HIGH-SPECIFICATION 15” (380MM) LOW FREQUENCY DRIVE UNIT AND A 1.4” (35MM) EXIT COMPRESSION DRIVER MOUNTED ON A USER-ROTATABLE 80° X 50° CONSTANT DIRECTIVITY
HORN.

THE 15” (380MM) LF DRIVER HAS A LIGHTWEIGHT 4” (100MM) VOICE COIL AND FLUX DEMODULATION RINGS TO REDUCE DISTORTION AT HIGH EXCURSIONS. ITS NEODYMIUM MOTOR SYSTEM COMBINES HIGH SENSITIVITY WITH LOW WEIGHT AND ADVANCED COOLING REDUCES POWER COMPRESSION TO NEGLIGIBLE LEVELS. THE 1.4” (35MM) EXIT HF DRIVER HAS A 3” (75MM) PURE TITANIUM DOME AND ULTRA-HIGH FLUX NEODYMIUM MOTOR SYSTEM FOR
MAXIMUM EFFICIENCY. THE INTERNAL LF/HF CROSSOVER IS SWITCHABLE BETWEEN PASSIVE OR BI-AMP OPERATION, DEPENDING ON USER REQUIREMENTS.

THE XD15 IS THE PERFECT SOLUTION FOR VERY HIGH-POWER APPLICATIONS WHERE FLEXIBILITY, EASE OF INSTALLATION AND SPEED OF DEPLOYMENT ARE IMPORTANT FACTORS. THE VERSATILE, MULTIANGLE ENCLOSURE AND ROTATABLE HORN FACILITATE EITHER HORIZONTAL OR VERTICAL ORIENTATION, AND COMPREHENSIVE BRACKETS SUPPORT THE FULL VARIETY OF MOUNTING OPTIONS – INCLUDING SURFACE, CEILING AND POLE MOUNT. INTEGRAL M8 INSERTS FOR SIMPLE EYEBOLT SUSPENSION INCREASE THE OPTIONS EVEN FURTHER. IN ITS HORIZONTALCONFIGURATION, THE XD15 IS ALSO IDEAL AS A VERY HIGH-OUTPUT STAGE MONITOR.

WHEN USED IN BI-AMP MODE, OR WITH A SUBWOOFER SUCH AS THE WAVEFRONT WS18X OR WS218X IT IS RECOMMENDED THAT THE XD15 IS USED WITH THE MARTIN AUDIO DX1.5 OR DX2 CONTROLLER.

WHEN OPERATED AS A PASSIVE SYSTEM, IT MAY BE USED WITHOUT A CONTROLLER, BUT WILL BENEFIT FROM THE DX1.5 OR DX2'S EQ AND LIMITER FUNCTIONS.

MANUFACTURERS A STOCK

BRAND NEW WITH FULL WARRANTY
