MEYER SOUND CONCERT SERIES LOUDSPEAKERS - MSL-6
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on February 12, 2013 - Viewed 150 times

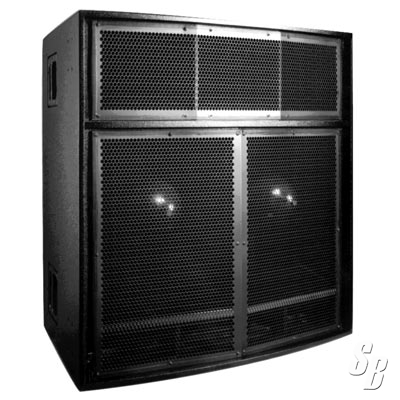

MEYER MSL6 HORN-LOADED HIGH-Q MAIN LOUDSPEAKER, ARRAYABLE WITH PIVOTING LIFT RINGS.

DESIGNED SPECIFICALLY FOR VERY LARGE-SCALE SOUND REINFORCEMENT, THE SELF-POWERED MEYER SOUND MSL-6 IS IDEALLY SUITED AS A STAND-ALONE SYSTEM FOR VOCAL PUBLIC ADDRESS APPLICATIONS. FOR HIGH-POWERED MUSIC REINFORCEMENT, IT WORKS IN COMBINATION WITH MEYER SOUND SUBWOOFERS AND/OR THE DS-2P AND DS-4P HORN-LOADED MID-BASS LOUDSPEAKERS.

THE MSL-6 CONTAINS TWO 12-INCH LOW-FREQUENCY CONE DRIVERS AND THREE HIGH-FREQUENCY COMPRESSION DRIVERS IN AN ARRAYABLE, TRAPEZOIDAL CABINET WITH INTEGRAL ELECTRONICS. THE CENTER AND OUTER HIGH-FREQUENCY HORNS UTILIZE SEPARATE AMPLIFIERS AND CONTROL ELECTRONICS TO ACHIEVE A 30ï½° HORIZONTAL COVERAGE ANGLE. THE MSL-6æ‹… 25ï½° VERTICAL COVERAGE ANGLE ALLOWS LONG-THROW ARRAYS OF UP TO THREE VERTICAL ROWS WITH MINIMAL HIGH-FREQUENCY OVERLAP.

AN INTEGRATED, FOUR-CHANNEL AMPLIFIER WITH COMPLEMENTARY POWER MOSFET OUTPUT STAGES PROVIDES TOTAL PEAK POWER OF 2480 WATTS (620 WATTS/CHANNEL, FOUR CHANNELS). THE MSL-6 FEATURES TRUPOWER LIMITING, PHASE-CORRECTED CONTROL ELECTRONICS AND AN INTELLIGENT AC POWER SUPPLY.

THE MSL-6æ‹… STANDARD RIGGING HARDWARE COMPRISES 12 PIVOTING LIFT RINGS WITH A 5:1 SAFETY FACTOR. AN INTERNAL STEEL FRAMEWORK CARRIES ALL LOAD STRESSES. AN OPTIONAL MRF-6 RIGGING FRAME ALLOWS INTEGRATION OF THE MSL-6 INTO QUICKFLY SYSTEMS. THE MSL-6 IS COMPATIBLE WITH MEYER SOUNDæ‹… RMS (REMOTE MONITORING SYSTEM), WHICH PROVIDES COMPREHENSIVE MONITORING OF OPERATING PARAMETERS OVER A WINDOWS-BASED NETWORK. OPERATING FREQUENCY RANGE ... ï½±4 DB 65 HZ - 16 KHZ PHASE RESPONSE ... ï½±30ï½° 250 HZ - 12 KHZ MAXIMUM SPL (2) ... 145 DB @ 1 METER DYNAMIC RANGE ... 110 DB CROSSOVER ... 500 HZ - 1 KHZ COVERAGE ... 30ï½° HORIZONTAL X 25ï½° VERTICAL TRANSDUCERS LOW FREQUENCY ... TWO 12" CONE DRIVERS HIGH FREQUENCY ... THREE 2" THROAT, 4" DIAPHRAGM COMPRESSION DRIVERS

HF DC PROTECTION ... THREE 20 MF CAPACITORS

AUDIO INPUT TYPE ... 10 K OHM IMPEDANCE, ELECTRONICALLY BALANCED

CONNECTOR ... FEMALE XLR INPUT AND MALE XLR LOOP OUTPUT OR VEAM

NOMINAL INPUT LEVEL ... +4 DBU (1.23 VRMS)

AMPLIFIERS TYPE ... COMPLEMENTARY POWER MOSFET OUTPUT STAGES CLASS AB/H

BURST CAPABILITY (3) ... 2480 WATTS (620 WATTS/CHANNEL, FOUR CHANNELS)

THD, IM, TIM ... < 0.02 %

AC POWER CONNECTOR ... 250 V NEMA L6-20P, IEC 309 MALE INLET OR VEAM (4)

AUTOMATIC VOLTAGE SELECTION ... 85 - 134 VAC; 165 - 264 VAC; 50/60 HZ (5)

OPERATIONAL VOLTAGE RANGE ... TURN ON: 85 VAC; TURN OFF: 134 VAC; 50/60 HZ

... TURN ON: 165 VAC; TURN OFF: 264 VAC; 50/60 HZ

MAX. CONTINUOUS RMS CURRENT (>10 SEC) ... AT 115 V: 14 A RMS. AT 230 V: 7 A RMS AT 100 V: 16 A RMS

BURST RMS CURRENT (<1 SEC) ... AT 115 V: 26 A RMS AT 230 V: 13 A RMS AT 100 V: 30 A RMS

MAX PEAK CURRENT DURING BURST ... AT 115 V: 36 A PK AT 230 V: 18 A PK AT 100 V: 42 A PK

INRUSH CURRENT ... < 12 A AT 115 V NOTES 1. MEASURED AT 3 METERS ON-AXIS, FREE-FIELD CONDITIONS, PINK NOISE INPUT, THIRD-OCTAVE BANDS. 2. INTERPOLATED TO 1 METER. 3. NOMINAL 8 OHM RESISTIVE LOAD, PINK NOISE, 100 V PEAK. 4. OTHER CONNECTORS AVAILABLE. FOR EUROPEAN INSTALLATIONS, AN IEC 309 CONNECTOR (16 A) CAN BE INSTALLED. 5. THE UNIT IS RATED AT 95 - 125 VAC AND 208 - 235 VAC, 50/60 HZ, TO SATISFY EC STANDARDS FOR 10% TO 6% AC LINE VOLTAGE.

PLEASE ALLOW 4 TO 6 WEEKS FOR DELIVERY.

ALL CONCERT SERIES LOUDSPEAKER SYSTEMS ARE PAINTED WITH BLACK, TEXTURED FINISH (SEE FINISH & WEATHER PROTECTION OPTIONS). ALL ARE AVAILABLE WITH THE RMS REMOTE MONITORING SYSTEM CIRCUITRY (SEE RMS SECTION FOR MORE INFORMATION). UNLESS OTHERWISE STATED, ALL PRODUCTS COME STANDARD WITH RING AND STUD RIGGING FITTINGS. ALTERNATE RIGGING IS AVAILABLE. SEE THE QUICKFLY SECTION FOR MORE INFORMATION. CONCERT SERIES SYSTEMS ARE AVAILABLE WITH THREE CONNECTOR OPTIONS. SEE THE CONNECTORS SECTION FOR MORE INFORMATION.

CLICK HERE FOR MORE INFORMATION

BRAND NEW FROM MANUFACTURER WITH FULL FACTORY WARRANTY, FOB CA.
