TAD TD-2001 NIB

Listing last update on November 22, 2011 - Viewed 100 times

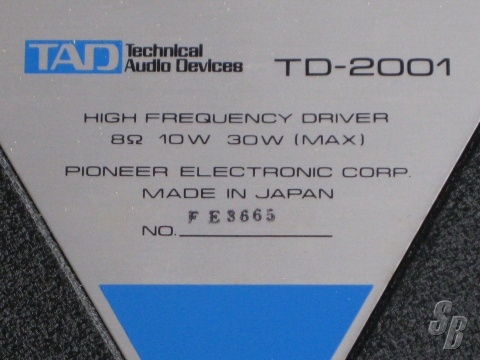

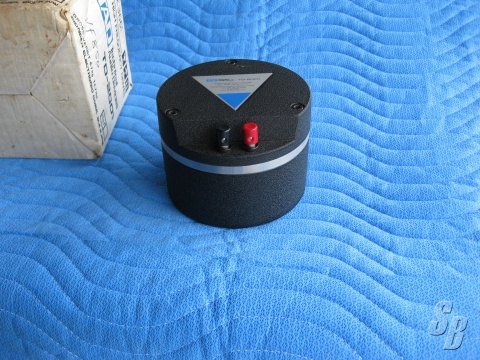

TAD TAD TD-2001 (YOM: ?) (S#: 3665) LIKE NEW IN ORIGINAL PACKAGING (10)

FEATURES: FORM DRIVER UNIT
VOICE COIL IMPEDANCE 8OHM
VOICE COIL APERTURE 48MM(2INCH)
PHASING PLUG 3-FOLD SLIT TYPE
PLAY FREQUENCY BAND 500HZ - 22KHZ
THE MAXIMUM INPUT 30W (800HZ, -12 DB/OCT)
OUTPUT SOUND PRESSURE LEVEL 109DB/W/M
CROSS OVER FREQUENCY 800HZ OR MORE (12 OR MORE DB/OCT OF BARRIER PROPERTIES)
THE TOTAL MAGNETIC FLUX 68,500MAXWELL
FLUX DENSITY 18,000GAUSS
SLOAT TERMINAL AREA HOLE DIAMETER 25.4MM(1INCH)

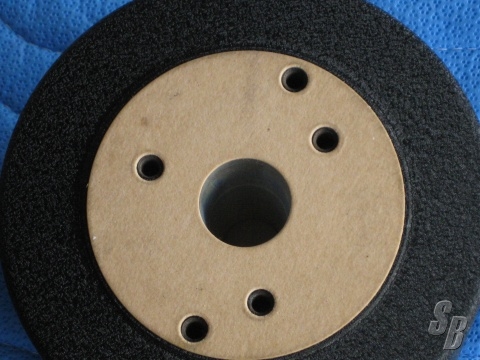

MOUNTING DIMENSIONS 76.2MM (2 HOLE TYPE)
57.2MM (3 HOLE TYPE)
DIMENSIONS DIAMETER PHI141X DEPTH OF 110MM
WEIGHT 6.4KG
ADJUNCT FIXING SCREW (HEXAGON-HEADED-BOLT M6X16) X3
COMMON WASHER X3
SPANNER X1
OPTION DIAPHRAGM ASSAY FOR A REPAIRING DP-2001
(50,000YEN (AROUND THE 05 TIME), 35,000YEN(AROUND THE 99 TIME))

EXTRAS: NO

MODIFICATIONS: NONE

HISTORY: HAS NOT BEEN USED

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
