WESTLAKE BBSM-10 STUDIO MONITOR PAIR
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on August 31, 2010 - Viewed 662 times

WESTLAKE BBSM-10 (YOM: ?) (S#: 353/354) SUPERB (8-9)

FEATURES: THE BBSM-10 IS A 3-WAY, MEDIUM POWER, PHASE COHERENT MONITOR WITH AN INTERNAL HIGH LEVEL CROSSOVER. GREAT DETAIL COMBINED WITH LOW DISTORTION MAKES THIS THE PERFECT CHOICE.

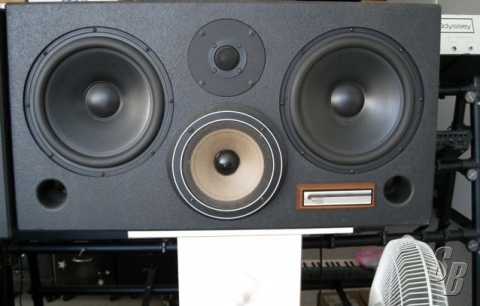

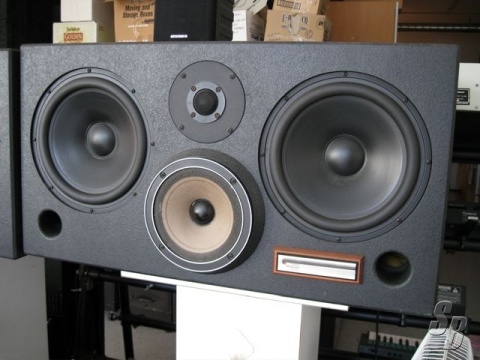

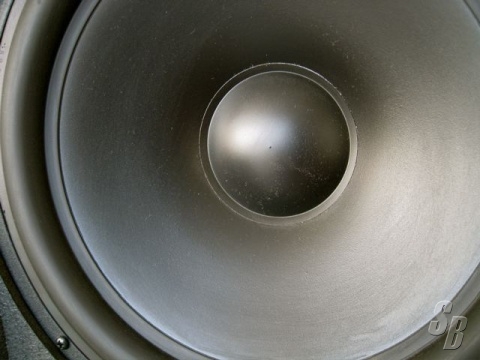

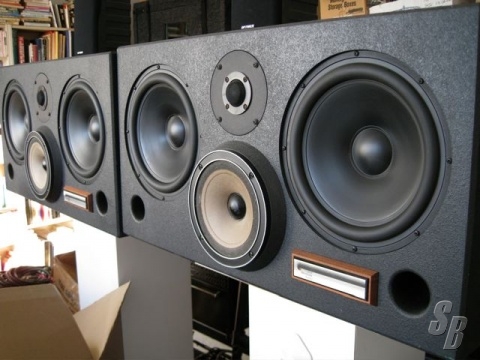

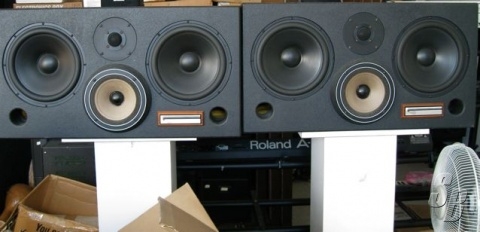

THESE USED UNITS ARE THE MODEL PREFERRED BY BRUCE SWEDIEN FOR HIS PRODUCTION WORK. UTILITY BLACK FINISH, 2 TEN INCH WOOFERS, 6.5 INCH MIDRANGE, 1.25 INCH SOFT DOME TWEETER. UNITS ARE TIME ALIGNED IN A HEAVILY CONSTRUCTED AND DAMPED ENCLOSURE. WIRING PERMITS BIAMPING. THEY ARE DESIGNED FOR A HORIZONTAL ORIENTATION AS MID FIELD STUDIO MONITORS. HAND MADE IN THE L.A. AREA. I SUGGEST 100W RMS PER CHANNEL MINIMUM AMP WITH THESE. CAN BE USED WITH 250 W RMS PER CHANNEL AMP.


SPECIFICATIONS
BBSM-10 3-WAY MIDFIELD / MAIN MONITOR
WOOFER 2 X 10"
MIDRANGE 1 X 6.5"
TWEETER 1 X 1.25"
FREQUENCY RESPONSE ( +/- 3DB ) 45HZ-20KHZ
POWER IEC SHORT/LONG 115W/360W
SENSITIVITY @ 1M/2.83V 92DB
CROSSOVER FREQUENCY 600HZ / 4KHZ
IMPEDANCE NOMINAL/MINIMUM 4/2
INPUTS HEAVY DUTY BARRIER STRIP
DIMENSIONS: H X W X D (INCH) 16 X 30 X 21.5
DIMENSIONS: H X W X D (CM) 40.6 X 76.2 X 54.6
WEIGHT: LBS. / KG. 150 LBS. / 68 KGS.
FINISH BLACK UTILITY PAINT

EXTRAS: ORIGINAL BARRIER STRIPS CONNECTORS INCLUDED

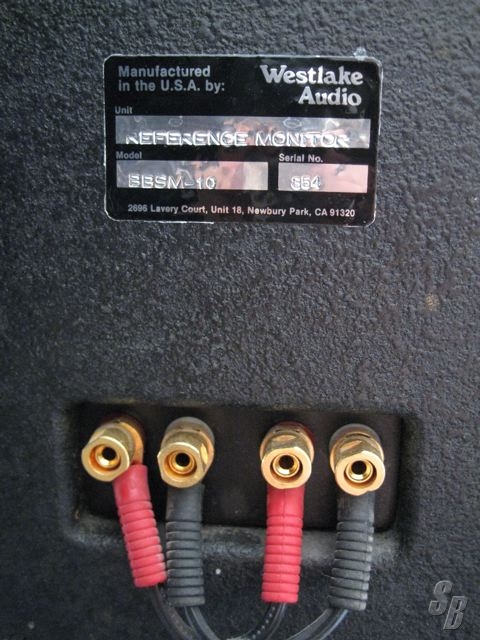

MODIFICATIONS: ORIGINAL BARRIER STRIPS UPGRADED WITH GOLD PLATED BANANA LUG CONNECTOR ARRAY.

HISTORY: USED IN A RECORDING STUDIO AS RECORDING AND MIXING MONITORS IN A NON-SMOKING ENVIRONMENT.

COMMENTS: THESE ARE SOME OF THE FINEST MONITORS EVER MADE AND HAVE BEEN PREFERRED BY A VARIETY OF DISCERNING RECORDING ENGINEERS AND ARTISTS FOR THE PAST TWENTY YEARS, INCLUDING BRUCE SWEDIEN AND JULIAN LENNON. THESE ARE MY PERSONAL FAVORITE MONITORS TO WORK WITH.

THIS UNIT WAS NEVER TOURED
