ID # 40416    CURRENT CATEGORY - SPEAKERS

YORKVILLE TX4
[PRICED PER UNIT - 4 AVAILABLE AT TIME OF LISTING]
Listing last update on August 06, 2009 - Viewed 163 times

Click on thumbnail to enlarge

YORKVILLE TX4
[PRICED PER UNIT - 4 AVAILABLE AT TIME OF LISTING]

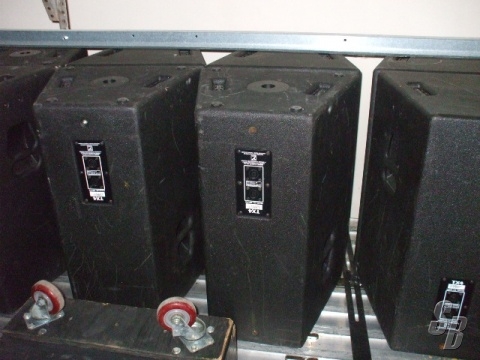

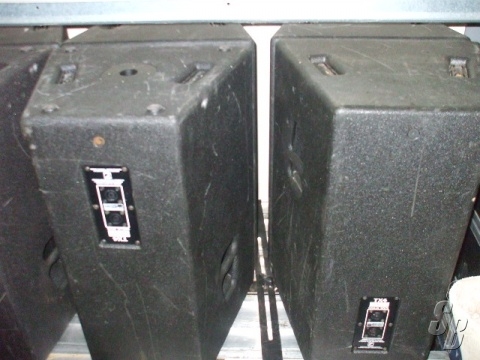

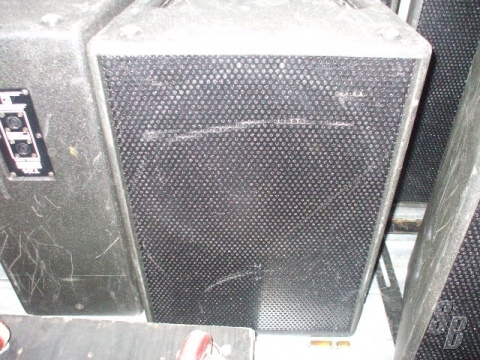

(12) YORKVILLE TX4 SPEAKERS IN GOOD CONDITION: (SN:TBD)

THE COMPACT AND EFFICIENT TX4 FEATURES THE SAME 2" HIGH FREQUENCY DRIVER AS THE TX8, BUT MOUNTED ON A SLIGHTLY SHORTER HORN. THE 4" VOICE COIL OF THE PROPRIETARY B&C 15" WOOFER PROVIDES INCREASED OUTPUT TO KEEP PACE WITH THE EFFICIENT 2" HIGH FREQUENCY DRIVER WHILE ENSURING SAFE OPERATION AT HIGH SOUND PRESSURE LEVELS.

THE CAREFULLY CHOSEN CROSSOVER POINT MATCHES THE DIRECTIVITY CHARACTERISTICS OF THE WOOFER TO THE HORN, RESULTING IN SMOOTH HORIZONTAL COVERAGE AND A SEAMLESS TRANSITION IN THE ALL IMPORTANT MIDBAND. TOP AND BOTTOM FLYTRACK AND FIXED EYEBOLT CONNECTIONS PROVIDE FLEXIBLE YET COST EFFECTIVE 'FLYING' CAPABILITY.

# SYSTEM TYPE: 2-WAY TRAPEZOID
# BIAMP OPERATION ONLY: YES
# SENSITIVITY - (DB @1WATT/1M) HF:110, LF:99
# MAX SPL: 127 DB
# FREQUENCY RESPONSE: +/- 3DB 50HZ - 19KHZ
# HF DRIVER: 1 X 2 INCH CERAMIC WITH TITANIUM DIAPHRAGM
# HF PROGRAM POWER: 120 WATTS
# HF IMPEDANCE: 8 OHMS
# HF HORN: CUSTOM WAVEGUIDE
# HF DISPERSION (HXV): 60 X 40
# LF DRIVER: 1 X 15 INCH, CAST FRAME
# LF PROGRAM POWER: 500 WATTS
# LF IMPEDANCE: 8 OHMS
# INPUTS: SPEAKON 4-PIN 2
# FLYING HARDWARE: ATM TOP AND BOTTOM
# INCLUDED HARDWARE: 3 INCH FLYTRACK WITH 3/8 INCH BOLT HOLES
# OPTIONAL FLYING HARDWARE: SWIVEL RING, EYEBOLT, SHACKLE
# BAR HANDLES: 2 (SIDE MOUNTED)
# POLE MOUNT ADAPTER: YES (1 3/8"-3.5CM)
# ENCLOSURE MATERIALS: .71 INCH, 13-PLY BALTIC BIRCH PLYWOOD
# GRILLE: 16 GAUGE PERFORATED METAL
# COVERING/FINISH: BLACK ULTRATHANE PAINT
# PROCESSOR (OPTIONAL): TX4P

PRICED EACH, SOLD IN PAIRS ONLY

TX4P PROCESSOR AVAILABLE FOR EXTRA

FOB: GA

Additional Details
ID#: 40416
Listing Type:
Standard
Model: TX4
Manufacturer: YORKVILLE
Condition: GOOD (7-8)
Shipping Info: 89.00 lbs., 19X19X29
Seller's Location: GA, USA
Updated: August 06, 2009
M.S.R.P.: $0.00
Asking Price: SOLD
