(2) MEYER 600-HP SUBWOOFERS
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on August 12, 2011 - Viewed 396 times

2 EA. MEYER SOUND 600-HP (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: THE 600-HP IS A SELF-POWERED, HIGH-OUTPUT SUBWOOFER THAT MAY BE USED IN BOTH FLOWN AND GROUND-STACKED CONFIGURATIONS. IT IS DESIGNED TO RIG DIRECTLY WITH MICA COMPACT, HIGH-POWER CURVILINEAR ARRAY LOUDSPEAKERS WHEN FITTED WITH THE OPTIONAL QUICKFLY MRF-600 RIGGING FRAME. THE VERSATILITY OF THE 600-HP ALSO ALLOWS IT TO BE USED WITH A VARIETY OF OTHER MEYER SOUND SELF-POWERED LOUDSPEAKERS - SUCH AS CQ-1, CQ-2, UPA-1P, UPA-2P AND UPJ-1P - IN FIXED AND TOURING APPLICATIONS.

THE SYSTEM FEATURES TWO SPECIALLY DESIGNED HIGH-POWER 15-INCH CONE DRIVERS, ENGINEERED TO PROVIDE OPTIMAL PERFORMANCE IN SUBWOOFER APPLICATIONS. THE HIGH-EXCURSION, BACK-VENTED DRIVERS HAVE 4-INCH VOICE COILS, AND EACH IS RATED TO HANDLE 1200 WATTS (AES*).

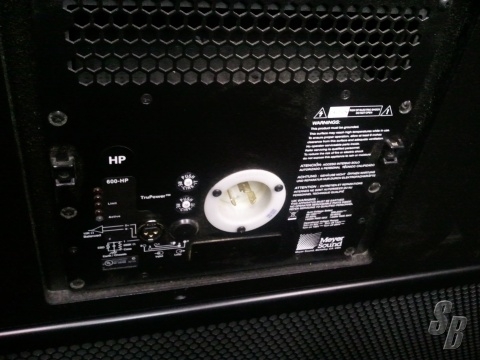

EACH CONE DRIVER IS DRIVEN BY A CHANNEL OF THE INTEGRAL TWO-CHANNEL CLASS AB/H AMPLIFIER WITH COMPLEMENTARY MOSFET OUTPUT STAGES. TOTAL POWER IS 2250 WATTS (4000 WATTS PEAK), AND THE OPERATING FREQUENCY RANGE IS FROM 33 HZ TO 150 HZ, WITH A PEAK SPL OF 138 DB. AN AMPLIFIER WITH INTEGRAL SIGNAL PROCESSING AND DRIVER PROTECTION IS INTEGRATED INTO A FIELD-REPLACEABLE MODULE MOUNTED IN THE REAR OF THE ENCLOSURE.

THE OPTIONAL MRF-600 RIGGING FRAME USES CAPTIVE, RIGID GUIDEALINKS. A SLOT AND CONVENIENT PINNED HANDLE ALLOW THE LINKS TO BE MOVED AND PINNED FOR ARRAYING OR STORAGE. THE 600-HP CAN MAKE USE OF THE OPTIONAL MG-MICA RIGGING GRID FOR FLOWN AND STACKED CONFIGURATIONS. THE EXTERIOR DIMENSIONS OF THE 600-HP ENCLOSURE ARE SUITABLE FOR BOTH U.S. AND EUROPEAN TRUCKS, AND CAN TRAVEL SECURELY IN STACKS USING THE MCF-MICA CASTER FRAME.

THE 600-HP IS AVAILABLE WITH OR WITHOUT QUICKFLY RIGGING HARDWARE OR HANDLES; ALL VERSIONS INCLUDE PLASTIC SKIDS ON THE BOTTOM OF THE UNIT TO ENSURE SECURE STACKING AND PREVENT DAMAGE TO THE ENCLOSURE. OPTIONS FOR THE 600-HP INCLUDE WEATHER PROTECTION, AND CUSTOM COLOR FINISHES FOR FIXED INSTALLATIONS AND OTHER APPLICATIONS REQUIRING SPECIFIC COSMETICS.

EXTRAS: WE HUNG THESE, SO THE CASING ON THE SUBWOOFERS IS READY FOR YOUR INSTALLATION.

MODIFICATIONS: NO

HISTORY: THEY WERE USED FOR 4 YEARS IN OUR SANCTUARY. WE HAVE 3 SERVICES A WEEKEND. THEY WERE INSTALLED AT THE CREATION OF THE BUILDING AND CAME DOWN AND STORED IMMEDIATELY. THEY ARE IN PERFECT WORKING CONDITION. WE REDID SOME CONFIGURATION IN THE ROOM. WE HAD 4 600-HP'S AND NOW ONLY NEED TWO, WHICH WE USE TO THIS DAY WITH NO ISSUES.

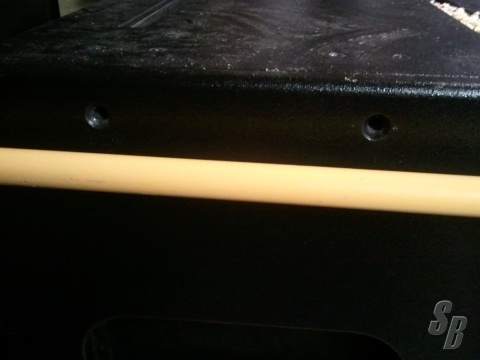

COMMENTS: A COUPLE SCRATCHES, BUT THAT IS IT.

THIS UNIT WAS NEVER TOURED
