8X MARTIN AUDIO WSX SUBWOOFER

Listing last update on January 16, 2012 - Viewed 335 times

MARTIN AUDIO WSX (YOM: 2008) (S#: TBD) LIKE NEW (9-10)

FEATURES: 8 X WSX SUBS
HYPERBOLIC FOLDED BASS HORN
TOURING & THEATRE

THE WSX IS A FOLDED HORN SUBWOOFER WHICH HAS BEEN SPECIFICALLY DESIGNED TO REPRODUCE VERY DEEP BASS FREQUENCIES WITH MAXIMUM EFFICIENCY, SPEED AND IMPACT. IT IS INTENDED TO BE USED WITH MARTIN WAVEFRONT SERIES LOUDSPEAKERS SUCH AS THE W8, W8C AND ALSO THE W8 LINE ARRAY ENCLOSURES IN THE MOST DEMANDING TOURING SITUATIONS WHERE EXTREME LEVELS OF BASS ARE REQUIRED. IT IS ALSO IDEAL FOR REPRODUCING THE CONCENTRATED BASS ENERGY OF CONTEMPORARY DANCE MUSIC IN CLUB ENVIRONMENTS.

FEATURES

* 7FT (2.1 METRE) FOLDED-HORN SUBWOOFER
* MAXIMUM EFFICIENCY DEEP BASS REPRODUCTION
* MIRROR IMAGE STACKING CAPABILITY

APPLICATIONS

* BASS GROUND STACK FOR W8LC AND W8L
* OUTDOOR BASS LINE SOURCE
* CONTEMPORARY DANCE MUSIC SUBWOOFOOFER

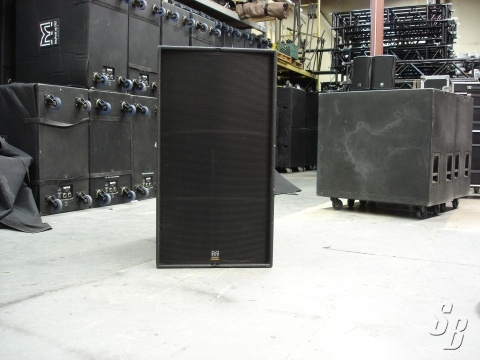

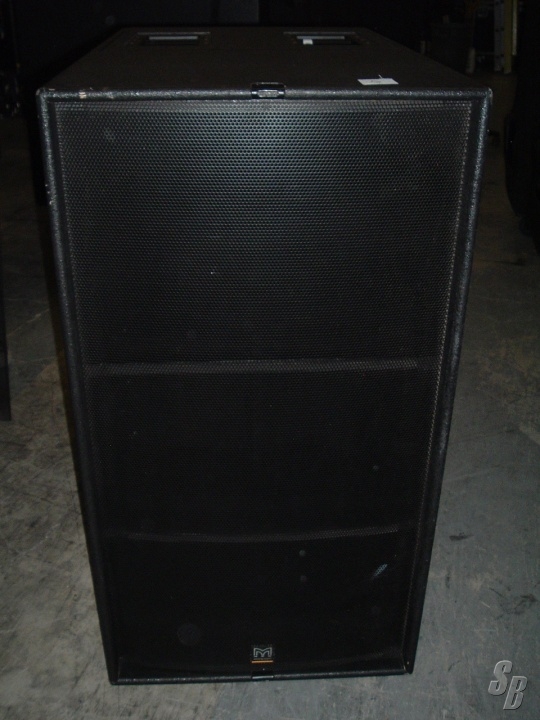

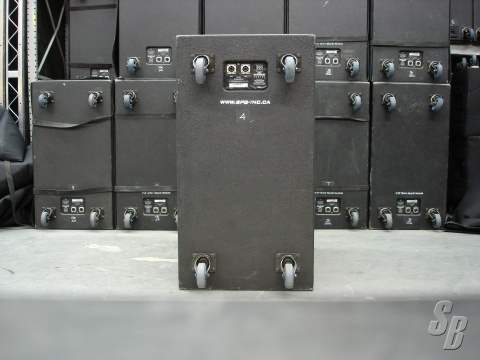

CLICK PIC FOR LARGER IMAGE
TECHNICAL SPECIFICATIONS
TYPE HYPERBOLIC FOLDED BASS HORN
FREQUENCY RESPONSE (1) 35HZ-150HZ ± 3DB
-10DB @ 28HZ
DRIVERS 18" (460MM) LONG EXCURSION
RATED POWER (2) 600W AES, 2400 PEAK
RECOMMENDED AMPLIFIER 550-1000W INTO 4 OHMS
SENSITIVITY (3) 105DB
MAXIMUM SPL (4) 132DB CONTINUOUS, 138DB PEAK
NOMINAL IMPEDANCE 8 OHMS
CROSSOVER 150HZ OR BELOW
FINISH TEXTURED GREY PAINT
PROTECTIVE GRILLE GREY PERFORATED STEEL
CONNECTORS 2 X NEUTRIK NL8
DIMENSIONS (INC. WHEELS) (W) 572MM X (H) 1066MM X (D) 936MM (1067MM)
(W) 22.5INS X (H) 42INS X (D) 36.9INS (42INS)
WEIGHT 95KG (209LBS)

EXTRAS: PADDED COVERS

MODIFICATIONS: N/A

HISTORY: CONCERTS, FESTIVALS, TOURS

COMMENTS: N/A

THIS UNIT WAS TOURED
