EAW KF 940 SUBWOOFER
[PRICED PER UNIT - 8 AVAILABLE AT TIME OF LISTING]
Listing last update on September 25, 2009 - Viewed 600 times

EAW KF 940 (YOM: 2004) (S#: TBD) SUPERB (8-9)

IN GREAT CONDITION

HISTORY: NEVER TOURED, IN CLUB INSTALL FOR TWO YEARS, COMPLETELY RECONDITIONED

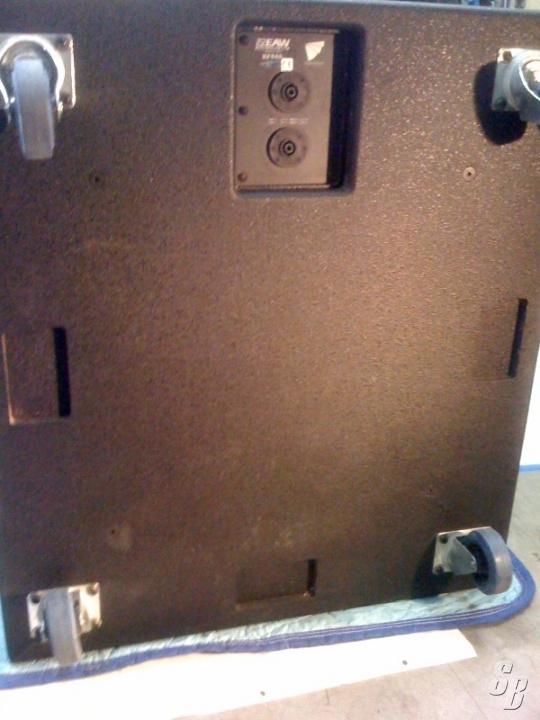

EXTRAS: WHEEL CASTER PLATES

FEATURES: BENT BASS HORN SUBWOOFER (2) 12 IN HEAVY DUTY WOOFERS ±3 DB 24 - 300 HZ PEAK OUTPUT: 145 DB SPL FOR PORTABLE USE ONLY DESCRIPTION THE KF940 PORTABLE HORN-LOADED SUBWOOFER SYSTEM, OTHERWISE KNOWN AS THE "SUPER-SUB," HAS CREATED A NEW LEVEL OF SUB BASS PERFORMANCE BY LOADING TWO SPECIALLY DESIGNED 12 IN WOOFERS WITH A HORN WITH AN EXPONENTIALLY EXPANDING THROAT THAT IS OVER 13 FT LONG. GREAT CARE HAS BEEN TAKEN TO CREATE WOOFER CONES THAT COULD WITHSTAND THE FORCE OF BEING LOADED WITH SUCH A LARGE HORN. AS AN IMPEDANCE MATCHING DEVICE, THE HORN BRINGS THE 1 WATT @ 1 METER SENSITIVITY OF THE SYSTEM AT 100 HZ TO 113 DB SPL.

THE KF940'S HORN USES A CONSTRUCTION TECHNIQUE THAT ALLOWS US TO CREATE HORNS WITH THE NECESSARY COMPLEX EXPANSION RATES. THE COMPLEX FLARES ARE CONSTRUCTED FROM A 3 MM VENEER OF BIRCH PLYWOOD THAT IS FIT INTO SLOTS CUT BY OUR COMPUTER-NUMERIC-CONTROLLED ROUTER. THE BIRCH VENEER IS THEN BACKED WITH A PROPRIETARY ANTI-RESONANCE, HIGH-DAMPING POLYURETHANE FOAM, MAKING THE HORN ACOUSTICALLY OPAQUE.

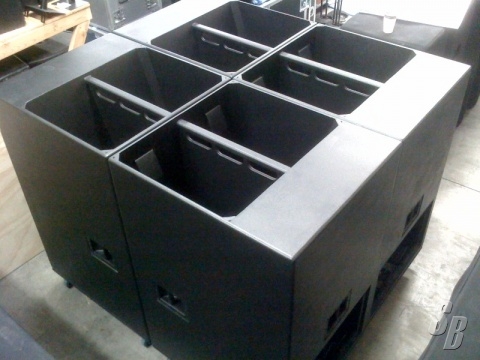

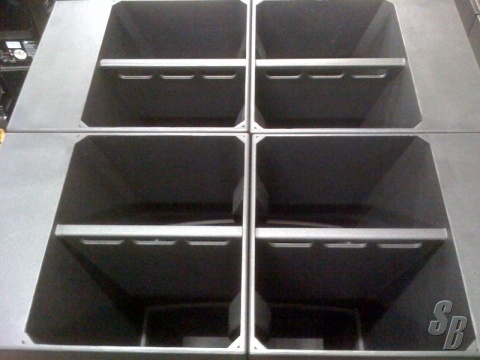

APPLICATIONS THE KF940 PROVIDES EXTREMELY HIGH LEVELS OF TIGHT, PUNCHY BASS TO THE LOWEST OCTAVE OF HUMAN HEARING. IT IS ENGINEERED FOR USE IN ARRAYS OF FOUR OR MORE MODULES. THE HORNS OF MULTIPLE ENCLOSURES COUPLE ACOUSTICALLY TO CREATE A SINGLE, LARGER HORN THAT INCREASES OUTPUT AND PROVIDES DIRECTIVITY TO VERY LOW FREQUENCIES.

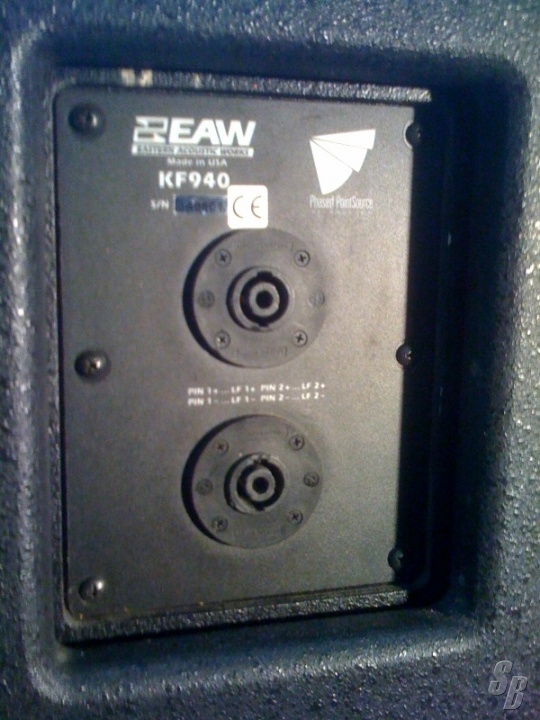

PHYSICAL SYSTEM CONFIGURATION SUBWOOFER PRODUCT GROUP S LF SUBSYSTEM & LOADING TWO 12 IN WOOFERS, BENT HORN ENCLOSURE MATERIAL EXTERIOR GRADE BALTIC BIRCH PLYWOOD FINISH WEAR RESISTANT TEXTURED BLACK PAINT CONNECTOR TWO NEUTRIK NL4 SPEAKON GRILLE POWDER COATED PERFORATED STEEL

PERFORMANCE FREQUENCY RESPONSE ±3 DB 24 HZ TO 300 HZ -10 DB 21 HZ RECOMMENDED HIGH-PASS FREQUENCY 25 HZ, 12 DB / OCTAVE BUTTERWORTH

AXIAL SENSITIVITY (DB SPL, 1 WATT @ 1 M) LF 109

NOMINAL INPUT IMPEDANCE (OHMS) SUBBASS DRIVER 1: 8 DRIVER 2: 8 PARALLEL: 4

POWER HANDLING (WATTS, CONTINUOUS) SUBBASS (W/ 25 HZ, 12 DB/OCT HPF) DRIVER 1: 800 DRIVER 2: 800 PARALLEL: 1600

CALCULATED SPL LIMIT (REFERENCED TO 1 M) SUBBASS PEAK 145.0 SUBBASS LONG TERM 139.0

NO MODIFICATIONS MADE. SUBWOOFER IN GREAT CONDITION.

PRICED EACH
