16' X 16' MOBILE SOLAR POWERED STAGE
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on March 26, 2016 - Viewed 209 times

GENERIC CUSTOM (YOM: 2008) (S#: TBD) GOOD (7-8)

FEATURES: 16' X 16' MOBILE SOLAR STAGE. UPGRADES HAVE BEEN MADE THROUGH THE LIFE OF THE STAGE INCLUDING ADDING MORE INVERTERS GIVING IT 60 AMPS OF HEAD ROOM. WILL NEED SOME REPAIR AND MAINTENANCE. THIS STAGE IS VERY POPULAR FOR BEERFESTS, STREET FAIRS AND NON-PROFIT EVENTS.



EXTRAS: RAMP, STAIRS AND SOLAR POWER!

MODIFICATIONS:

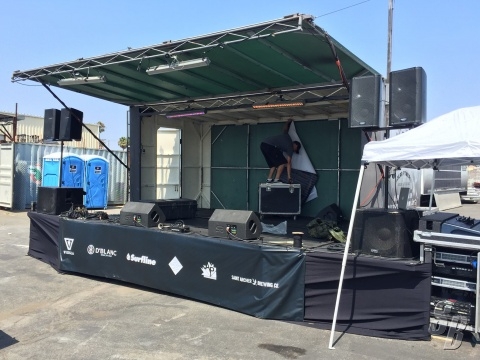

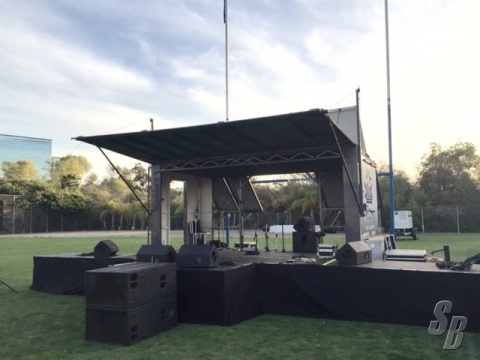

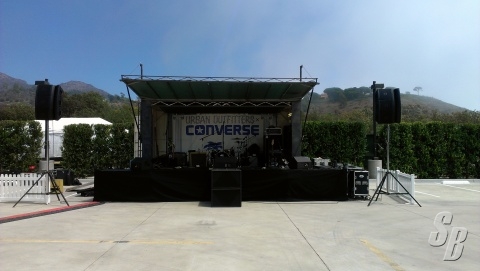

DEPLOYED STAGE:

16' WIDE, 16' DEEP, ROOF HEIGHT = 7' 5" UPSTAGE UP TO 10' DOWNSTAGE, FLOOR HEIGHT 2' TO 3' INCLUDES 2 EA 4' X 4' SOUND WINGS, RAMP AND 3' STEP STAIRS

SOLAR POWER:

(9) 170W SOLAR MODULES US,UL

(2) OUTBACK POWER SYSTEMS VFX3524 INVERTERS

PURE SINE WAVE INVERTERS, 60 HRTZ CONTINUOUS

(1) OUTBACK FLEX MAX 80 CHARGE CONTROLLER

(12) SURRETTE ROLLS L-16 530S BATTERIES: 48 VOLT HEAVY DUTY 4/0 INVERTER AND BATTERY CABLES

OUTBACK SURGE AND LIGHTNING PROTECTORS

650 AVAILABLE AMP/HOURS 28.9 KWH

(6) 120 V: 20 AMP CIRCUITS

70 SURGE: 50 AMPS CONTINUOUS

HISTORY: LOCAL EVENT AND FESTIVALS AROUND CALIFORNIA

COMMENTS: NO UNKNOWNS. NON HYDRAULIC. CONNECTS TO VEHICLE VIA PINTLE HOOK . TAKES APPROXIMATELY 35 MINUTES TO 1 HOUR TO SET UP WITH ONE CREW.

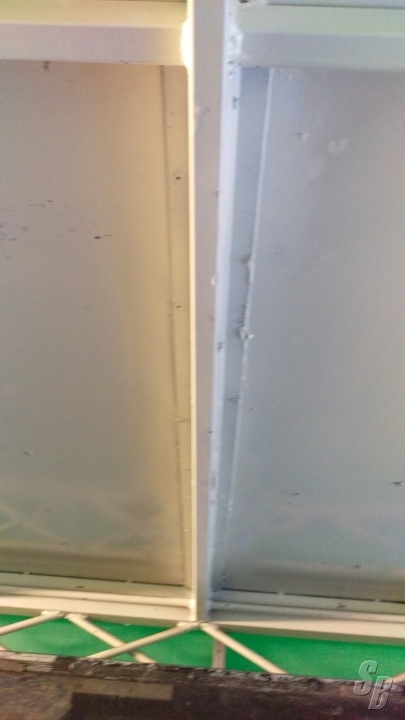

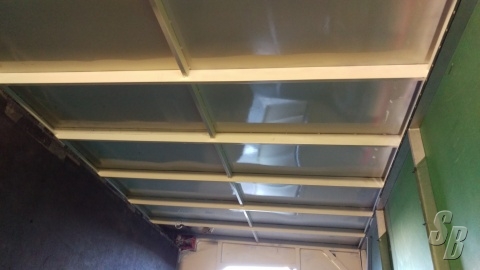

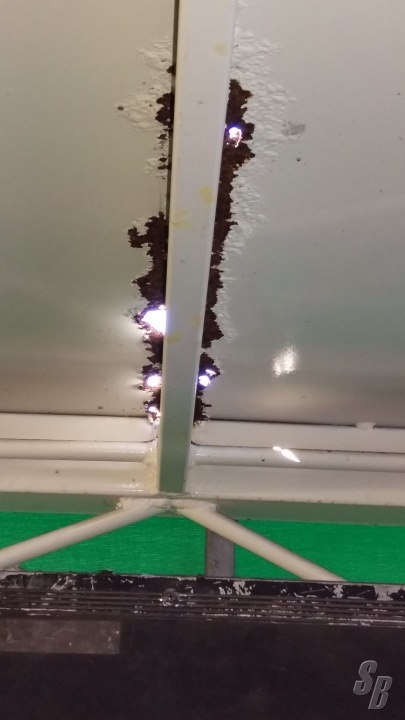

> 1) THE LISTING STATES THAT SOME REPAIRS MAY BE NEEDED,COULD YOU GIVE ME AN IDEA AS TO WHAT THOSE MAY BE? IT NEEDS SOME FABRICATION / WELDING. SOME OF THE STEEL ON THE ROOF NEEDS REPAIR BUT NOTHING MAJOR.
>

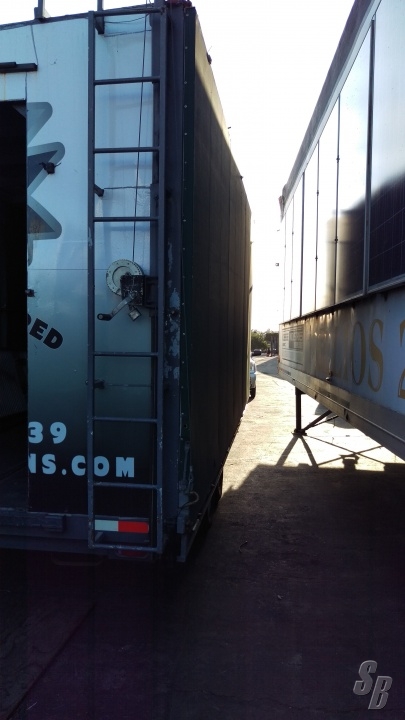

> 2) WHAT IS THE COLLAPSED SIZE OF THE UNIT IN TRAILER FORM? 16' X 8' . RYAN, REMIND ME ON THE LENGTH OF THE HITCH?
>
> 3) WHAT IS THE TOTAL TOWED WEIGHT OF THE UNIT? 8,500 LBS
>
> 4) IS THERE ANY ROOM FOR PRICE NEGOTIATION FOR BUYER THAT WILL PICK IT UP AND PAY WITH CASH? WILL SPEAK TO THE TEAM. IF SO IT WOULD BE AS IS.
>
> 5) IS THERE A POSSIBILITY OF PUTTING A CASH DOWN HOLD ON THE UNIT UNTIL WE CAN COME LOOK AT IT? THERE IS 2 POTENTIAL BUYERS. IS THIS A NON-REFUNDABLE HOLD? OTHERWISE DOESN'T REALLY MAKE SENSE
THIS UNIT WAS NEVER TOURED
