30 X 24 SOLAR POWERED CUSTOM BUILT MOBILE STAGE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on September 17, 2016 - Viewed 319 times

SOLAR POWERED CUSTOM BUILT MOBILE STAGE INCLUDES ROOF, BUILT-IN RAMP, SKIRTING, BACK DROP AND AN INTEGRATED SOLAR PACKAGE. SOLAR PACKAGE INCLUDES:

- (9) EVERGREEN 220W SOLAR MODULES US,UL AND

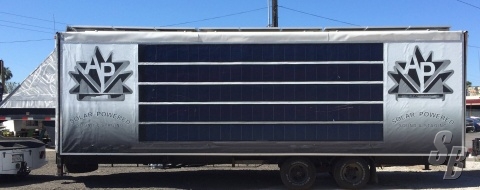

SOLAR INTEGRATED ON THE DOORS (2.5KW TOTAL)
-(4) OUTBACK POWER SYSTEMS VFX3524 INVERTERS (30-AMPS EACH)
PURE SINE WAVE INVERTERS, 60 HERTZ CONTINUOUS
- (1) OUTBACK FLEX MAX 80 CHARGE CONTROLLER
- (32) TROJAN T-105 RE 6 VOLT: 48 VOLT
- HEAVY-DUTY 4/0 INVERTER AND BATTERY CABLES
- OUTBACK SURGE AND LIGHTNING PROTECTORS `
- 800 AVAILABLE AMP/HOURS
-AC IN 240V SINGLE PHASE 50-AMP TWIST, AC OUT 240V SINGLE PHASE CAMLOCK
- 70 SURGE: 60 AMPS CONTINUOUS

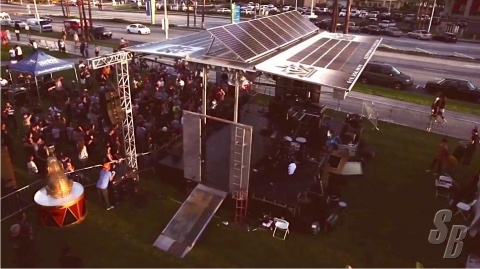

ROOF WAS DESIGNED BY XTREME STRUCTURES AND FABRICATION. THE STAGE RECENTLY HAD A NEW FLOOR PUT IN AND (4) NEW BRACES FOR FURTHER HYDRAULIC SUPPORT ELIMINATING ADDITIONAL TRUSS SUPPORT FOR FASTER SET UP. INCLUDED IS (2) 5' / 12" TRUSS TO FLY THE PA. WE NORMALLY FLY (4) JBL VERTEC 4888. THE STAGE RUNS A FULL PA, BACKLINE AND LED STAGE WASH PACKAGE.

BEYOND THE OBVIOUS ENVIRONMENTAL ATTRIBUTE OF THE STAGE, THE SOLAR ALSO BRINGS ADDED MEDIA VALUE TO THE CLIENT MAKING IS EASIER TO SELL TO POTENTIAL CLIENTS.
