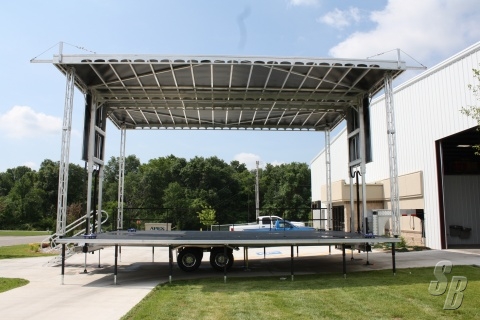

APEX 3224 MOBILE STAGE
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on February 25, 2011 - Viewed 1358 times

APEX 3224 (YOM: 2009) (S#: TBD) LIKE NEW (9-10)

FEATURES: APEX 3224 SPECIFICATIONS

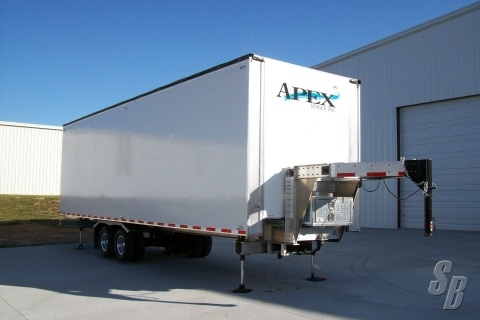

TRAILER: OTHER:
LENGTH 34' INSTALL TIME 30 MIN- 1 HOUR
WIDTH 102" WIND RATING 90 MPH WITHOUT WINDWALLS
HEIGHT 12'2" (BALLAST NEEDED)
CARGO SPACE 6'11" X 31'4" 35 MPH WITH WINDWALLS
CARGO CAPACITY 4050# (SOLID WINDWALLS)
TRAILER WEIGHT 14150# 25 MPH DURING SETUP
TONGUE WEIGHT 1800# PERSONNEL REQUIRED 2
REAR AXLE RATING 9100# SITE PREP NONE
FRONT AXLE RATING 9100# HAULING MODE PICK-UP TRUCK
GVWR 20000# POWER SOURCE 5 HP HONDA MOTOR
SECONDARY POWER 1.5 HP ELECTRIC 110 MOTOR
STAGE DECK:

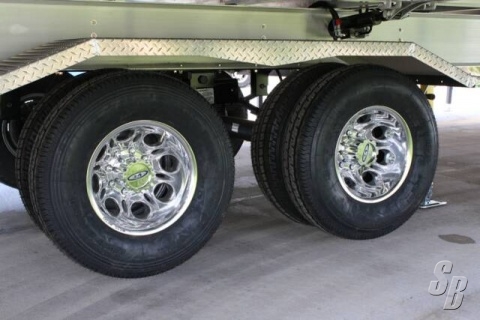

FLOOR SIZE 32' X 23'8" TIRES:
FLOOR HEIGHT 46" TO 66" TIRE SIZE 235/85/R16
GROUND TO ROOF 22'7" RIMS 16X6
FLOOR RATING 85" SQ/FT COLD TIRE INFL. 109 PSI
PLYWOOD RATING 150# SQ/FT
STRUCTURE MARINE PLYWOOD/ALUM
FLOOR SUPPORT 16-7000# JACKS

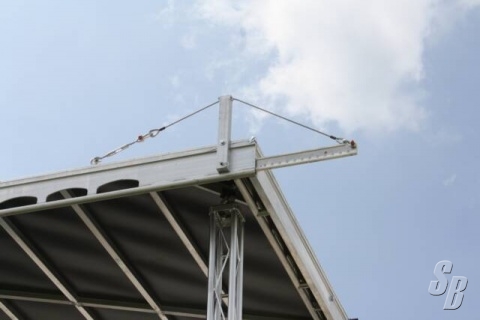

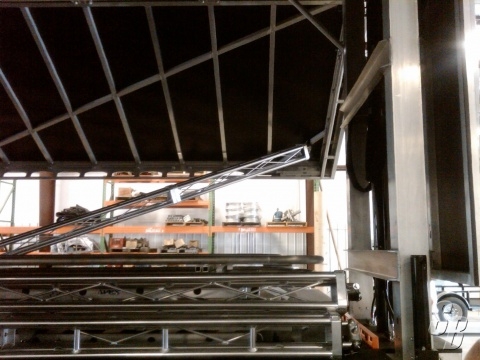

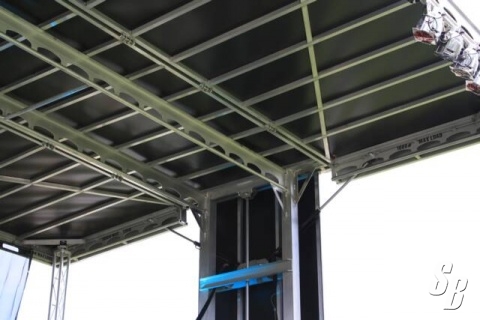

STAGE ROOF:
COVERED ROOF 26'3" X 34'
DECK TO ROOF TOP 16'7"
DECK TO BOTTOM OF CTR I-BEAM 15'4"
DECK TO BOTTOM OF DOWNSTAGE I-BEAM 15'7"
DECK TO BOTTOM OF UPSTAGE I-BEAM 15'1"
SURFACE FIBERGLASS/ALUM
ROOF LIFTING CAPACITY 4500#

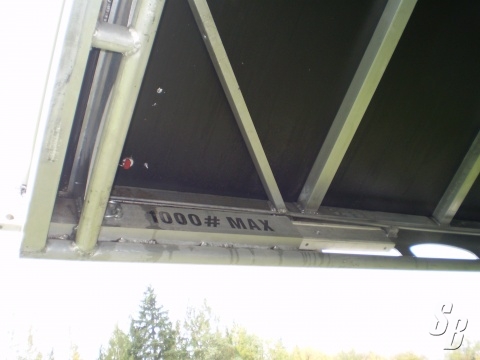

FLY BAYS 1000# EA.
DOWNSTAGE I-BEAM 1000# EVENLY DISTR.
UPSTAGE I-BEAM 1000# EVENLY DISTR.
CENTER I-BEAM 1000# EVENLY DISTR.
TOTAL ROOF CAPACITY 8000#
SLIDE OUT BAR LENGTH 2'3"

EXTRAS: 1 - BLOW THROUGH WINDWALL

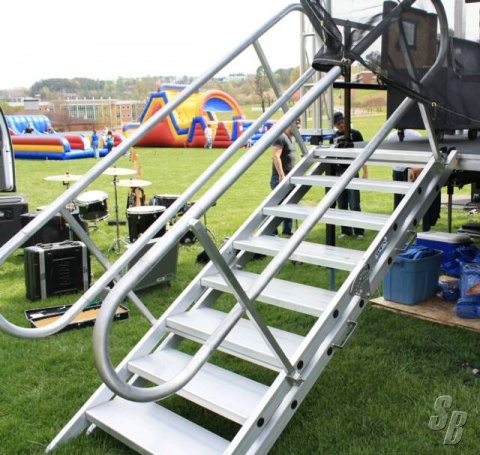

1 - SET OF STAIRS

MODIFICATIONS: NONE

HISTORY: LOCAL COMMUNITY SHOWS

COMMENTS: N/A

THIS UNIT WAS NEVER TOURED
