STAGELINE SL100 MOBILE STAGE SYSTEM
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on March 23, 2016 - Viewed 527 times

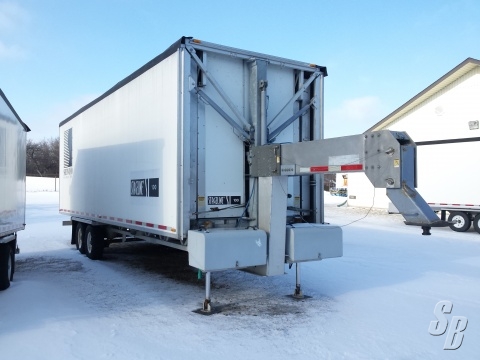

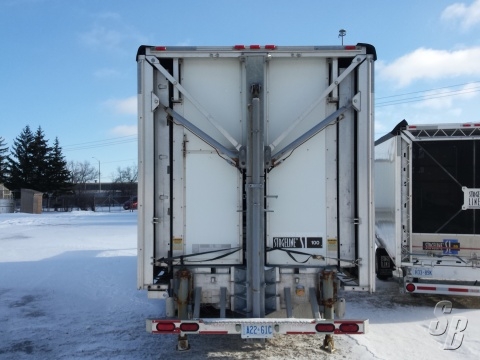

STAGELINE SL100 MOBILE STAGE SYSTEM (YOM:2003) (SN:TBD)

COMMENTS: WELL MAINTAINED.


STANDARD EQUIPMENT:

ROOF STRUCTURE & RIGGING
(4) BUILT-IN TRUSSES / ALUMINUM 5 CM (2'') DIAMETER TUBE TRUSSING
(4) BUILT-IN RIGGING POINTS -RIGGING BAR / 4.27M (14') - SPANS 2 RIGGING POINTS FROM LEFT TO RIGHT
(2)ALUMINUM SIDE OVERHANG RIGGING BEAM (0.9 M (3') EXTENSION BEAM)
(4) ALUMINUM CORNER POSTS - FIBERGLASS ROOF MOLDED TO ALUMINUM STRUCTURE -
GALVANIZED STEEL MAST - ONE PER SIDE

HYDRAULICS:

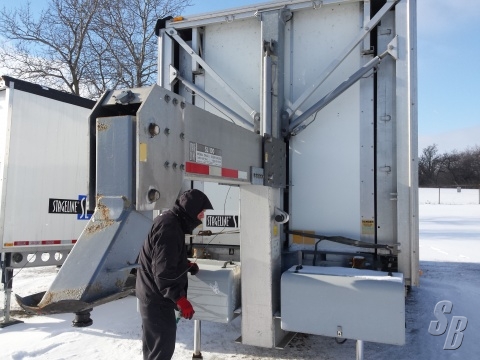

DOUBLE MAST LIFTING MECHANISM -
HIGH POWER INTEGRATED HYDRAULIC SYSTEM

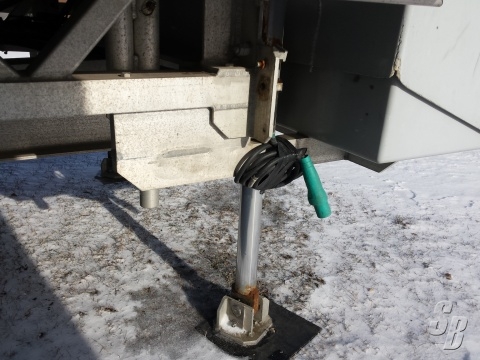

(4) HYDRAULIC STABILIZERS / STAGE LEVELS FROM 1.06 M (3' 6") TO 1.29 M (4' 3")
CAPACITY: 10,886 KG (24,000 LBS) EACH VERTICAL SUPPORT / 907 KG (2,000 LBS) LATERAL SUPPORT

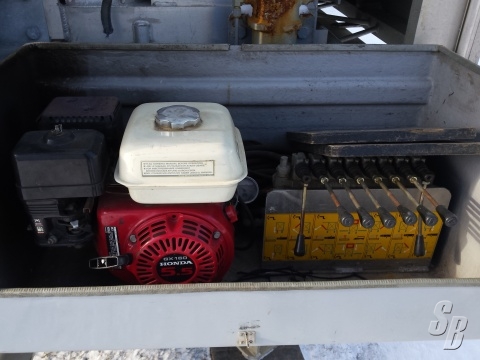

5.5 HP GAS ENGINE

STAGE:
DECK: GRAY PLYWOOD / QUICK LEVELING LEGS
MULTIFUNCTIONAL EXTRUDED ALUMINUM DECK EDGES
GUARDRAILS (STAGE MODEL) / ALUMINUM
SUPPORT BRACKETS BUILT-IN FOR STAGELINE PLATFORMS
STAIRWAY / ALUMINUM - 0.9 M (3') WIDE
WORK LIGHT

TRAILER:
DRAWBAR WITH PINTLE EYE

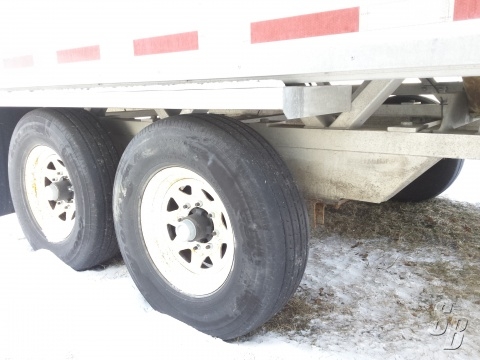

(2) LEAF SPRING AXLES
(4) TIRES - 0.40 M (16")
ELECTRIC BRAKES ON ALL WHEELS
EMERGENCY BREAKAWAY SYSTEM
STORAGE COMPARTMENT (19" X 18" X 16")
SPARE WHEEL / INTEGRATED STORAGE
(2)STORAGE BUMPERS
(10) STORAGE TIE-DOWNS

STAGE DRESSING PACKAGE
UPSTAGE FIRE RETARDANT GRAY VINYL WINDWALL
SKIRTING FRONT AND SIDE OF STAGE

SOUNDWING DECK PACKAGE
EXTENSION PLATFORMS AND ACCESSORIES
GUARDRAILS(PLATFORM MODEL)/ ALUMINUM

BANNERS SUPPORT PACKAGE
ROOFTOP BANNER KIT
BANNER FRAME KEDER BAR
LATERAL BANNER SUPPORTS WITH 2 ADDITIONAL ROOFTOP POSTS FOR EXTENDING BANNER
(2) LATERAL BANNER TIGHTENIG BARS/ STAGE LEVEL

TRAILER HITCH
GOOSENECK AND KINGPIN FOR 5TH WHEEL HOOKUP

COMMENTS:
WHAT ACCESSORIES DOES THE STAGE COME WITH?
STAIRS SETS? 1
FRONT SKIRT? OEM EQUIPMENT? YES (OEM)
OEM BACKDROP? YES (NEW REPLACEMENT IN 2014)
SKRIM? NO
4X8' DECKS FOR SOUND WINGS? HOW MANY? NO
BANNER PACKAGE? YES (OEM PACKAGE COMPLETE)


CLICK HERE FOR MFG SPECS
