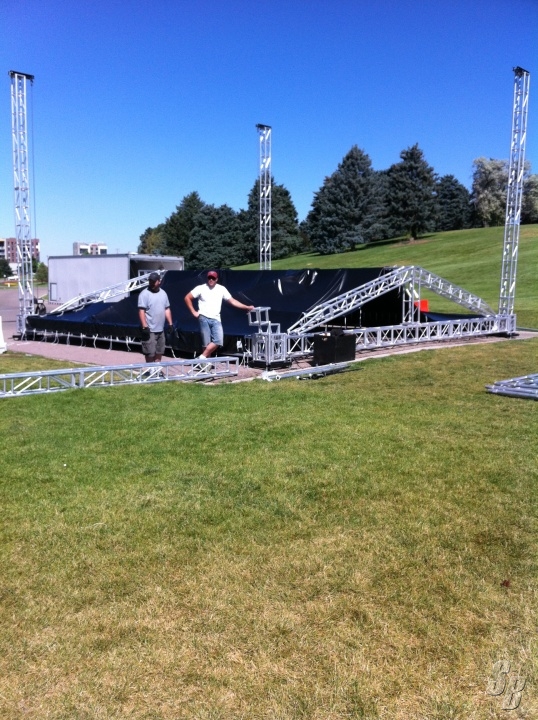

40 X 40 TRUSS ROOF W/ SOUND WINGS
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on September 07, 2013 - Viewed 184 times

DRAGON TRUSS STAGE (YOM: 2011) (S#: "TBD") SUPERB (8-9) 40 BY 40 ROOF SYSTEM CONSISTS OF:

12 EA. 12" BOX TRUSS BY 3 METERS
22 EA 16" BOX TRUSS BY 3 METERS
4 EA. 12" BOX TRUSS BY 2 METERS
4 EA. 12" BOX TRUSS BY 2.5 METERS
4 EA. 12" BOX TRUSS BY 3 METERS WITH CLAMPS FOR PITCH OF THE ROOF
4 EA 12" STEEL BASES
4 EA 12" HINGE TRUSS (1 METER)
4 EA. 12" SLEEVES
4 12" TOP PLATES
2 EA 16" TOP PLATES
2 EA 16" HINGE
2 EA. 16" SLEEVES
4 EA 12' CUSTOM TRUSS TO CONTROL ANGLE AT BASE
8 EA. 12" IBEAM TRUSS WITH CLAMPS (3 METERS)
8 EA. 12" IBEAM TRUSS (2 METERS)
8 EA. 12" IBEAM ROOF ANGLES
2 EA. 12" BY 1 METER
1 EA. 40 X40 BLACK VINYL SKIN COVERING
1 EA. 30 X30 BLACK VINYL SKIN COVERING
12 EA. OUTRIGGERS
6 EA. 2 TONS MANUAL CHAIN HOISTS 30' OF LIFT
2 EA. STAIRS
4 EA HANDRAILS 8 '
2 EA. HANDRAILS 4 '

ALL THE SCREW JACKS, CLAMPS AND BOLTS, GUY WIRES ETC. ARE INCLUDED

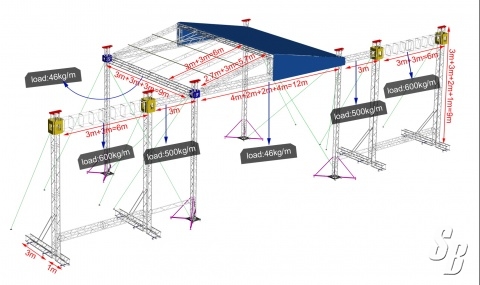

THE ROOF COMES WITH 6 EA. MANUAL CHAIN HOISTS 30' OF LIFT . MOST OF THE TRUSS IS IMPORTED FROM CHINA, . THE MAIN ROOF TOWERS ARE 12" BOX TRUSS, THE SOUND TOWERS ARE 16" BOX TRUSS. THE ROOF IS 16" BOX TRUSS WITH I BEAM TRUSS. THE VIDEO WALL BEAMS ARE 20" X 30" TRUSS TO SUPPORT ADDITIONAL LOADS. THE SOUND WINGS ARE 10'.

EXTRAS: WE HAVE TWO DIFFERENT ROOF COVERS AND SEVERAL MESH BACK DROPS THAT CAN BE USED AS ROOF. EXTRA 30 X 30 VINYL ROOF COVER. LINE ARRAY TOWER BASES

ADDITIONAL STAGING AVAILABLE (NOT INCLUDED IN PRICE LISTED):

50 EA. 4 X 8 ALUMINUM STAGE DECKS FRAMES ADJUSTABLE LEGS 3'-5' W/WOOD SURFACE $390.00 EA
2 EA. ITTCS OPTIONAL CUSTOM VIDEO WALL WINGS ADDS 20 FEET TO EACH SIDE OF STAGE.

MODIFICATIONS: NO MODIFICATIONS

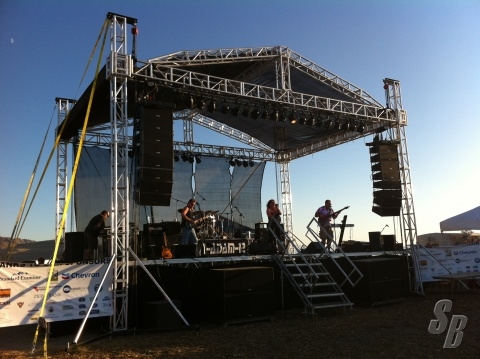

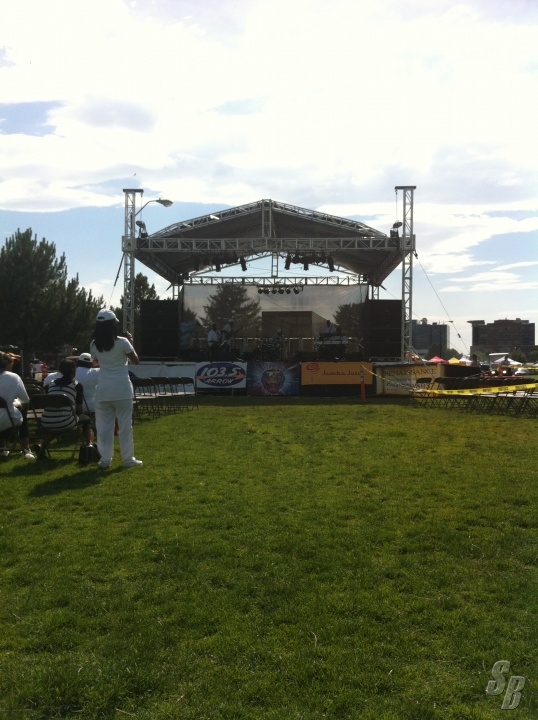

HISTORY: OUTDOOR STAGES AND CONCERTS

COMMENTS: DRAGON STAGE IS MADE IN CHINA. WE HAVE CONTACT WITH THE MFG AND THEY CAN PROVIDE ADDITIONAL STAGING TO SUPPORT EXPANSION AND TECH. NO PROBLEMS THIS ROOF SYSTEM WAS ONLY USED A FEW TIMES, LIKE NEW CONDITION.

THIS UNIT WAS NEVER TOURED
