For Sale: TOMCAT 42 X 42 STAGE ROOF
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on June 09, 2023 - Viewed 1138 times

TOMCAT 42X42 STAGE ROOF (YOM: 2005) (S#: TBD) GOOD (7-8)

42 X 42 STAGE ROOF GEAR LIST

FEATURES:

• 15 - SECTIONS 93 INCHES LONG OF TOMCAT DOUBLE HUNG PRT (PRE-RIGGED TRUSS)
• 5 - SECTIONS 93 INCHES LONG OF ELECTRONICS DIVERSIFIED DOUBLE-HUNG PRT
• 4 - 30 INCH X 30 INCH 3 ATTACH SIDE SLIDING CORNER BLOCKS

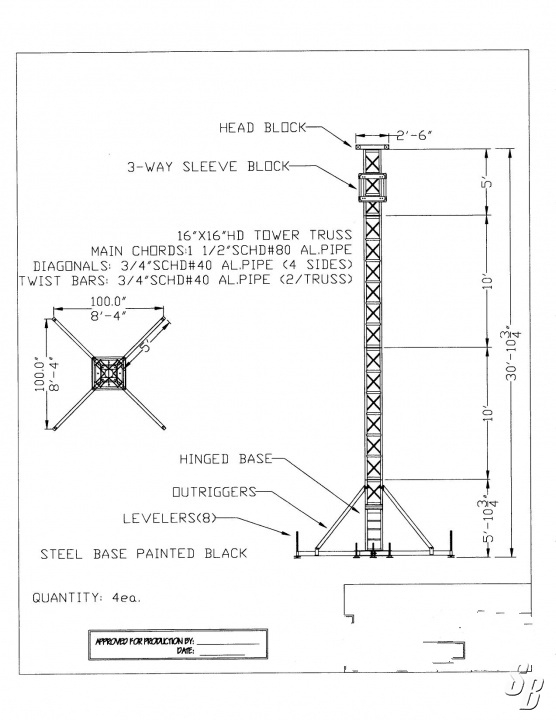

• 4 - 16 X 16 X 5 FOOT TOWER TRUSS HINGED
• 4 - 16 X 16 X 5 FOOT TOWER TRUSS
• 8 - 16 X 16 X 10 FOOT TOWER TRUSS
• 4 - ELECTRONICS DIVERSIFIED TOWER CHAIN STYLE HEAD BLOCKS
• 4 - 24 X 24 STEEL TOWER BASE CENTER W/ LEVELERS
• 16 - 48 INCH LONG STEEL TOWER BASE LEGS WITH W/LEVELERS (1 IS DENTED - UNSURE IF IT CAN BE FIXED OR SHOULD BE REPLACED)
• 16 - 48 INCH LONG STEEL TOWER BASE DIAGONAL SUPPORT

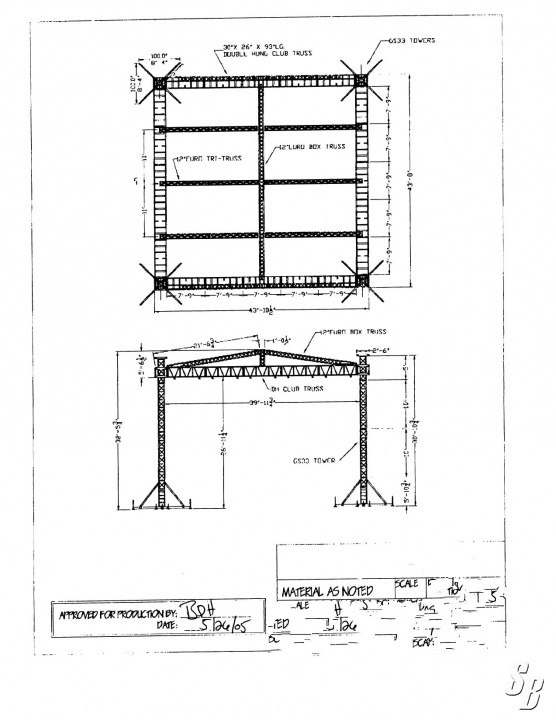

THIS IS THE COMPLETE 42 X 42 FOOT GRID AND LIFT TOWER SYSTEM

ROOF APEX KIT:

• 8 - 12 X 12 X 10 FOOT TRUSS SECTIONS
• 2 - APEX CENTER POSTS (BOLT TO CENTER UPSTAGE AND DOWNSTAGE PRT )
• 4 - 12 X 12 ANGLED BOLT-ON TRUSS FOR BOTTOM OF APEX BOLTED TO OUTSIDE PRT SECTIONS
• 6 - 14 INCH TRIANGULAR TRUSS ANGLED AT THE TO SIDE PRT PIECES
• 6 - 14 INCH TRIANGULAR TRUSS SECTION APPROX 8 FEET (EXPANDABLE)
• 6 - 14 INCH TRIANGULAR TRUSS SECTION 10 FEET LONG
• 3 - BOLT-ON PIECES TO APEX RUN FOR TRIANGULAR TRUSS
• 1 COMPLETE ROOF SKIN ( MAROON AND GRAY)
• ASSORTED BUNGEE CORDS
• ASSORTED 10 FOOT 2 INCH PIPE
• ASSORTED RATCHET STRAPS

ALL ABOVE TO ATTACH ROOF SKIN TO GRID.

EXTRAS:

• 8 - 30 FOOT LONG 2 INCH RATCHET STRAPS FOR TOWER SUPPORT
• 8 - 3 FOOT SPANSETS (E60)
• 8 - 5/8 INCH SHACKLES
• 1 COMPLETE GRADE 8 BOLT KIT WITH HAND TOOLS

RIGGING

MODIFICATIONS:

NONE

HISTORY:

STAGE & ROOF HAVE BEEN IDLE FOR THE LAST 3 YEARS.

USED ONLY FOR LOCAL SHOWS (1 TO 3 TIMES PER YEAR) DURING THE SUMMER MONTHS IN THE UPPER MIDWEST.

OWNER COMMENTS:

• UP AND DOWNSTAGE TRUSS DESIGNED FOR DOUBLE-HUNG LIGHTING BARS, 60K EACH, 120K TOTAL (ALSO AVAILABLE).
• THE CORNER BLOCK WHEELS ARE MADE OF HARD PLASTIC
  • YOU CAN SEE THE EQUIPMENT, IT'S STORED IN MY HEATED GARAGE AT MY HOME IN MINNESOTA.

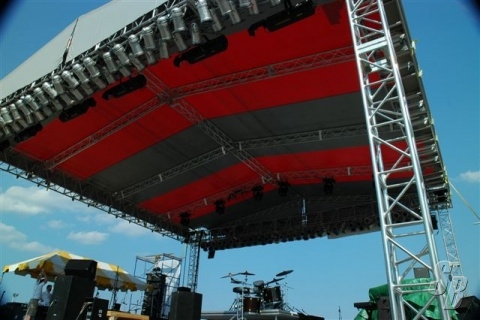

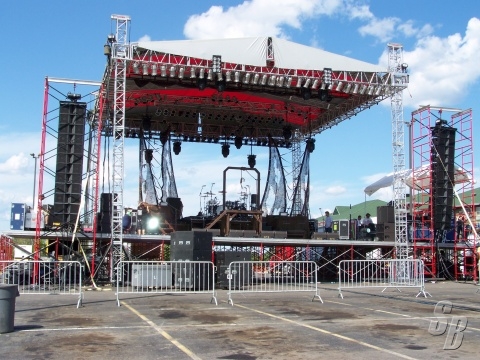

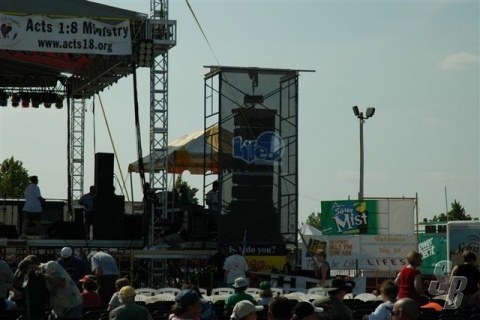

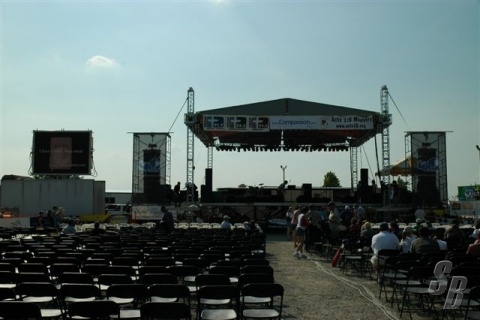

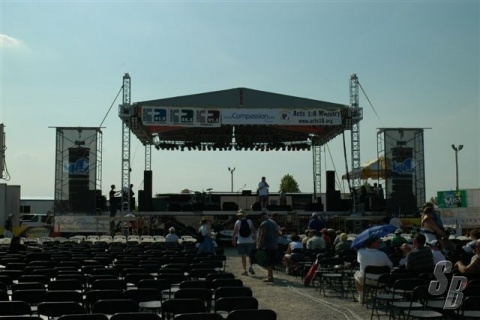

  • SEE ATTACHED PICTURES OF THE ROOF COMPONENTS.
• THERE ARE 3 ROOF SKINS THAT I WILL SELL WITH THE ROOF PACKAGE
  • THE LARGE 40 X 40 IN THE PICTURES
  • TWO SMALLER ONES WHICH I BELIEVE ARE EACH 32 X 32.
• THE ROOF SYSTEM WAS BUILT IN 2004, BUT THE 5 ELECTRONICS DIVERSIFIED PRT TRUSS PIECES ARE OLDER THAN THAT AS IS THE SKIN.
  • WE USED THE TOP ONLY ONCE OR TWICE A YEAR THROUGH 2007
  • IT HAS BEEN IN STORAGE SINCE WITH IT WENT OUT FOR A LOCAL SHOW A COUPLE OF TIMES.
• THE CORNER BLOCK WHEELS ARE MADE OF HARD PLASTIC AND YOU CAN SEE THE EQUIPMENT
  • IT'S STORED IN MY HEATED GARAGE AT MY HOME IN MINNESOTA.
• I HAVE DROPPED THE PRICE A COUPLE OF TIMES
  • I THINK IT'S A GREAT DEAL COMPARED TO THE COST OF A NEW ONE
  • IT LOOKS LIKE A NEW ONE
  • NO CORROSION OR FADING
  • THE FINISH IS BRIGHT AND EVERYTHING IS STRAIGHT AND TRUE

THIS UNIT WAS NEVER TOURED

PLEASE NOTE:

FOR ADDITIONAL $$ AND JUST IN CASE SOMEONE WHO IS LOOKING IS INTERESTED:

THERE IS 168K OF PAR 64 LIGHTS ON 6 LAMP BARS WITH ALL THE SOCAPEX CABLE AND DIMMING THAT CAN GO WITH THE ROOF.

• I SEPARATED THEM OUT AS IT SEEMED IT WOULD PROBABLY BE EASIER TO SELL THE ROOF SEPARATELY.
