For Sale: LA 16-35 LINE ARRAY TOWER
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on December 07, 2023 - Viewed 149 times

12/06/2023: LEAD TIME DEPENDS ON THE TIME OF ORDER BUT EXPECT 5 WEEKS OUT MINIMUM

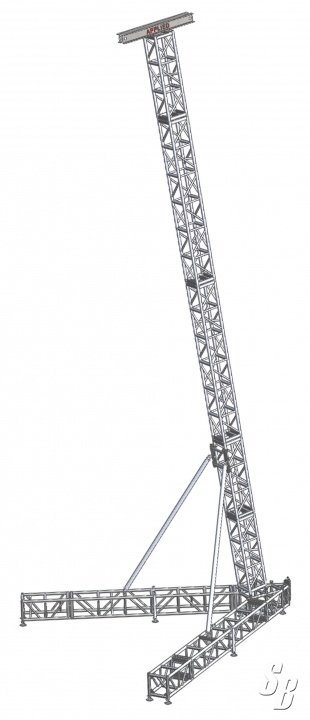

APPLIED ELECTRONICS LA 16-35 LINE ARRAY TOWER 16" BOLTED TRUSS

(ITEM NO. 1-35-216)

CONSIST OF:

 (1) V-BASE
 (1) HINGE SECTION
 (3) 10' 16IN TOWER TRUSS (TOWERS)
 (1) HEAD BLOCK
 (2) 10' 16IN BOX TRUSS (LEGS)
 (2) 8' 16IN BOX TRUSS (LEGS)
 (2) LEG PLATES
 (2) TOWER BRACES
 (2) LEG BRACE BRACKETS
 (2) TOWER BRACE BRACKETS
 (40) 5/8-11 BOLT SETS WITH (80) WASHERS AND (40) NUTS
 (12) 3/4 X 4" CLEVIS PINS WITH R-CLIPS

ALSO INCLUDED:

(2) LEVELING JACK TUBE ADAPTER
 (6) LONG LEVELING JACKS
 (4) SHORT LEVELING JACKS
 (2) MOTOR BRACKETS
 (1) LIFTING LADDER
 (1) SET OF BUILD INSTRUCTIONS

SPECIFICATIONS:

• MAXIMUM HEIGHT: 30’ (LA16-30)
• MAXIMUM HEIGHT: 35’ (LA16-35)
• FOOTPRINT: 21’ 8 7/8” X 19’ 2 3/8”
• WEIGHT: 865 LBS (LA16-30)
• WEIGHT: 950 LBS (LA16-35)
• CERTIFIED LOAD: 2200 LBS
• BALLAST: 300 LBS EACH LEG OR 500 LBS AT THE BASE
• WIND RATING: 45 MPH – LOWER THE LOAD

NEW WITH FULL MANUFACTURER WARRANTY
