NEW 2013 E-1 MACHINE 24' X 22' MOBILE STAGE TRAILER CHASSIS & ELEVATING ROOF STRUCTURE
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on September 12, 2013 - Viewed 411 times

E-1 MACHINE 24-XTX (YOM: 2013) (S#: TBD) SEE DESCRIPTION

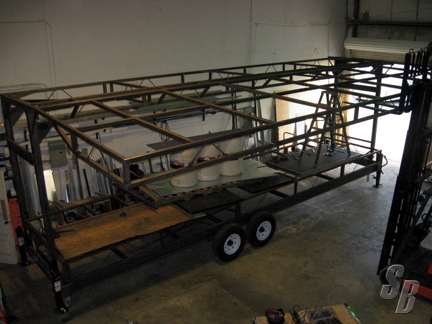

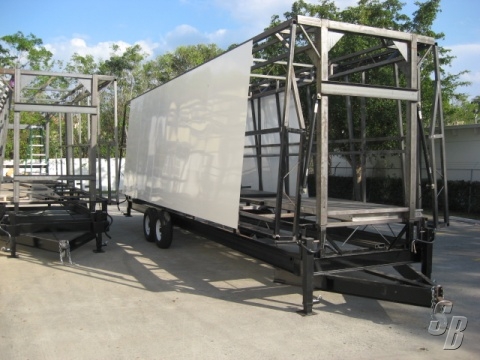

FEATURES: BRAND NEW 2013 E-1 MACHINE 24' X 22' CONCERT STAGE TRAILER ROLLING CHASSIS, INC. ELEVATING ROOF STRUCTURE AND STAGE DECK EXTENSIONS. COMPLETED TRAILER CHASSIS W/ D.O.T. CERTIFICATION, COMPLETED STEEL WORK FOR: UPPER STRUCTURE-ROOF WINGS AND STAGE DECKS: READY FOR YOU TO MAKE SHOW READY.

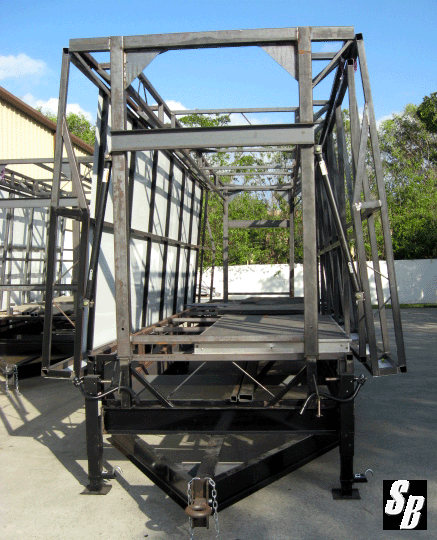

TRAILER CHASSIS IS ON 8" STRUCTURAL I-BEAM MAIN FRAME, (2) 7000LB. AXLES W/ SHOCK ABSORBING TORSION SUSPENSION, 8 LUG H.D. HUBS AND WHEELS, P235-R16 RADIAL TIRES. (4) 10'000 LB. (SEMI TRUCK) JACK LEGS ON (4) CORNERS OF TRAILER TO LEVEL AND STABALIZE STAGE FOUNDATION. PINTLE RING (SUGGESTED) OR 2-5/16" BALL HITCH CONNECTION. CURB WEIGHT: 6800LBS.(WILL GET TO APPROX. 9000+ LB. WHEN COMPLETED) GVWR: 9900 LBS.

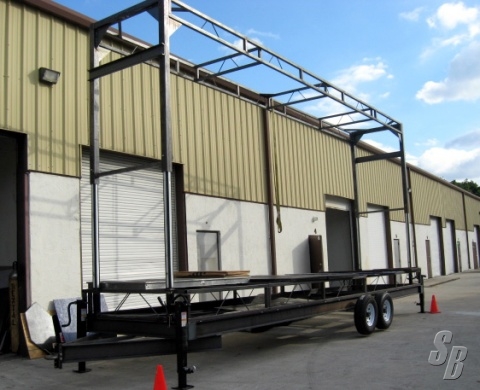

ROOF STRUCTURE: ELEVATES TO 18'-20' GROUND TO TRIM ELEVATION, STRUCTURAL 3500LB. WEIGHT BEARING ROOF. UNIT WILL HAVE (2) END ELEVATING TOWERS W/ 84" OF VERTICAL TRAVEL- TRAVELS OVER (NEVER LUBE) TEFLON LIKE BEARING MATERIAL, (1) CENTER 7' X 24' STATIONARY ROOF AND (2) 24' X 8' LIFT UP ROOF SECTIONS INSTALLED ON 24" HINGES AND WORKING (READY FOR LIFTING DEVICES AND EXTERIOR COVERING OF CHOICE), FOR A TOTAL ROOF SIZE OF: 24' X 23'.

STAGE DECK: (1) STATIONARY 7' X 24' , (2) 7'-6" SWING DOWN STAGE EXTENSIONS, W/ 10" X 8" POCKET HINGES INSTALLED AND WORKING (READY FOR LOWERING DEVICES AND STAGE SURFACE OF CHOICE). MAKES TOTAL STAGE SIZE OF: 24' X 22' GROUND TO DECK TRIM: 42" ELEVATION. (CAN BE JACKED UP TO 60" ELEVATION)

COMES WITH FREE 90 DAY TECH SUPPORT TO ASSIST YOUR COMPLETION. FINISHED UNIT CAN BE STRUCTURALLY CERTIFIED AT: 150 LBS. PER SQ. FT. LIVE LOAD, 45 MPH WIND LOAD, WITH ADDITIONAL ENGINEER'S FEE OVER AND ABOVE OFFERED PRICE.

WE ALSO CAN DELIVER FULL HYDRAULIC-SHOW READY UNITS IN 3-4 WEEKS FOR A GREAT DISCOUNT. THANKS FOR YOUR TIME.

EXTRAS: OWNER'S MANUAL, FINISHING PLANS, OPERATOR TRAINING AND CERTIFICATION.

MODIFICATIONS: N/A

HISTORY: BRAND NEW- UNUSED

COMMENTS: READY FOR YOU TO FINISH AND TOUR.

THIS UNIT WAS NEVER TOURED
