STAGELINE SL50 2015
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on February 04, 2017 - Viewed 621 times

STAGELINE SL50 2015

WHAT MAKES A STAGELINE SL50 WORTH ACQUIRING?
WEIGHT SAVING BENEFITS MAKE ALUMINUM THE BEST CHOICE FOR A STAGE OF THIS SIZE. EXTRUSIONS, RIVETING, AND EXPERT WELDING ARE ALL COMBINED TO BUILD A STATE OF THE ART STAGELINE MOBILE STAGE.
SEE MORE AT MFG SPECS WEB PAGE LINK

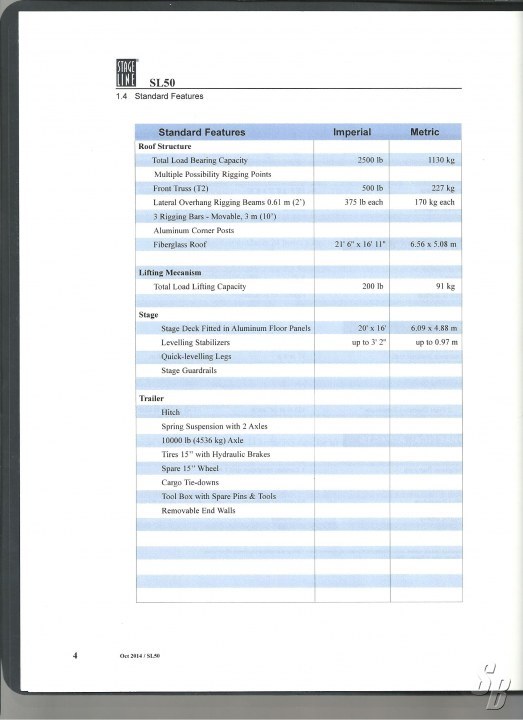

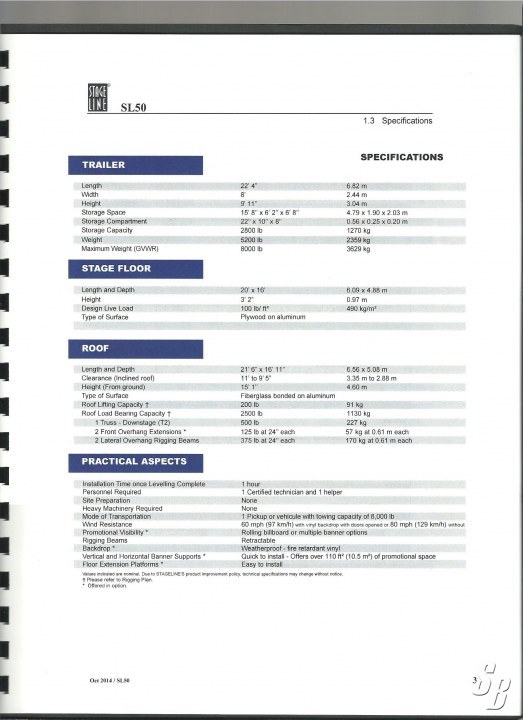

MFG INFORMATION: STAGELINE SL50 PORTABLE STAGE 20' X 16' (6M X 5M) - NEW WITH FACTORY WARRANTY

ROOF STRUCTURE AND RIGGING:
(1) BUILT-IN TRUSS / ALUMINUM 5 CM (2'') DIAMETER TUBE TRUSSING
(6) MOVABLE RIGGING POINTS
(3) RIGGING BARS / 3.05 M (10')
(2) ALUMINUM SIDE OVERHANG RIGGING BEAMS (0.61 M (2') EXTENSION BEAM)
(4) ALUMINUM CORNER POSTS -FIBERGLASS ROOF MOLDED TO ALUMINUM STRUCTURE
RIGGING LOAD CAPACITY TESTED AT TWICE THE WORKING LOAD
GALVANIZED STEEL MAST

* LIFTING MECHANISM
* STAGE ROOF DEPLOYMENT
* (8) GAZ SPRING CYLINDERS

STAGE:
DECK: GRAY PLYWOOD / QUICK LEVELLING LEGS
MULTIFUNCTIONAL EXTRUDED ALUMINUM DECK FRAME
(4) GUARDRAILS / ALUMINUM
SUPPORT BRACKETS BUILT-IN FOR STAGELINE PLATFORMS
STAIRWAY / ALUMINUM - 0.9 M (3') WIDE
(8) RUBBER PADS

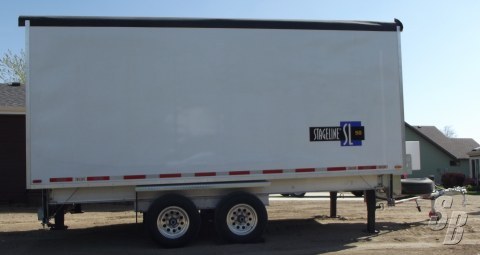

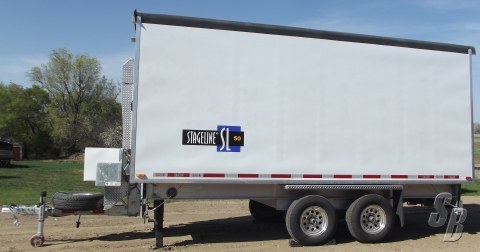

TRAILER:
RETRACTABLE DRAWBAR WITH BALL HITCH
(1) LEAF SPRING AXLE (DOUBLE AXLE)
(2) TIRES + 1 SPARE WHEEL (ALUMINIUM HUBS)
HYDRAULIC BRAKES ON ALL WHEELS
EMERGENCY BREAKAWAY SYSTEM
STORAGE COMPARTMENT
STORAGE BUMPERS
(6) STORAGE TIE-DOWNS
STORAGE WEIGHT CAPACITY
STORAGE SPACE CAPACITY

* STANDARDS
* APPLICABLE REGULATIONS
* VERTICAL LOAD
* WIND RESISTANCE

CERTIFICATION:
- CERTIFICATE STAMPED BY PROFESSIONAL ENGINEERS
- ALL TECHNICAL DOCUMENTS SUPPLIED
- 24 H/D SERVICE SUPPORT
