For Sale: TAF ROOF 2 SYSTEM: 10 X 8 M (32.5 X 26 FT)
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on February 13, 2023 - Viewed 297 times

TAF TRUSS ALUMINUM FACTORY

TAF OFFERS A WIDE RANGE OF ROOFING SYSTEMS DESIGNED TO FIT EVENTS OF BASICALLY ANY SIZE. THE GREAT VARIETY OF THE ROOF SYSTEMS DIMENSIONS AND DESIGNS GRANTS YOU A FREEDOM OF CHOICE.

FEATURING:

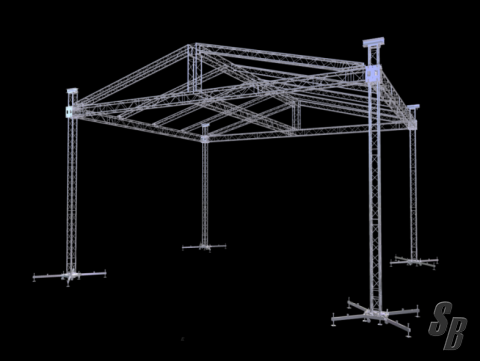

TAF ROOF 2  SYSTEM

ROOF 2 IS A BEST-SELLING ROOF SYSTEM FROM THE TAF PORTFOLIO. THE STRUCTURE IS AVAILABLE IN THREE DIFFERENT SIZES COVERING THE FOLLOWING STAGES:

• 8X6 M (26X19.5FT)
• 10X8 M (32.5X26FT)
• 12X10 M (39X32.5FT)

ITS FAST AND EASY ASSEMBLY MAKES ROOF 2 A GREAT CHOICE FOR ALMOST ANY KIND OF EVENT.

* SEE BELOW

SPECIFICATIONS:

MAX.DIMENSION: 14,5X12,5M (47,6X41,0FT)

MAX.STAGE SIZE: 12X10M (39,4X32,8FT)

MAX.CLEARANCE: 7,0M (23,9FT)

MAX.HEIGHT: 9,1M (29,8FT)

MAX.LOAD BEARING CAPACITY: 3500KG (7716LB)

TOTAL WEIGHT OF CONSTRUCTION: 2000KG (4409LB)

USED CONSTRUCTION SYSTEMS:

MAST SECTION: TT-34

SUPPORT TRUSS: FT-44

OUTSIDE RAFTER: FT-34

INSIDE RAFTER: FT-33

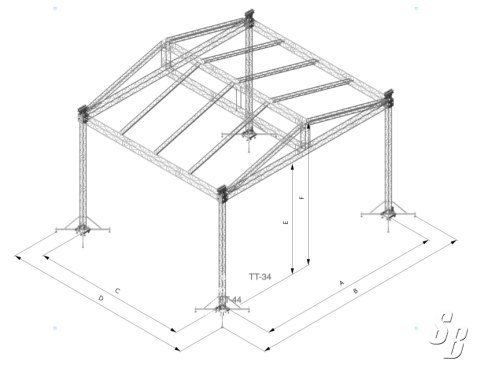

STAGE MEASUREMENTS:

STAGE SIZE: 10X8 M (32,81X26,25FT)

INSIDE WIDTH 10030MM  (32,91FT)

OVERALL WIDTH 12500MM (41,01FT)

INSIDE DEPTH 8030MM (26,35FT)

OVERALL DEPTH 10500MM (34,45FT)

CLEARANCE 7000MM (22,97FT)

HEIGHT 8830MM (28,97FT)
