SENCORE DA795 DIGIPRO DIGITAL AUDIO ANALYZER

Listing last update on January 30, 2012 - Viewed 1161 times

Click on thumbnail to enlarge

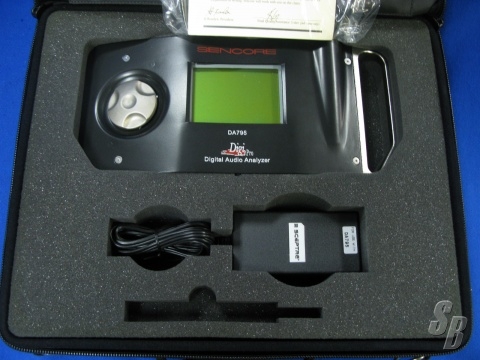

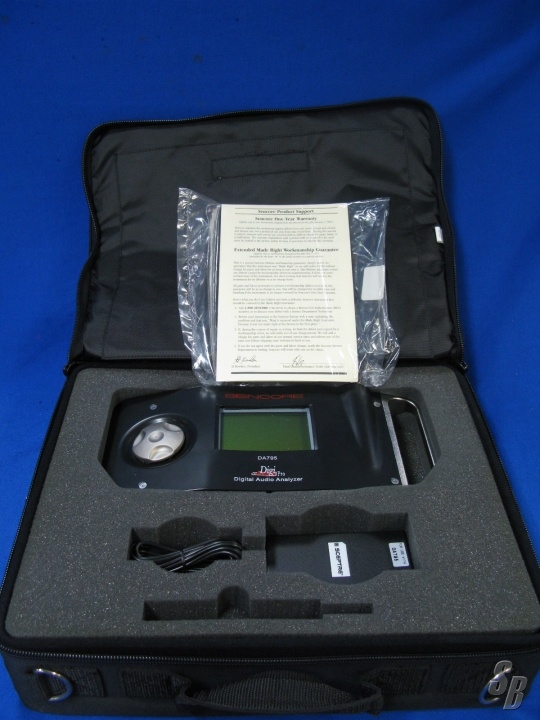

SENCORE DA795 DIGIPRO DIGITAL AUDIO ANALYZER



GENERIC DA795 (YOM: ?) (S#: TBD) LIKE NEW IN ORIGINAL PACKAGING (10)

FEATURES: SENCORE DA795 DIGIPRO DIGITAL AUDIO ANALYZER THAT IS NEW IN A OPEN CASE.
INCLUDES:

POWER CORD, POWER SUPPY
SOUND PRO CD W/ SOFTWAREA AND UTILITIES ON IT

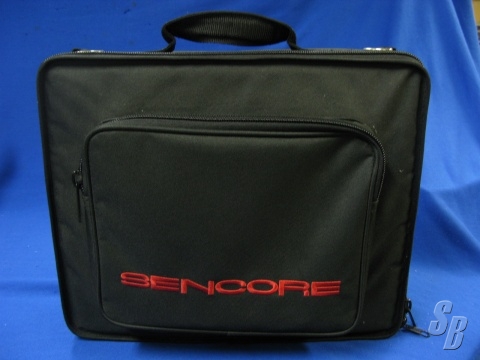

BLACK CARRYING CASE
9PIN MALE TO FEMALE CABLE (RS-232 SERIAL CABLE)
3 PIN MALE TO FEMAL XLR LOW NOISE MICROPHONE CABLE
THE DIGIPRO DIGITAL AUDIO ANALYZER ANALYZES ANY AES/EBU OR S/PDIF 2CH DIGITAL AUDIO SIGNAL, AND GENERATES LOW-NOISE DIGITAL TEST SIGNALS, ALL AT UP TO 24 BIT/96K SAMPLE RATE RESOLUTION. DIGITAL AUDIO ANALYSIS FEATURES AND FUNCTIONALITY NORMALLY FOUND ONLY ON EXPENSIVE BENCH TEST EQUIPMENT.

THE DIGIPRO HAS ALL THE CONNECTIONS YOU'LL NEED - TWO SETS OF AES/EBU AND SP/DIF INPUTS, INCLUDING TOSLINK AND ADAT, PLUS WORD CLOCK IN. DIGITAL OUTPUTS, INCLUDING AES/EBU, SP/DIF, AND TOSLINK/ADAT, AND WORD CLOCK OUT. ANALOG STEREO HEADPHONE AND UNBALANCED MONO ANALOG OUTPUTS. ADAT SYNC AND RS-232 SERIAL FOR COMPUTER INTERFACING.

FEATURES:

BITSTREAM ANALYZER ANALYZES DIGITAL STREAM CHARACTERISTICS TO CHECK ACTUAL WORD LENGTH AND SAMPLE RATE, BIT ACTIVITY, HEADER INFORMATION, FLAG ERRORS AND LOW VOLTAGE
TRANSPARENCY TEST VERIFIES THAT A DEVICE PASSES DIGITAL AUDIO TEST WAVEFORMS WITHOUT ERRORS, USING EITHER SYNCHRONOUS OR ASYNCHRONOUS TEST
LOCK TEST TESTS WHETHER TWO DIGITAL DATA OR CLOCK SIGNALS ARE LOCKED (TO <1PPM)
BITSCOPE SHOWS DISTORTION, NOISE OR JITTER ON AN S/D OR X-Y SCOPE, AND ALSO APPLIES THE RESULTS TO THE INTERNAL SPEAKER, HEADPHONES AND LINE OUTPUT
LATENCY TEST CHECKS THE SIGNAL DELAY THROUGH A DEVICE WITH A DIGITAL DEVICE INPUT, AND EITHER DIGITAL OR ANALOG DEVICE OUTPUT
DIGITAL WATCHDOG CAPTURES SIGNAL ERRORS FOR A TEST PERIOD AND GRAPHS THE ERRORS
JITTER METER TESTS RMS INTERFACE JITTER ON A DIGITAL SIGNAL (TO 150PS) OR CLOCK (TO 35PS), AS REFERENCED TO AN INTERNAL CRYSTAL OR EXTERNAL MASTER CLOCK
CLOCK/SAMPLE COUNTER MEASURES ACTUAL DIGITAL SAMPLE RATE, WORD CLOCK AND SUPERCLOCK FREQUENCIES
DISTORTION METER MEASURES THD+N (TOTAL HARMONIC DISTORTION & NOISE) AND MORE!
THE DA795 ALLOWS YOU TO ANALYZE ANY STEREO NON-ENCODED DIGITAL AUDIO SIGNAL, AND GENERATE LOW-NOISE DIGITAL TEST SIGNALS. SUPPORTED DIGITAL FORMATS INCLUDE AES/EBU, S/PDIF, TOSLINK, AND ADAT, AT BIT DEPTHS UP TO 24 BITS AND SAMPLE RATES TO 96 KHZ.



EXTRAS: N/A

MODIFICATIONS: N/A

HISTORY: N/A

COMMENTS: N/A

THIS UNIT WAS NEVER TOURED

Additional Details
ID#: 59727
Listing Type:
Standard
Model: DA795
Manufacturer: GENERIC
Condition: LIKE NEW IN ORIGINAL PACKAGING (10)
Shipping Info: 18.00 lbs., 24X18X13
Seller's Location: NJ, USA
Updated: January 30, 2012
M.S.R.P.: $0.00
Asking Price: SOLD
