ID # 85061 CURRENT CATEGORY - VIDEO LED WALLS
CHAUVET MVP TA8 CURVE VIDEO WALL 42 PANELS, VIP, SIGNAL PROCESSOR. 10'X16' WALL
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on November 07, 2015 - Viewed 112 times
Click on thumbnail to enlarge
Asking Price:
SOLD
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
CHAUVET MVP TA8 (YOM: 2013) (S#: TBD) SUPERB (8-9)
FEATURES:
THIS LISTING IS FOR THE ENTIRE WALL. PLEASE INQUIRE IF INTERESTED IN INDIVIDUAL PANELS.

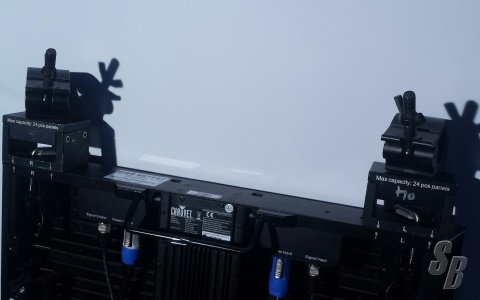

COMES WITH 42 PANELS IN ROADCASES, 2 VIP DRIVERS, SIGNAL PROCESSOR, AND 12 LEFT AND 12 RIGHT HANGING CLAMPS. COMES WITH ALL POWERCON AND ETHERNET CABLES REQUIRED TO BUILD MAX 10'X16' WALL.

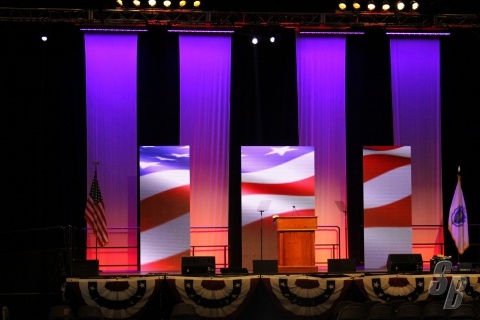

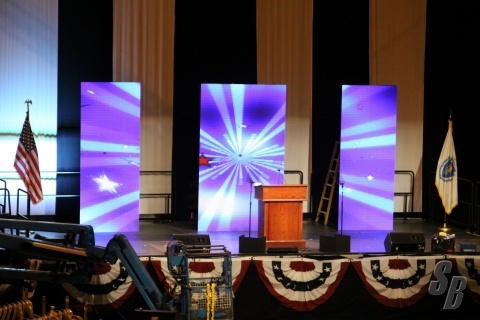

MANUFACTURED MAY 2013. IN USE FOR ABOUT A YEAR FOR CORPORATE AND POLITICAL EVENTS.
PANEL SPECS
PIXEL PITCH: 8.33 MM

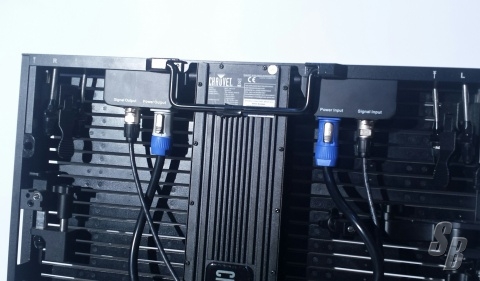

COMPATIBLE MOUNTING OPTIONS: MVP™ TA CURVE RIGGING KITS (TRUSS MOUNTING), OR M10 BOLT/CLAMP (REAR MOUNTING)
PIXELS/SCREEN: 72 X 72 (5,184 TOTAL)
PIXEL DENSITY: 14,400/M2
TRANSPARENCY: 12.5%
DISPLAY RATE: 720 HZ
LIGHT SOURCE: TRI-COLOR SMD 3528 LEDS 50,000 HRS
COLOR WAVELENGTHS: RED: 622~627 NM GREEN: 520~525 NM BLUE: 465~470 NM
HOUSING MATERIAL: ALUMINUM ALLOY
VIEWING ANGLE: 140°
CURVING ANGLE: ± 18°
ILLUMINANCE: 4,800 NITS
IP RATING: IP54
POWER LINKING: 9 UNITS @ 120 VAC; 15 UNITS @ 208 VAC; 16 UNITS @ 230 VAC
INPUT VOLTAGE: AUTO-RANGING 100-240 VAC 50/60 HZ
POWER AND CURRENT: 231 W, 1.92 A @ 120 V 60 HZ
POWER AND CURRENT: 238 W, 1.17 A @ 208 V 60 HZ
POWER AND CURRENT: 247 W, 1.12 A @ 230 V 50 HZ
WEIGHT: 27 LBS (12.25 KG)
SIZE: 23.6 X 23.6 X 2.6 IN (600 X 600 X 66 MM)
APPROVALS: CE
VIP DRIVER

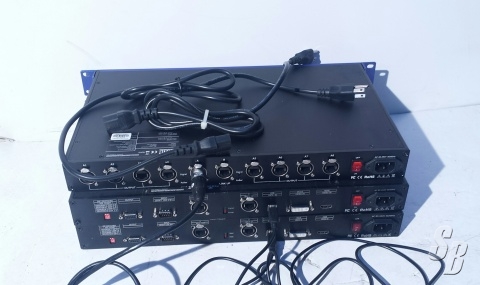

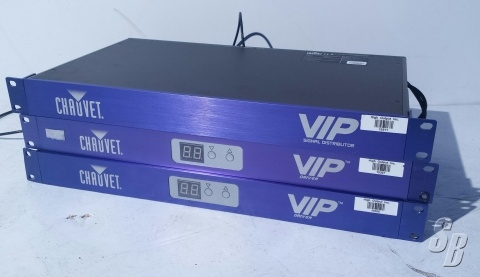

VIP DRIVER ACTS AS THE INTERFACE BETWEEN A DVI OR HDMI VIDEO SOURCE AND ALL MVP AND PVP VIDEO PANELS WHEN USING THE CHAUVET LED STUDIO SOFTWARE 9FREE WITH ANY MVP OR PVP VIDEO SYSTEM). RACK-MOUNTABLE, IT HAS TWO ETHERCON® OUTPUTS FOR ANY CONFIGURATION OF PANELS. THIS POWERFUL SYSTEM DRIVES UP TO 1280 X 1024 PIXELS. THE VIP DRIVER PERMITS MEDIA PLAYBACK, CONFIGURATION, ADDRESSING AND REMOTE POWER CONTROL OF THE PANELS. ORDERED SEPARATELY.
MVP TA8 CURVE RIG KIT ALLOWS THE HANGING OF THE MVP TA8 CURVE VIDEO PANELS FROM TRUSS OR PIPE. LEFT AND RIGHT KITS ORDERED SEPARATELY.

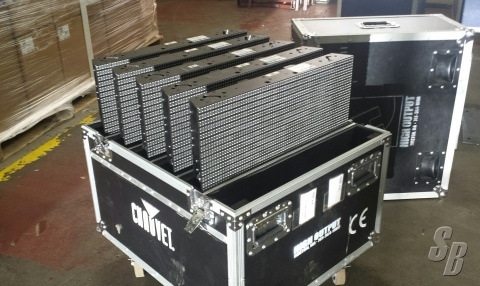

EXTRAS: COMES WITH ROAD CASES, CABLES, HANGING CLAMPS
MODIFICATIONS: NO MODIFICATIONS
HISTORY: USED LIGHTLY FOR CORPORATE AND POLITICAL EVENTS
COMMENTS: SERVICED BY CHAUVET RETAILER
THIS UNIT WAS NEVER TOURED
| Additional Details | |
| ID#: | 85061 |
| Listing Type: |
Standard
|
| Model: | MVP TA8 |
| Manufacturer: | CHAUVET |
| Condition: | SUPERB (8-9) |
| Shipping Info: | 1861.00 lbs., |
| Seller's Location: | MA, USA |
| Updated: | November 07, 2015 |
| M.S.R.P.: | $0.00 |
| Asking Price: | SOLD |
