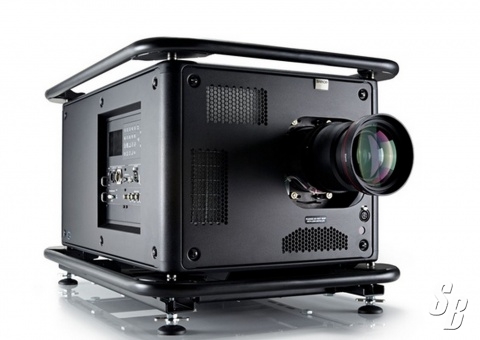

BARCO HDX W20 FLEX W/ LENS AND TOURING KIT, 20,000 LUMENS, WUXGA, 3-CHIP DLP PROJECTOR
[PRICED PER UNIT - 0 AVAILABLE AT TIME OF LISTING]
Listing last update on April 18, 2015 - Viewed 238 times

BARCO HDX W20 FLEX W/ LENS & TOURING KIT

PROJECTOR TYPE WUXGA 3-CHIP DLP DIGITAL PROJECTOR
TECHNOLOGY 0.96" DMD X 3
RESOLUTION 1,920 X 1,200
LIGHT OUTPUT 20,000 CENTER LUMENS / 18,500 ANSI LUMENS
CONTRAST RATIO 1,850:1 (STANDARD) - 2,400:1 (HIGH CONTRAST MODE)
BRIGHTNESS UNIFORMITY 90%
ASPECT RATIO 16:10
SCENERGIX HORIZONTAL AND VERTICAL EDGE BLENDING
LENS TYPE TLD +
LENS RANGE 0.73:1 ; 1.2:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
OPTICAL LENS SHIFT VERTICAL: -10% TO + 110% / HORIZONTAL: +/-30% ON ZOOM LENSES (MEMORIZED)
COLOR CORRECTION P7
LAMPS 2.5 KW XENON
LAMP LIFETIME (TYPICAL) 1,000 HOURS
TRANSPORT WITH LAMP YES
LAMP HOUSE, QUICK REPLACE YES
CUSTOMER BULB REPLACE YES
LAMP WARRANTY (FIELD REPLACE/ FACTORY REPLACE) 90 DAYS, 500 HOURS/PRO RATA 750 HOURS
SEALED DLP CORE STANDARD
OPTICAL DOWSER STANDARD
PICTURE-IN-PICTURE TWO SOURCES SIMULTANEOUSLY
ORIENTATION TABLE - CEILING - SIDE (PORTRAIT) - VERTICAL
DMX 512 STANDARD
WARP DIRECT ADJUST OSD + TOOLSET
INTEGRATED WEB SERVER YES
CLO (CONSTANT LIGHT OUTPUT) STANDARD
3D ACTIVE EYEWEAR (OPTIONAL), PASSIVE INFITEC (OPTIONAL), PASSIVE CIRCULAR (OPTIONAL), TRIPLE FLASH UP TO 200HZ
INPUTS DVI- I (HDCP INCLUDING ANALOG RGB YUV) / SDI/HDSDI/DUAL HDSDI/3G/BARCOLINK
OPTIONAL INPUTS 5-BNC RGBHV ( RGBS/RGSB, YUV CS/SOY, COMPOSITE VIDEO, S-VIDEO); DVI - I (HDCP INCLUDING ANALOG RGB YUV) + BARCOLINK/SDI/HDSDI/DUAL HDSDI/3G; 3D ACTIVE INPUT (HDMI/ DISPLAYPORT) FEAT. SENSIO 3D
INPUT RESOLUTIONS FROM NTSC UP TO QXGA (2,048 X 1,536)
MAX. PIXEL CLOCK 200 MHZ
SOFTWARE TOOLS PROJECTION TOOLSET + ANDROID APP
CONTROL XLR WIRED + IR, RS232, WIFI, GSM (OPT)
NETWORK CONNECTION 10/100 BASE-T, RJ-45 CONN, WIFI (OPTIONAL)
AC POWER 200-240 V / 50-60 HZ
POWER CONSUMPTION 2,850 W / STBY<8W
NOISE LEVEL (TYPICAL AT 25ï½°C/77ï½°F) 53 DB (A)
OPERATING TEMPERATURE 0 ~ 40ï½°C / 32 ~ 104ï½°F
OPERATION HUMIDITY NO CONDENS 0% - 80%
DISSIPATION BTU MAX. 9,725 BTU/H
DIMENSIONS (WXLXH) 475 X 725 X 382 MM (18.70" X 28.54" X 14.96")
WEIGHT 50KG (110LBS)
SHIPPING DIMENSIONS (LXWXH) 900 X 650 X 560 MM (35.43" X 25.59" X 22.04")
STANDARD ACCESSORIES POWER CORD; WIRELESS/XLR WIRED RUGGED REMOTE CONTROL
CERTIFICATIONS COMPLIANT WITH UL60950-1 AND EN60950-1, COMPLIES WITH FCC RULES & REGULATIONS, PART 15 CLASS A AND CE EN55022 CLASS A, ROHS

NEW WITH MANUFACTURER'S WARRANTY, FOB, TX.

HTTP://WWW.BARCO.COM/EN/PRODUCTS-SOLUTIONS/PROJECTORS/LARGE-VENUE-PROJECTORS/20000-LUMENS-WUXGA-3-CHIP-DLP-PROJECTOR-WITH-LIGHT-ON-DEMAND-OPTION.ASPX?TAB=GALLERY

PLEASE NOTE: WHEN ORDERING A B-STOCK OR REP OR DEMO ITEM, UPON SOUNDBROKER.COM ISSUING YOU OUR INVOICE, WE NEED TO RECEIVE YOUR PAYMENT IMMEDIATELY IN ORDER TO INSURE THAT WE WILL BE ABLE TO COMPLETE THIS ORDER. WE ARE PREPARED TO PLACE YOUR ORDER WITH THE MANUFACTURER UPON RECEIPT OF YOUR PAYMENT, HOWEVER BECAUSE THERE IS A LIMITED AMOUNT THIS TYPE OF PRODUCT AND IT IS ON A FIRST COME FIRST SERVE BASIS, WE RESERVE THE RIGHT TO REFUND YOUR TOTAL PAYMENT IN THE UNLIKELY EVENT, THAT THE ITEM IS NO LONGER AVAILABLE AT THE TIME WE PLACE THE ORDER ON YOUR BEHALF.
