For Sale: BARCO MATRIXPRO-II 16X16 SDI W/PNL
[PRICED PER UNIT - 0 AVAILABLE AT TIME OF LISTING]
Listing last update on September 21, 2020 - Viewed 357 times

BARCO MATRIXPRO-II 16X16 SDI W/PNL
R9004660

BARCO.COM FULL FEATURES & INFO

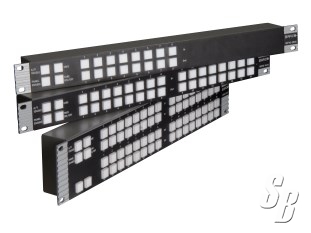

BARCO'S MATRIXPRO-II SD/HD/3G-SDI SERIES OFFERS THREE MODELS OF HIGH-SPEED SERIAL ROUTERS: 8X8, 16X16 AND 32X32. ALL THREE MODELS ARE COMPACT, HAVE AN EXTREMELY SLIM PROFILE, ARE COST-EFFECTIVE, AND PROVIDE AN EXCELLENT SOLUTION FOR APPLICATIONS WHERE BUDGET AND SPACE ARE AT PREMIUM.
FEATURING GENLOCK INPUT

ALL ROUTERS SUPPORT SDI FORMATS FROM SD FORMATS TO 3G/HD. THEIR SUPERIOR DESIGN ALLOWS FOR IMAGE SWITCHING AND SIGNAL DISTRIBUTION WITHOUT ARTIFACTS. THEY ALL FEATURE A GENLOCK INPUT WITH LOOP THROUGH, ENSURING THAT ALL SWITCHING IS SYNCHRONIZED WITH THE HOUSE SYNC.
FLEXIBLE CONTROL

THE ROUTERS CAN BE CONTROLLED FROM THE FRONT PANEL, RS-232, ETHERNET CONNECTIONS OR THE ENCORE AND SCREENPRO-II PRESENTATION SYSTEMS. BARCO'S MATRIXPRO-II SDI ROUTER SERIES ALLOWS A SINGLE UNIT TO BE SUBDIVIDED INTO MULTIPLE LAYERS.

SUPPORTED SIGNAL FORMATS:
DVB-ASI, SMPTE 259M, SMPTE 292M, SMPTE 424M; 270M BPS 2.97GBPS; 2K, 2048X1556/23.98 AND 24

INPUTS:
STANDARD: SMPTE 259M / SMPTE 292M / SMPTE 424M
DATA RATE: 270MBPS 1.485GBPS / 2.97GBPS
CONNECTOR: 75 OHM BNC FEMALE
IMPEDANCE: 75 OHM NOMINAL
RETURN LOSS: > 15DB (5MHZ-1.485GHZ); > 10DB (1.5GHZ 3GHZ)

CABLE EQUALIZATION:
AUTOMATIC UP TO 70M @ 2.97GBPS, TYPICAL BELDEN 1694A AUTOMATIC UP TO 100M @ 1.485GBPS, TYPICAL BELDEN 1694A
AUTOMATIC UP TO 300M @ 270MBPS, TYPICAL BELDEN 8281

OUTPUTS:
CONNECTOR: 75 OHM BNC FEMALE
IMPEDANCE: 75 OHM NOMINAL
RETURN LOSS: > 15DB (5MHZ-1.485GHZ); > 10DB (1.5GHZ 3GHZ)
SIGNAL LEVEL: 800MVP-P ï½±10%

RISE/FALL TIME:
- 20% - 80%
- SD LIMIT: 0.4NS 1.5NS, < 0.5NS RISE/FALL VARIATION;
- HD LIMIT: < 270PS, < 100PS RISE/FALL VARIATION;
- 3G-HD LIMIT: < 135PS, < 50PS RISE/FALL VARIATION
AMPLITUDE OVERSHOOT: < 10%
SIGNAL POLARITY: NON-INVERTING ELECTRICAL WITH RESPECT TO INPUTS

SIGNAL SPEED:
TIMING JITTER: SD: < 0.2 UI; 3G-HD/HD: <1UI
ALIGNMENT JITTER: SD: <0.2UI; 3G-HD/HD: <0.2UI


LIMITED FULL MANUFACTURER'S WARRANTY

B-STOCK OR REP OR DEMO SAMPLES CAN HAVE NUMEROUS MEANINGS BUT FOR THE MOST PART IT IS A NEW ITEM FROM THE MANUFACTURER WITH FULL WARRANTY. IT MIGHT HAVE EITHER MINOR COSMETIC DEFECTS NOT VISIBLE FROM MORE THAN 5 FEET AWAY, OR IS A DEMO OR TRADE SHOW SAMPLE, OR THE BOX WAS OPENED FOR INSPECTION (DEMO OR REP SAMPLES USUALLY SHOW A LITTLE MORE USE). IT IS FULLY FUNCTIONAL AND IN 100% WORKING ORDER. IN SHORT, IT IS A GREAT WAY TO SAVE MONEY.

PLEASE NOTE: WHEN ORDERING A B-STOCK OR REP OR DEMO ITEM, UPON SOUNDBROKER.COM ISSUING YOU OUR INVOICE, WE NEED TO RECEIVE YOUR PAYMENT IMMEDIATELY IN ORDER TO ENSURE THAT WE WILL BE ABLE TO COMPLETE THIS ORDER. WE ARE PREPARED TO PLACE YOUR ORDER WITH THE MANUFACTURER UPON RECEIPT OF YOUR PAYMENT, HOWEVER BECAUSE THERE IS A LIMITED AMOUNT THIS TYPE OF PRODUCT AND IT IS ON A FIRST COME FIRST SERVE BASIS, WE RESERVE THE RIGHT TO REFUND YOUR TOTAL PAYMENT IN THE UNLIKELY EVENT, THAT THE ITEM IS NO LONGER AVAILABLE AT THE TIME WE PLACE THE ORDER ON YOUR BEHALF.
