CONRAC 2620C9 (?) (S#: TBD) FAIR (5-6)
[PRICED PER UNIT - 8 AVAILABLE AT TIME OF LISTING]
Listing last update on March 01, 2006 - Viewed 204 times

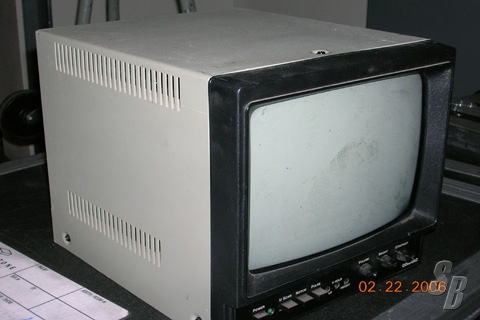

CONRAC 2620C9 (?) (S#: TBD) FAIR (5-6)

MODEL 2640 9-INCH MONOCHROME MONITOR (CRT)

THE MODEL 2640 PROVIDES A CRISP, STABLE AND DISTORTION FREE DISPLAY FOR CRITICAL EVALUATION OF IMAGES GENERATED BY MEDICAL DIAGNOSTIC EQUIPMENT AND OTHER DEMANDING APPLICATIONS SUCH AS SURVEILLANCE AND FLIR IMAGING. FEATURES INCLUDE METAL CABINET, SELECTABLE INVERSE VIDEO AND EXTENSIVE OPTIONS INCLUDING: LINE RATE, CRT PHOSPHOR, ASPECT RATIO, INPUT POWER AND RUGGEDIZATION.

--------------------------------------------------------------------------------

SPECIFICATIONS :

CRT / STANDARD FORMAT 9" DIAGONAL CRT / 4:3 ASPECT RATIO OVERSCAN STANDARD PHOSPHOR P45 (WHITE), POLISHED RESOLUTION > 800 TV LINES @ 525/60 SCAN RATE (15.75 KHZ) BANDWIDTH 30 MHZ FREQUENCY (FIXED) - STANDARD HORIZONTAL - 15.75 KHZ (525/60) POWER - STANDARD 115 VAC 50/60 HZ ｱ 10% POWER CONSUMPTION 40 W NOMINAL USER CONTROLS / ADJUSTMENTS FRONT: BRIGHTNESS, CONTRAST, INVERSE VIDEO, H. HOLD, V. HOLD, HEIGHT, WHITE LEVEL (INVERT MODE), POWER REAR: INT/EXT SYNC, HI / 75Ω TERMINATION, FOCUS

SIGNAL CHARACTERISTICS COMPOSITE VIDEO: 0.50 TO 2.0VPP, 1.0V NOMINAL

NON-COMPOSITE: 0.35 TO 1.7VPP, 0.7V NOMINAL

EXTERNAL SYNC: 1.0 TO 8.0VPP, 4.0V NOMINAL

VIDEO INPUT BNC LOOP-THROUGH VIDEO AND SYNC, VTR DIMENSIONS 9"H X 8.7"W X 10.7"D WEIGHT < 12 LBS (5.5 KG) SHIPPING WEIGHT 14 LBS (6.4 KG) TEMPERATURE 0ï½° TO 50ï½°C, OPERATING -20ï½° TO 70ï½°C, NON-OPERATING HUMIDITY 10% TO 90% RH, NON-CONDENSING ALTITUDE 10,000 FT (3,000 M), OPERATING WARRANTY 1 YEAR PARTS AND LABOR OPTIONS ASPECT RATIO: 1:1, 4:3 UNDERSCAN

LINE RATE: 625/50, 675/60 TO 1167/60 INPUT POWER: 230 VAC, 12VDC, 18-36 VDC, 400HZ CRT PHOSPHOR: P4, P31, P39 RUGGEDIZATION ACCESSORIES 19-INCH RACK (2R, RC, RBR, RBL, RXR)

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

-

NO MODIFICATIONS

USED BY A NATIONAL CORPERATE EVENTS COMPANY.

IN FAIR CONDITION. CASING SCRATCHED UP FROM BEING IN A RACK.

THIS UNIT WAS NEVER TOURED
